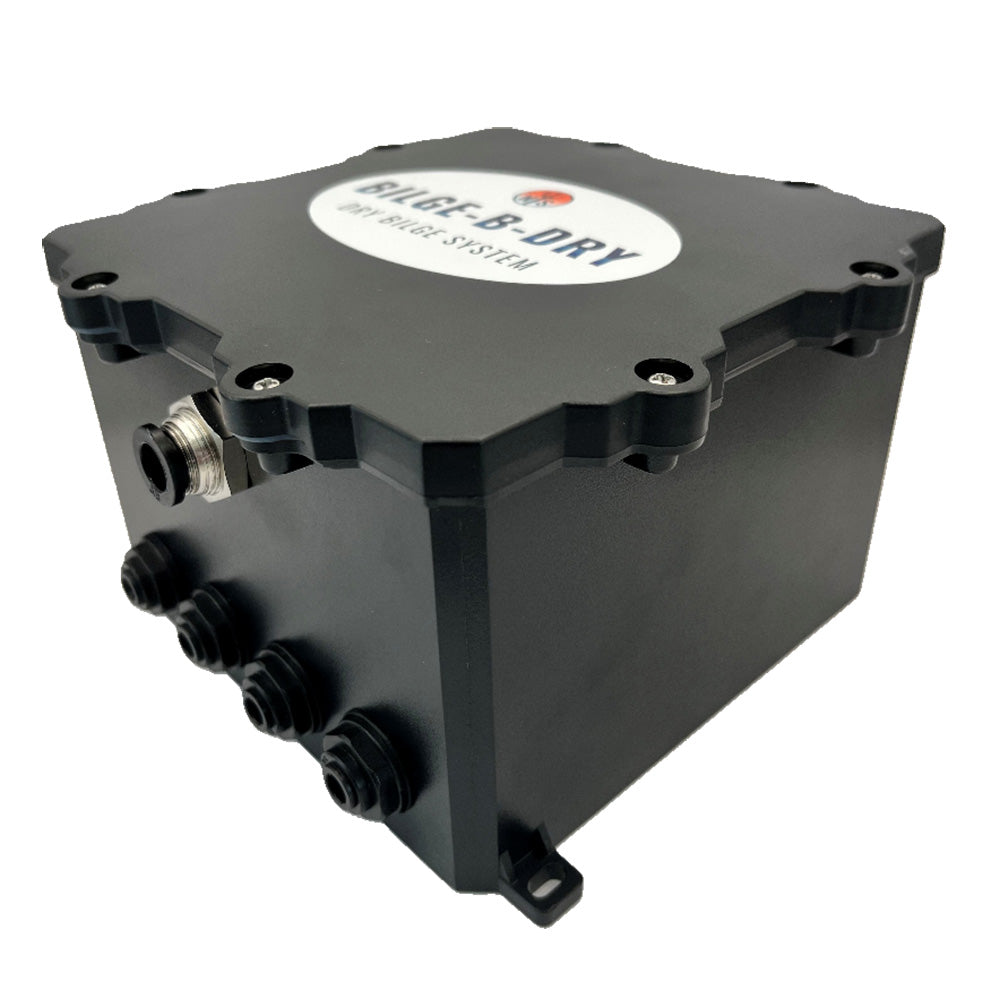

BILGE-B-DRY Quad Pump 12VDC - Smart Dry Bilge System for Boats

Quad Pump - 12VDC

BILGE-B-DRY is the worlds only Smart Device enabled Dry Bilge System on the market!

Enjoy simple installation and customized scheduling control at your fingertips with our Mobile App for Apple or Android devices. Due to size and placement, traditional bilge pumps cannot remove the last few inches of excess water accumulating in your bilge. With BILGE-B-DRY, you can finally eliminate cabin odors, reduce mold or corrosion, and protect your electrical wiring by removing every drop of water from your bilge. Your cabin will be odor-free, and your bilge will be the driest and cleanest at the marina!

Why choose BILGE-B-DRY Take advantage of:

• The worlds ONLY Smart Device enabled Dry Bilge System on the market with customizable operation!
• An efficient, reliable method to remove excess bilge water on all boats, including stepped-hull boats where water sits forward of the step. Use BILGE-B-DRY after washdown, heavy rain or sea spray accumulation, rough seas, untreated leaks, etc.
• Heavy-duty pump enclosure with improved durability, enhanced pump efficiency, and streamlined internal plumbing.
• A choice of four pump configurations in 12vdc or 24vdc for optimal water removal.
• The pump diaphragm design can run dry for extended periods without damage.

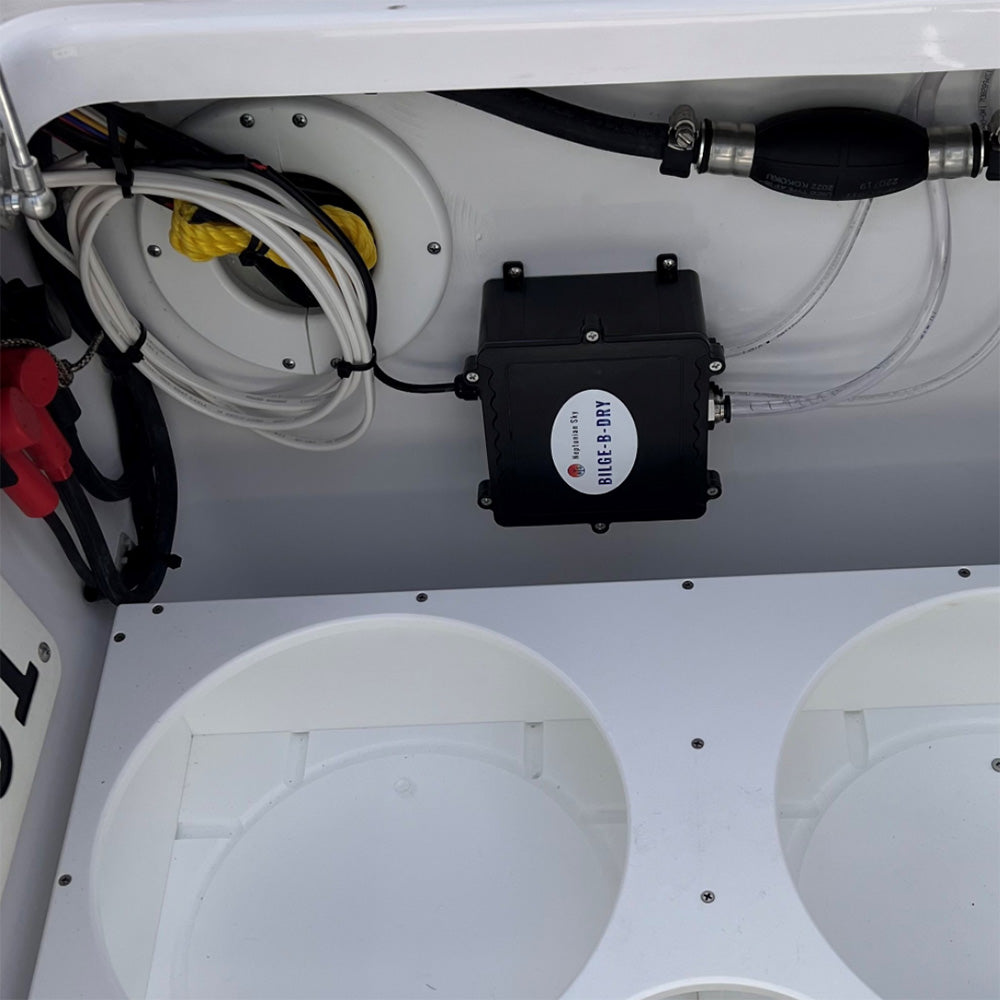

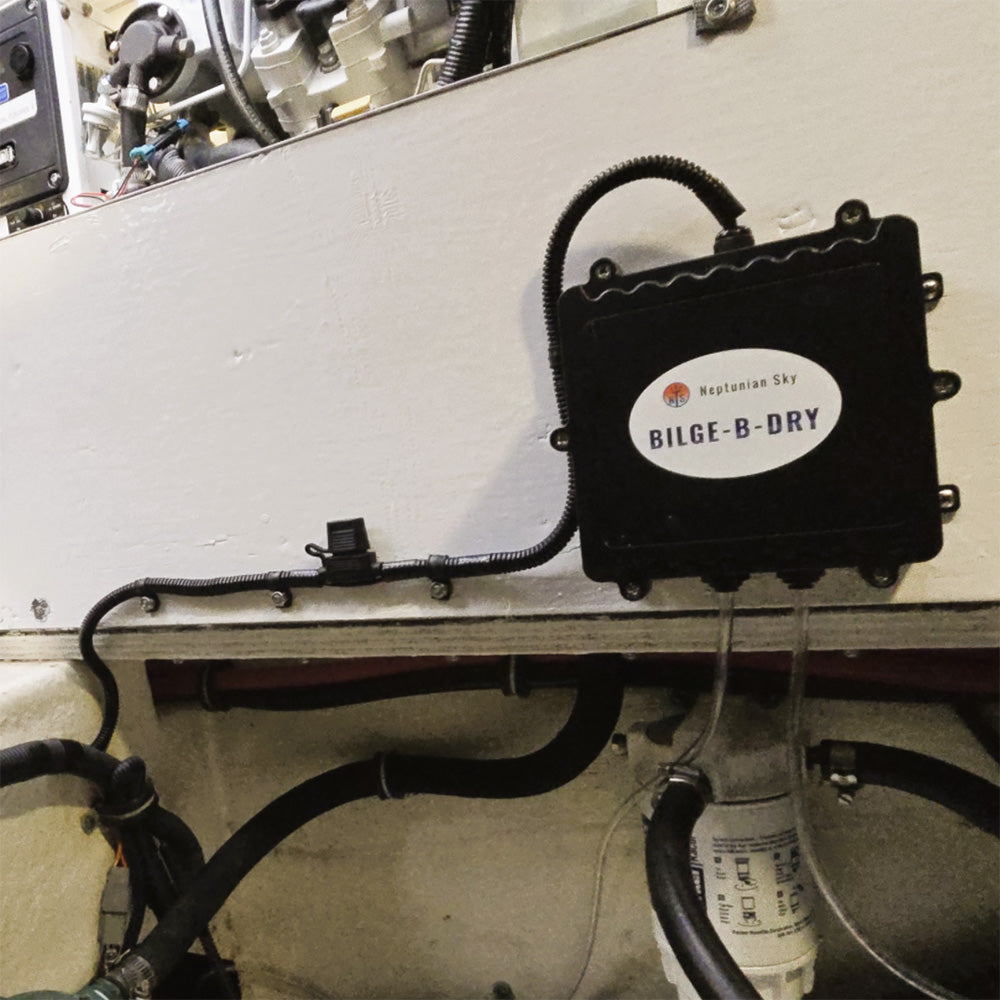

• A compact pump design for easy installation in tight or awkward spaces in any orientation (horizontal or vertical).
• Customized pump scheduling with the free Mobile App for Apple and Android devices.

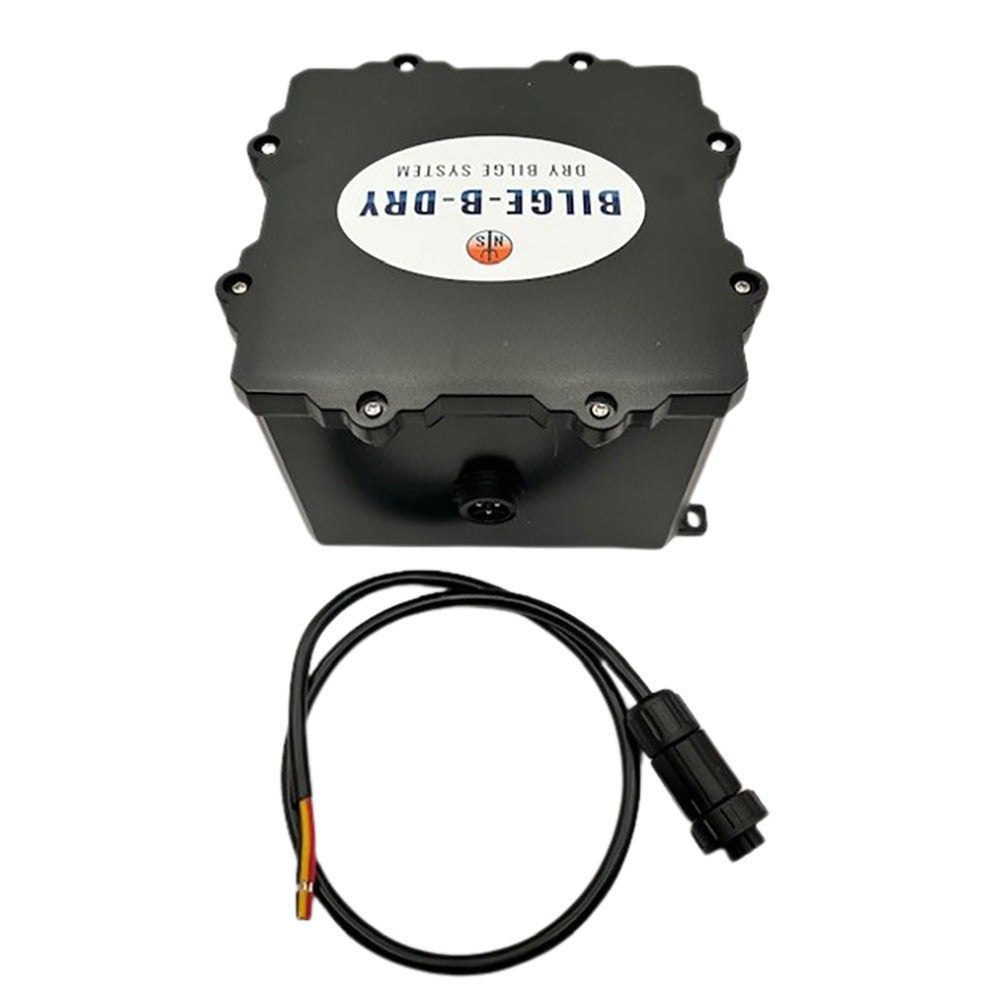

• Quick disconnect wiring harness with optional connection to a helm or float switch.
• An environmentally friendly low-profile bilge water pickup design with a replaceable filter system.
• Configured to automatically cycle for 2 minutes every 6 hours if you decline Smart Device connectivity.

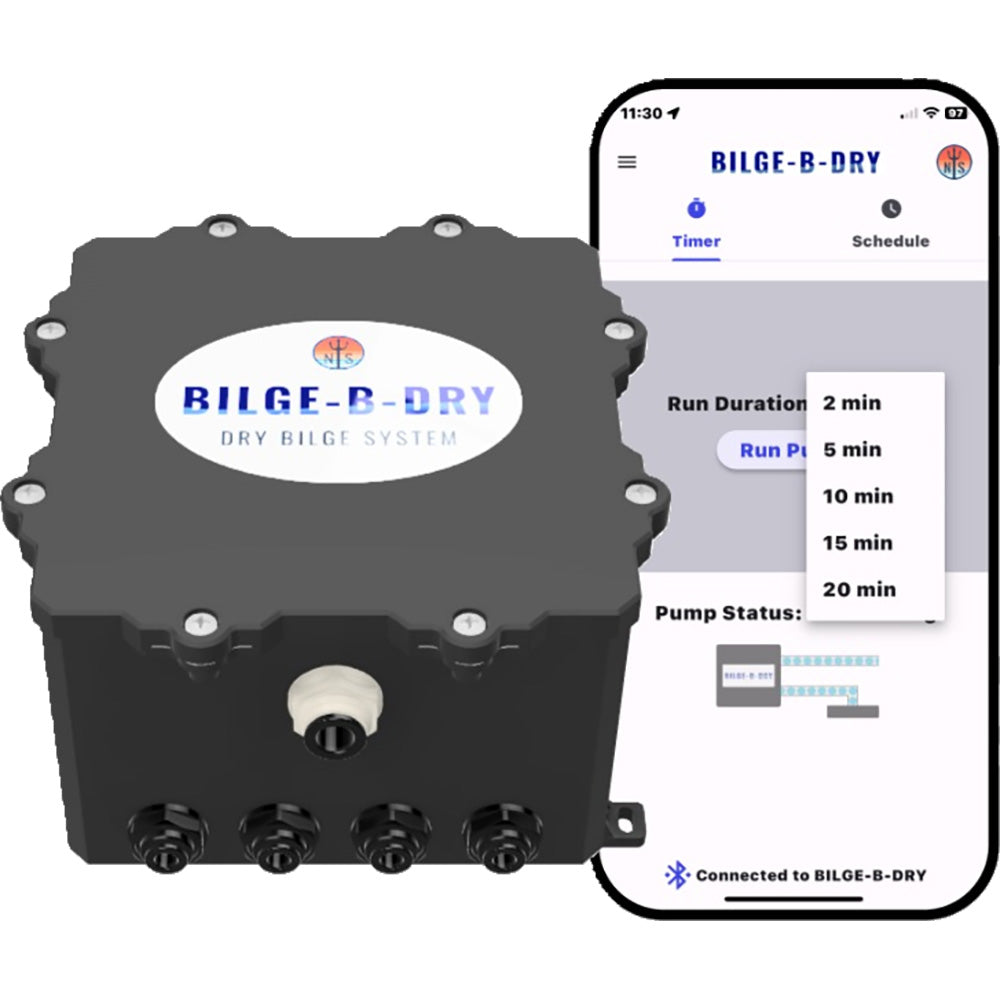

BILGE-B-DRY connects to your Smart Device (if desired) through the free Mobile App on the APPLE GOOGLE PLAY stores. Customizable operation is at your fingertips with two options:

• Run the TIMER option up to 20 minutes after boating in heavy seas or upon washdown.
• Choose the SCHEDULE option for five customizable run times during the day, up to 20 minutes. This is a great option if you will be away from your boat for a few weeks.

Example:

With your Smart Device, schedule your BILGE-B-DRY to run at 9:00 AM for three minutes and again at 3:00 PM for two minutes. The schedules will run daily until canceled. If at 8:00 PM you still see water in your bilge, run the on-demand Timer for up to 20 minutes to remove the remaining water.

BBD Quad Pump 12VDC:

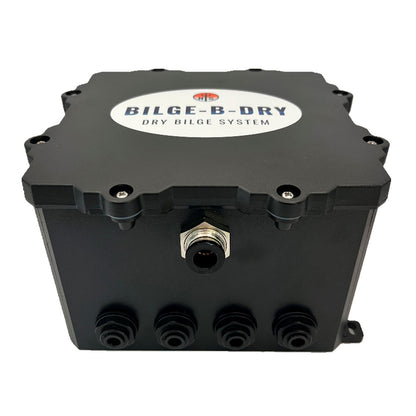

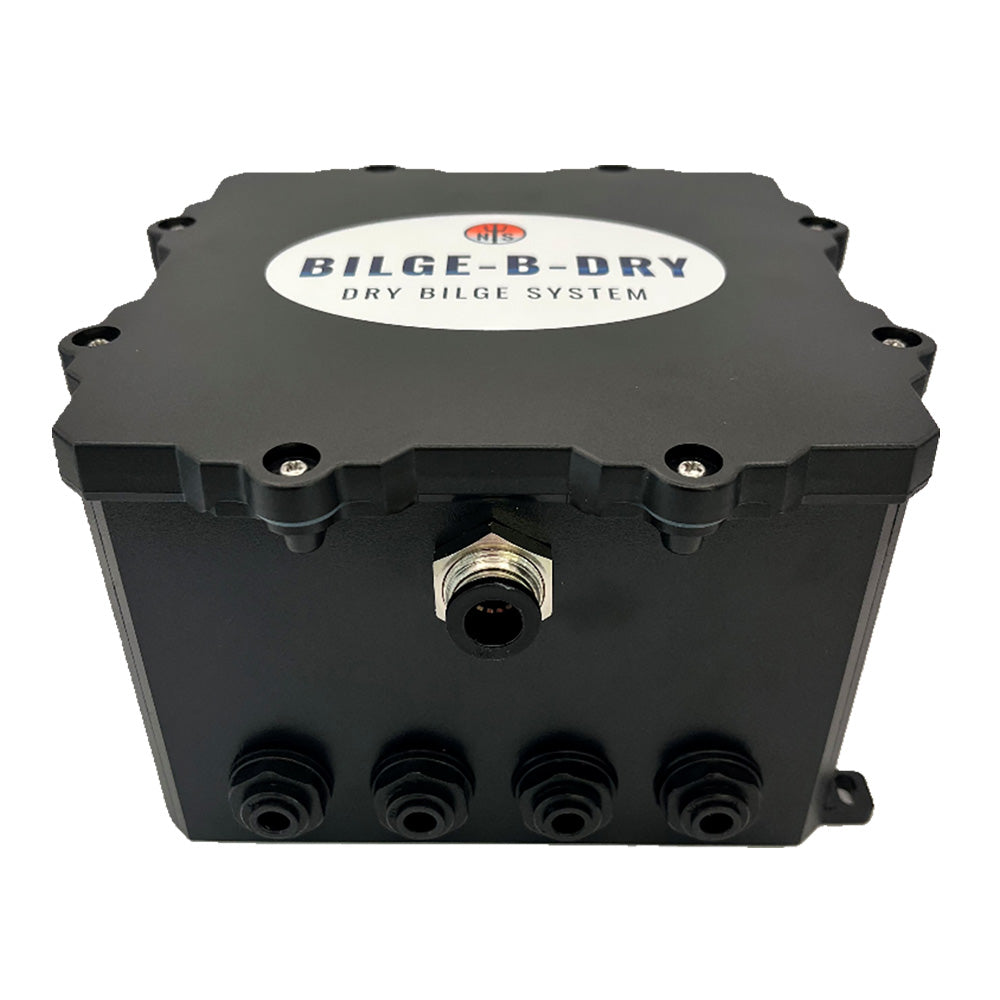

Four motors/diaphragm pumps

20 feet of input tubing provided (for pickup)

6 feet of output tubing provided (for discharge)

Input tubing diameter (PVC or PU) - 1/4 OD

Output tubing diameter (PVC or PU) - 3/8 OD

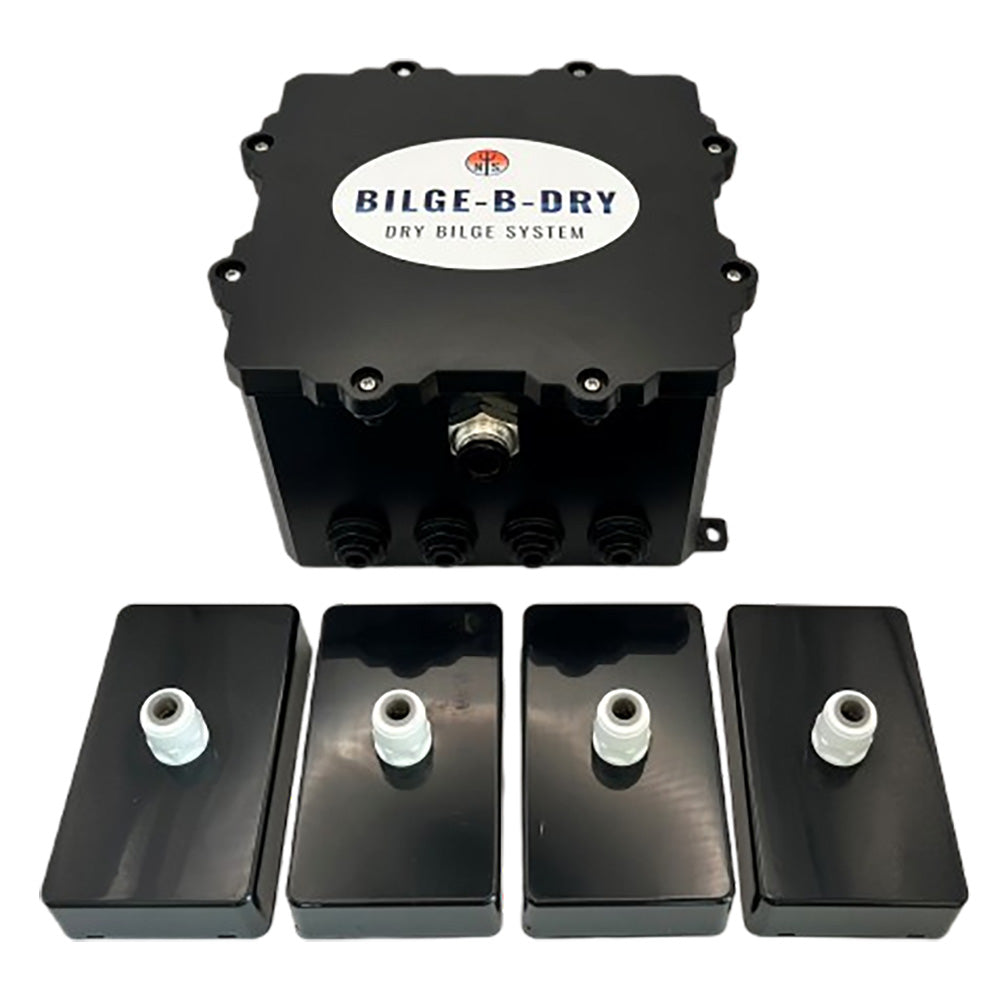

Included with your BILGE-B-DRY purchase are low-profile bilge water pickups. Our uniquely designed low-profile bilge water pickup (bracket sold separately) with a replaceable filter helps reduce the harmful overboard discharge of heavy metals, solids, and petroleum. Place the pickups wherever you wish to remove water, such as the lowest part of your bilge, A/C evaporator, or hard-to-reach compartments. Twenty small holes along the bottom of the pickup provide a debris barrier. The pickups integrated filter contains a proprietary blend of materials to prevent damage to the BILGE-B-DRY pump and to reduce oil discharge, which, unlike other dry bilge systems, eliminates the need for a secondary filter.

For optimum performance of your BILGE-B-DRY unit, replace the low-profile bilge water pickups when the flow rate has decreased. You can choose to replace the filter material or replace the entire pickup. BILGE-B-DRY orders DO NOT INCLUDE the stainless hold-down bracket or inline fuse!

Specifications:

Meets ISO 8846 standards, Section 5, Protection against ignition of surrounding flammable gases.

Power Required:

• 12 VDC (8 14 VDC)
• Max current: 1.4 amps (12 VDC)
• Idle Current: 0.05 amps (12 VDC)

Pump:

• Maximum flow: 1.0 GPM
• Pump head: 10 feet
• Pump suction: 5 (vertical) feet
• Diaphragm design, able to run dry for extended periods without damage
• Life expectancy >1000 hours

Control board:

• Wireless Connectivity
• Life expectancy: 100,000 cycles
• Working temperature: - 40 85 C
• Wi-Fi RF Grant FCC Rule Part 15C

Dimensions (in):

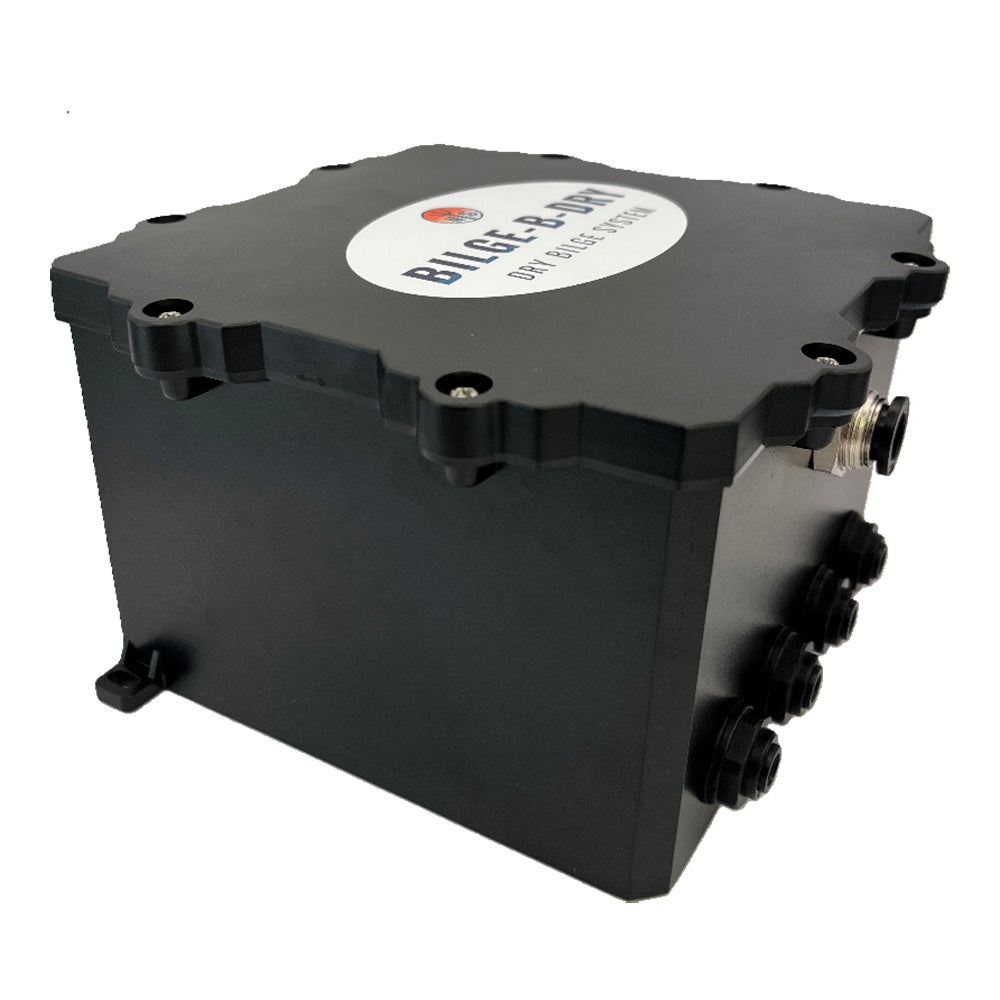

• Enclosure: 4.1 H x 6.8 W x 7 L
• Rectangular Pickup: 0.98 H x 2.4 W x 3.9 L

Dimensions (mm):

• Enclosure: 76 H x 172 W x 177 L
• Rectangular Pickup: 25 H x 60 W x 100 L

Weight

• 2.4 LB (not including tubing, pickup, or accessories)

Tubing:

• Input tubing: 1/4 Outer Diameter
• Output tubing: 3/8 Outer Diameter
• Use Polyvinyl chloride (PVC) or Polyurethane (PU) tubing

• Hardness Shore A 80 or higher

The BILGE-B-DRY Quad Pump 12VDC is an advanced dry bilge system designed to keep your boat's bilge area dry, odor-free, and free of mold or corrosion. As the only smart device-enabled dry bilge system on the market, it offers customizable scheduling and remote control via a free mobile app compatible with Apple and Android devices. This feature allows boat owners to precisely control water removal, whether after heavy rain, washdowns, or rough seas, ensuring maximum efficiency and protection for your vessel.
Constructed with a heavy-duty enclosure and streamlined internal plumbing, the BILGE-B-DRY is built for durability and reliable performance. Its four motors and diaphragm pumps enable a maximum flow rate of 1 gallon per minute, capable of removing excess water from even the most challenging bilge areas. The pump's diaphragm design allows it to operate dry for extended periods without damage, making it suitable for continuous or intermittent use.
The system includes 20 feet of input tubing and 6 feet of output tubing, with a low-profile bilge water pickup featuring a replaceable filter. This filter helps reduce harmful discharges of heavy metals, solids, and petroleum, contributing to environmentally friendly operation. The pickup can be positioned in various locations within the bilge or compartments, offering flexibility in installation. The system also supports optional connection to helm or float switches for automatic operation.
Designed to meet ISO 8846 standards, the BILGE-B-DRY ensures safety against ignition of surrounding flammable gases. It operates on 12VDC with a maximum current of 1.4 amps and weighs approximately 2.4 pounds. The control board, equipped with wireless connectivity, offers an impressive lifespan of up to 100,000 cycles and functions efficiently within temperatures from -40°C to 85°C.
Installation is straightforward, with dimensions optimized for tight spaces, and the system supports both horizontal and vertical orientations. Whether you’re managing routine bilge water or responding to unexpected leaks, the BILGE-B-DRY Quad Pump provides a reliable, environmentally conscious solution to maintain a dry and odor-free boat environment.

Features:

• Smart device-enabled operation with customizable scheduling via free mobile app

• Four motors/diaphragm pumps for efficient water removal up to 1 GPM

• Heavy-duty enclosure with enhanced durability and internal plumbing

• Dry-running diaphragm design prevents damage during extended dry operation

• Compact design suitable for tight or awkward spaces and versatile installation orientation

• Includes 20 feet of input tubing and 6 feet of output tubing for flexible placement

• Low-profile bilge water pickup with replaceable filter to reduce pollutants

• Automatic cycling mode to operate every 6 hours for 2 minutes if disconnected from app

• Supports optional helm or float switch connections for automatic activation

• Meets ISO 8846 safety standards for ignition protection in marine environments
