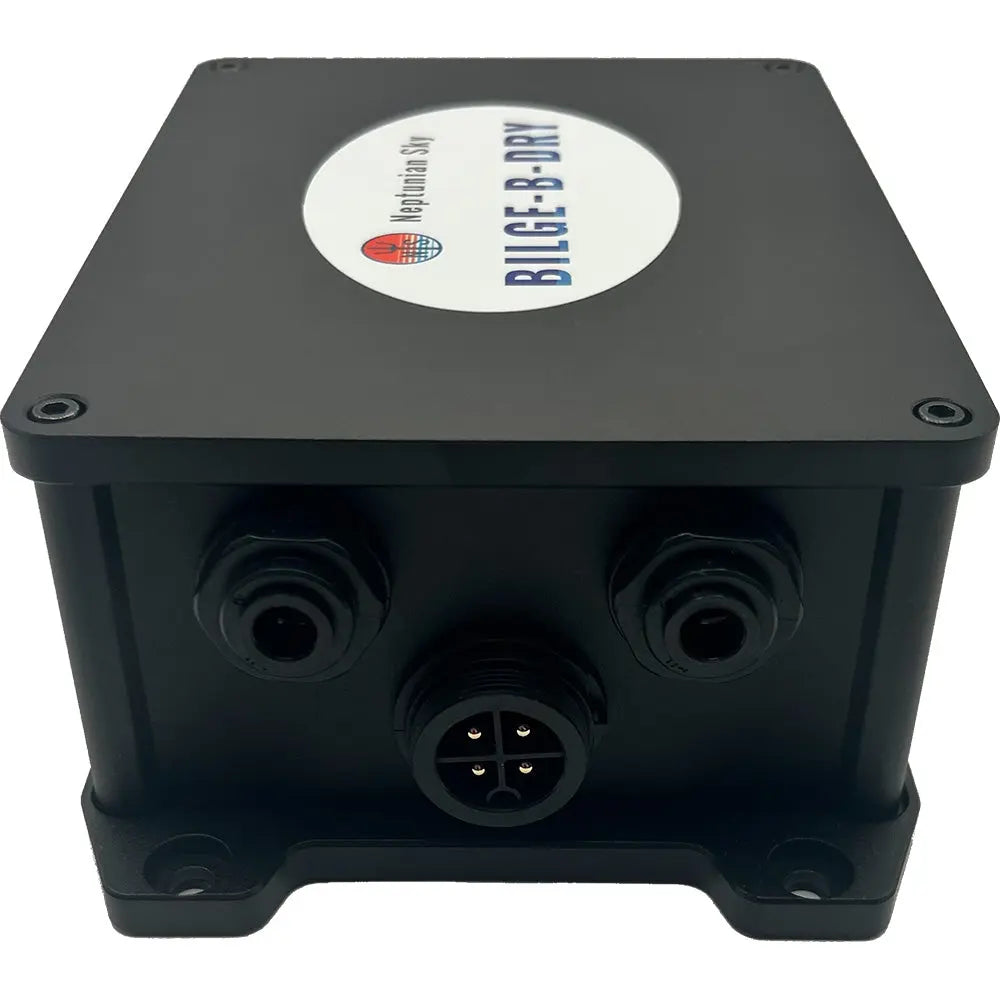

BILGE-B-DRY Single Pump 12VDC Marine Dry Bilge System with Smart Device Control

Single Pump - 12VDC

BILGE-B-DRY is the worlds only Smart Device-enabled Dry Bilge System on the market!

Enjoy simple installation and customized scheduling control at your fingertips with our Mobile App for Apple or Android devices. Due to size and placement, traditional bilge pumps cannot remove the last few inches of excess water accumulating in your bilge. With BILGE-B-DRY, you can finally eliminate cabin odors, reduce mold or corrosion, and protect your electrical wiring by removing every drop of water from your bilge. Your cabin will be odor-free, and your bilge will be the driest and cleanest at the marina!

Why choose BILGE-B-DRY Take advantage of:

• The worlds ONLY Smart Device-enabled Dry Bilge System on the market with customizable operation!
• An efficient, reliable method to remove excess bilge water on all boats, including stepped-hull boats where water sits forward of the step. Use BILGE-B-DRY after washdown, heavy rain or sea spray accumulation, rough seas, untreated leaks, etc.
• A choice of four pump configurations in 12vdc or 24vdc for optimal water removal.
• Pump diaphragm design can run dry for extended periods of time without damage.

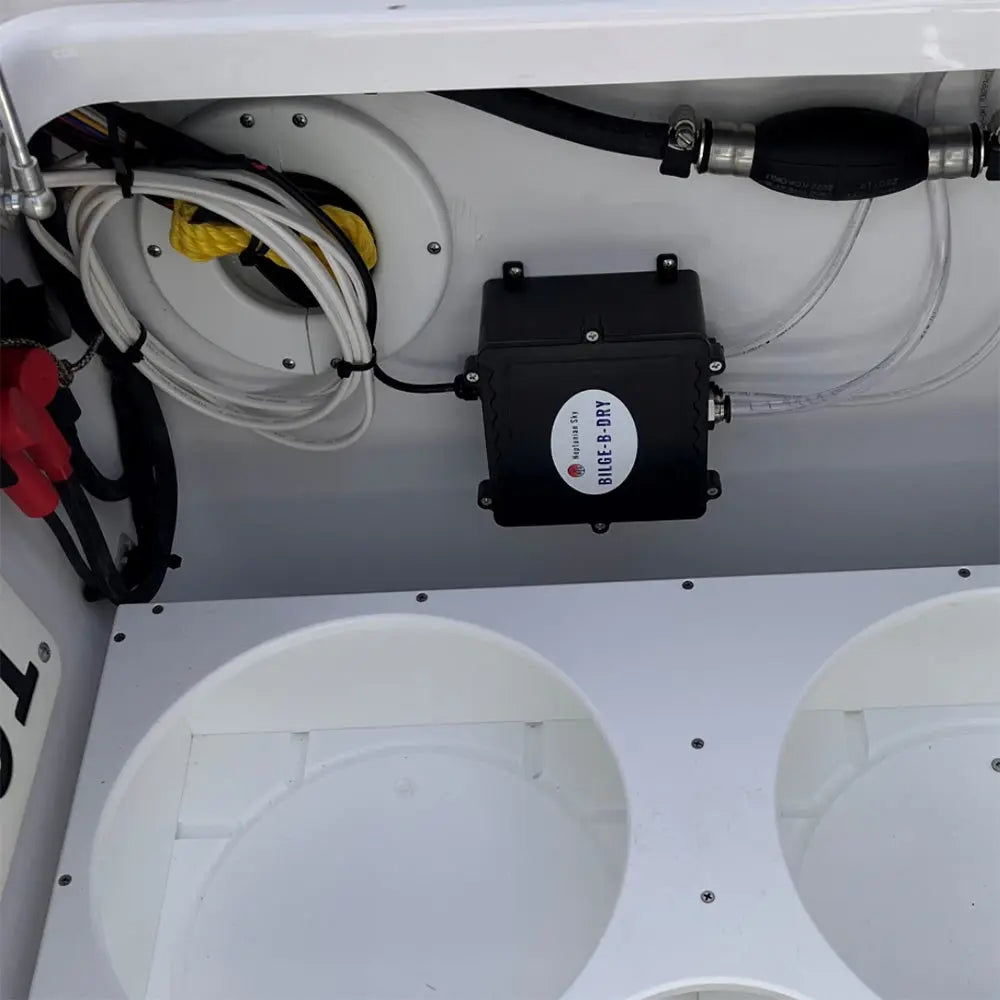

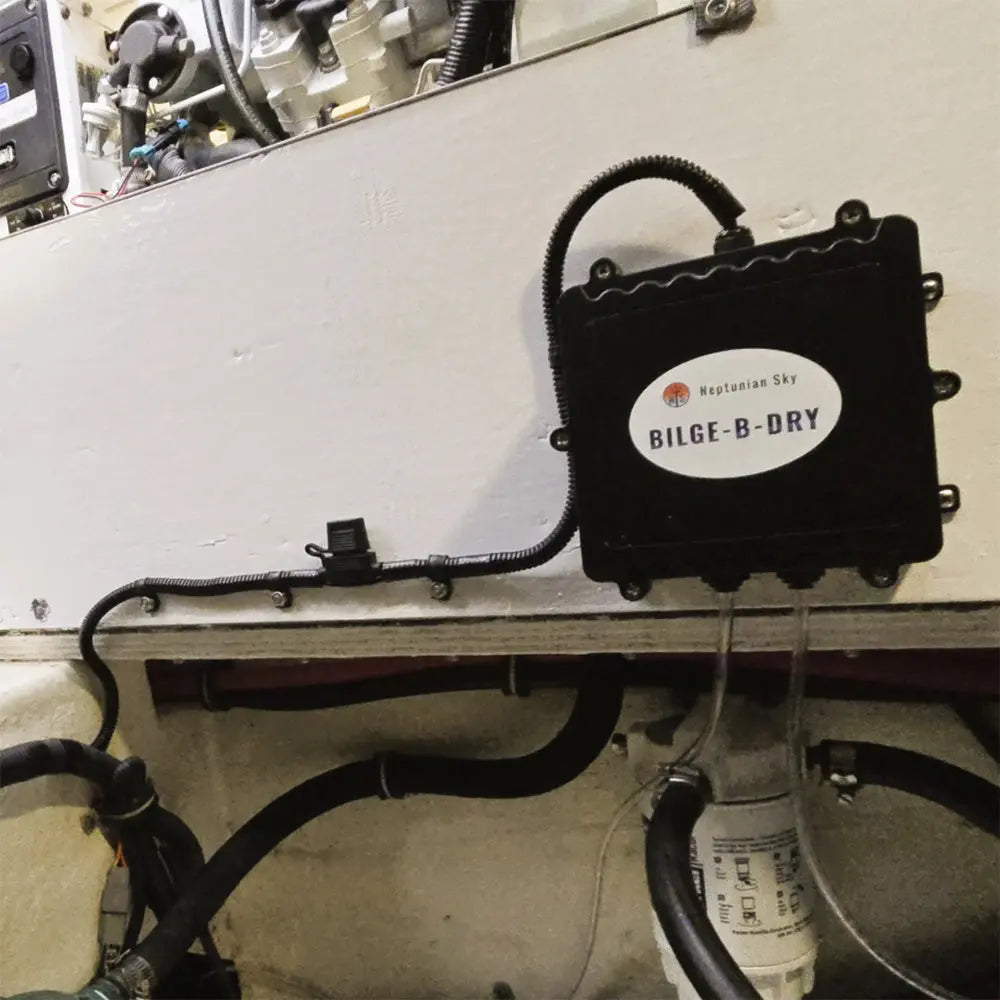

• A compact pump design for easy installation in tight or awkward spaces in any orientation (horizontal or vertical).
• Customized pump scheduling with the free Mobile App for Apple and Android devices.

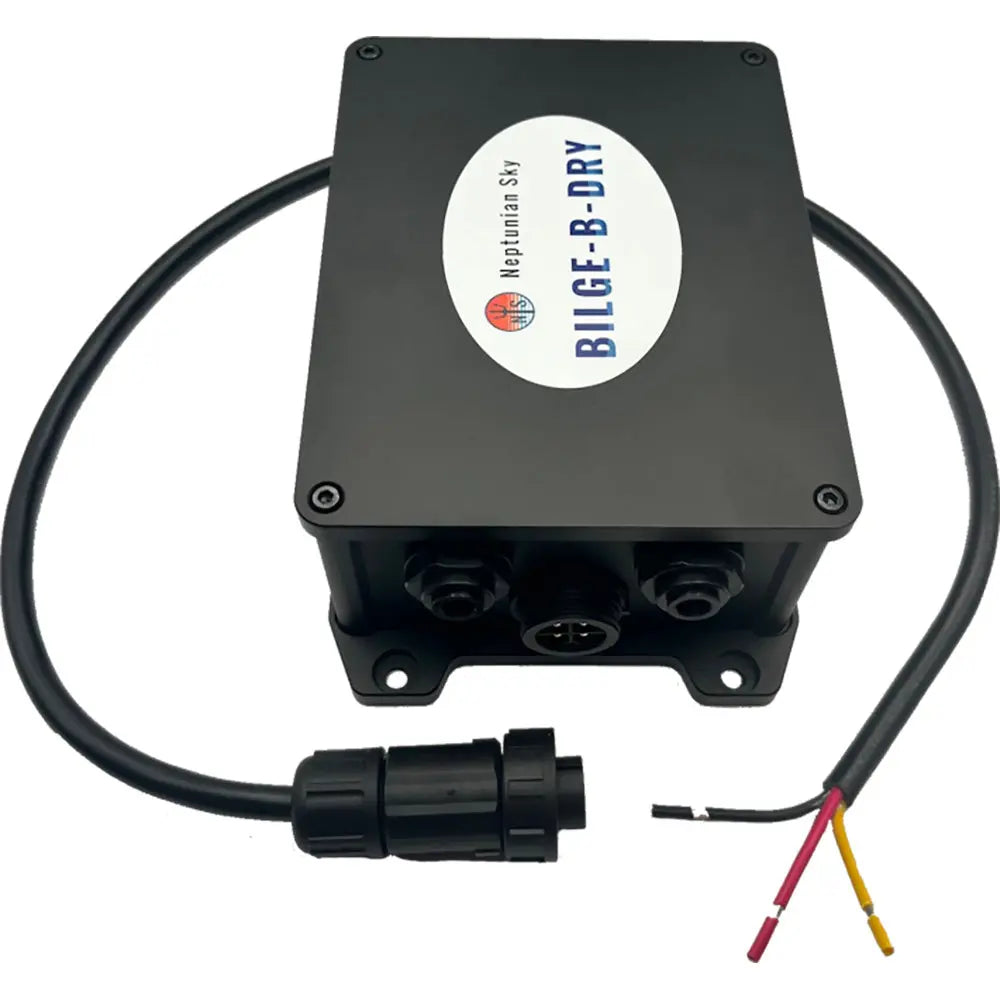

• Quick disconnect wiring harness with optional connection to a helm or float switch.
• An environmentally friendly, low-profile bilge water pickup design with a replaceable filter system.
• Configured to automatically cycle for 2 minutes every 6 hours if you decline Smart Device connectivity.

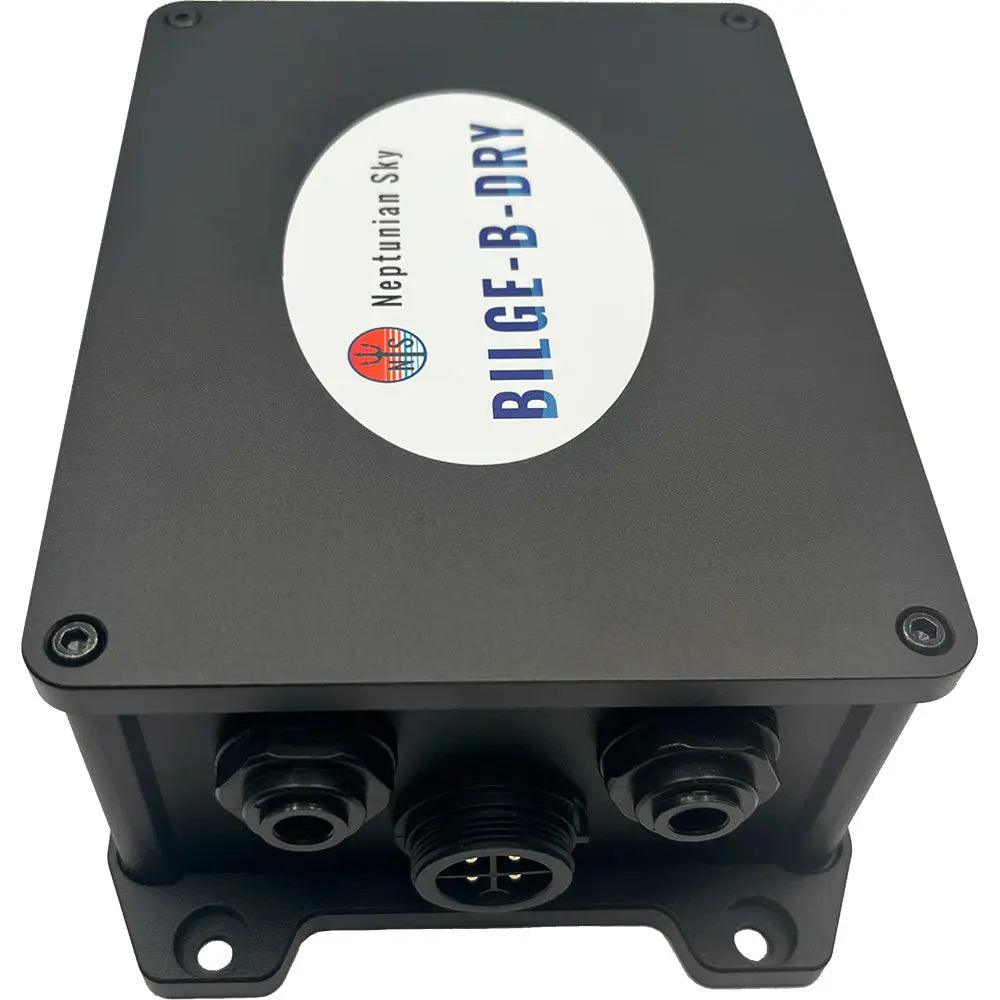

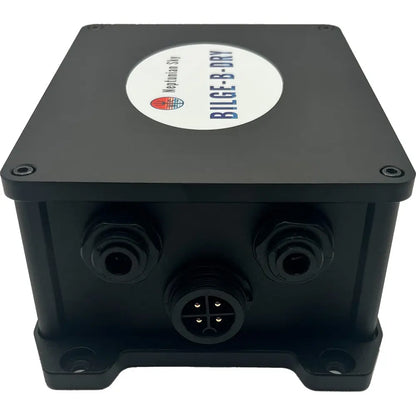

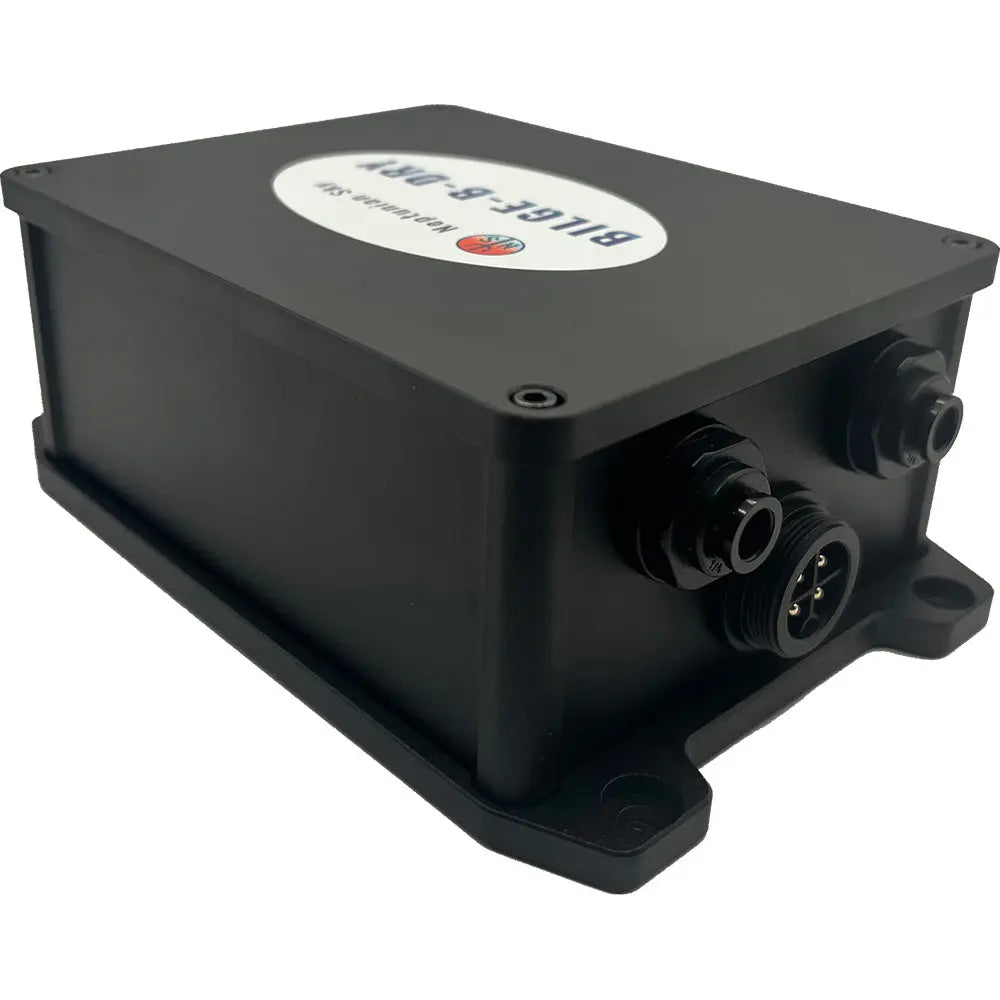

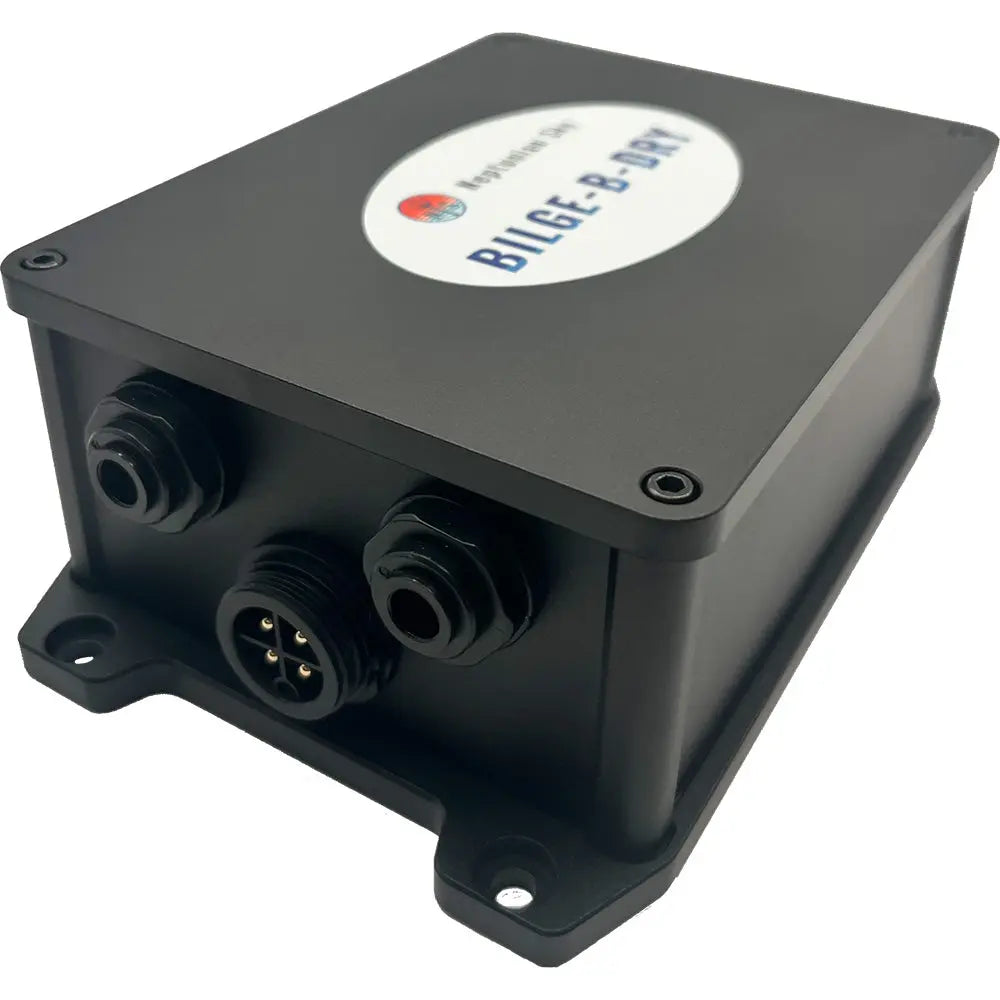

Newly designed, ruggedized, single pump, which includes:

• An anodized aluminum enclosure with improved durability, enhanced pump efficiency, and streamlined internal plumbing.
• Four hard points for mounting in extreme conditions.
• Reduced size for easy installation in tight compartments.

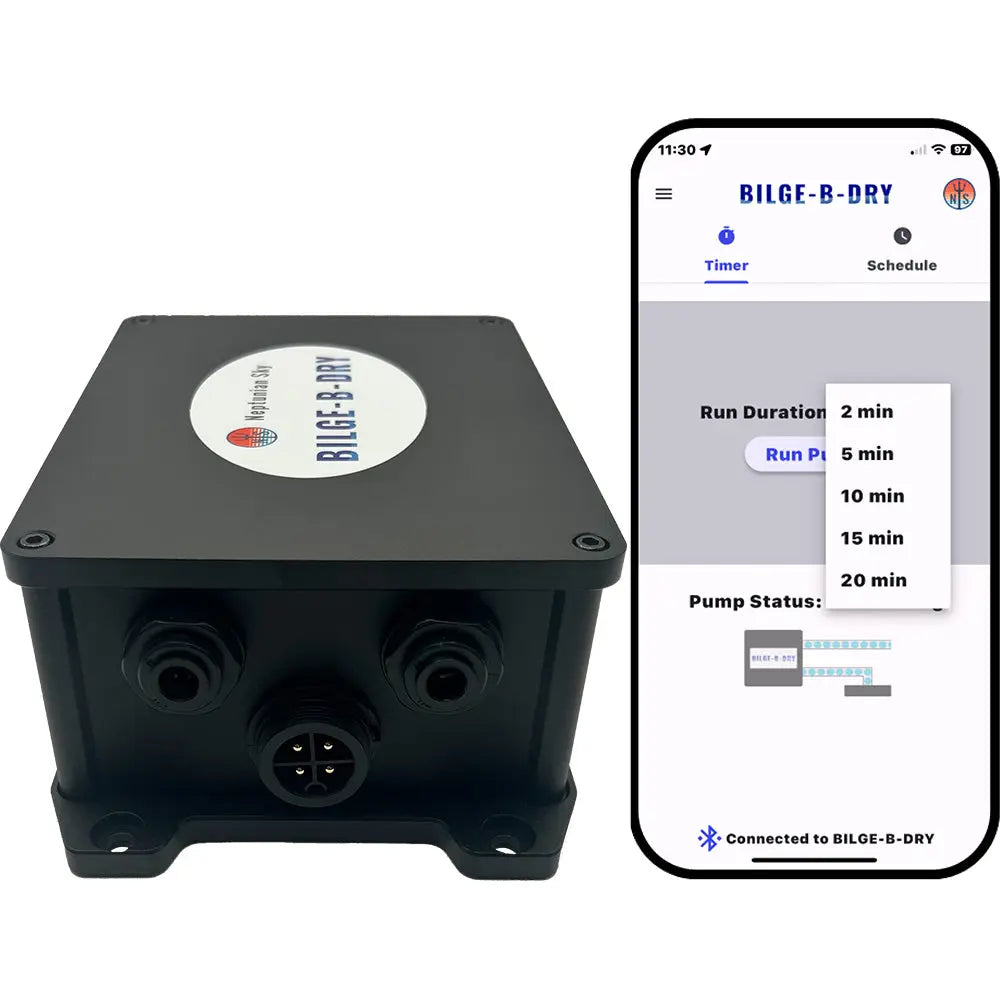

BILGE-B-DRY connects to your Smart Device (if desired) through the free Mobile App on the APPLE GOOGLE PLAY stores. Customizable operation is at your fingertips with two options:

• Run the TIMER option up to 20 minutes after boating in heavy seas or upon washdown.
• Choose the SCHEDULE option for five customizable run times during the day, up to 20 minutes. This is a great option if you will be away from your boat for a few weeks.

Example:

With your Smart Device, schedule your BILGE-B-DRY to run at 9:00 AM for three minutes and again at 3:00 PM for two minutes. The schedules will run daily until canceled. If at 8:00 PM you still see water in your bilge, run the on-demand Timer for up to 20 minutes to remove the remaining water.

BBD Single Pump 12VDC:

• One motor/diaphragm pump
• 10 feet of input tubing provided (for pickup)
• 6 feet of output tubing provided (for discharge)
• Input tubing diameter (PVC or PU) - 1/4 OD
• Output tubing diameter (PVC or PU)-3/8 OD

Included with your BILGE-B-DRY purchase are low-profile bilge water pickups. Our uniquely designed low-profile bilge water pickup (bracket sold separately) with a replaceable filter helps reduce the harmful overboard discharge of heavy metals, solids, and petroleum. Place the pickups wherever you wish to remove water, such as the lowest part of your bilge, A/C evaporator, or hard-to-reach compartments. Twenty small holes along the bottom of the pickup provide a debris barrier. The pickups integrated filter contains a proprietary blend of materials to prevent damage to the BILGE-B-DRY pump and to reduce oil discharge, which, unlike other dry bilge systems, eliminates the need for a secondary filter.

For optimum performance of your BILGE-B-DRY unit, replace the low-profile bilge water pickups when the flow rate has decreased. You can choose to replace the filter material or replace the entire pickup. BILGE-B-DRY orders DO NOT INCLUDE the stainless hold-down bracket or inline fuse!

Specifications:

Meets ISO 8846 standards, Section 5, Protection against ignition of surrounding flammable gases.

Power Required:

• 12 VDC (8 14 VDC)
• Max current: 0.35 amps (12 VDC)
• Idle Current: 0.05 amps (12 VDC)

Pump:

• Maximum flow: 0.25 GPM
• Pump head: 10 feet
• Pump suction: 5 (vertical) feet
• Diaphragm design, able to run dry for extended periods without damage
• Life expectancy >1000 hours

Control board:

• Wireless Connectivity
• Life expectancy: 100,000 cycles
• Working temperature: - 40 85 C
• Wi-Fi RF Grant FCC Rule Part 15C

Dimensions (in):

• Enclosure: 2.25 H x 4 W x 5.25 L
• Rectangular Pickup: 0.98 H x 2.4 W x 3.9 L

Dimensions (mm):

• Enclosure: 57.15 H x 101.6 W x 133.35 L
• Rectangular Pickup: 25 H x 60 W x 100 L

Weight

• 1.6 LB (not including tubing, pickup, or accessories)

Tubing:

• Input tubing: 1/4 Outer Diameter
• Output tubing: 3/8 Outer Diameter
• Use Polyvinyl chloride (PVC) or Polyurethane (PU) tubing

• Hardness Shore A 80 or higher

The BILGE-B-DRY Single Pump 12VDC is an innovative dry bilge system designed for reliable and efficient water removal on boats of all sizes. Unlike traditional bilge pumps, this system features smart device connectivity, allowing you to customize and schedule operation via a free mobile app compatible with Apple and Android devices. Its advanced design ensures the removal of even the last few inches of excess water, preventing cabin odors, mold, corrosion, and electrical damage caused by standing water in your bilge. Whether dealing with washdowns, heavy rain, sea spray, or leaks, the BILGE-B-DRY provides a versatile solution tailored to your boating needs.

Constructed with a rugged anodized aluminum enclosure, this compact pump offers durability and streamlined internal plumbing for easy installation in tight or awkward spaces. Its diaphragm design allows the pump to run dry for extended periods without damage, making it suitable for long-term or intermittent use. The pump includes 10 feet of input tubing and 6 feet of output tubing, both compatible with PVC or polyurethane materials, ensuring flexibility in setup. The system also features a replaceable filter within the low-profile water pickup, designed to reduce harmful discharges of heavy metals, solids, and petroleum, thereby protecting your environment and water quality.

The BILGE-B-DRY system provides multiple operational modes, including customizable schedules for daily water removal or on-demand cycling for specific situations such as after heavy seas or washdowns. The mobile app enables you to set up to five daily run times, each up to 20 minutes, with options for immediate operation for up to 20 minutes. The system's quick disconnect wiring harness simplifies installation, and optional connections to helm or float switches enhance automation. Designed to meet ISO 8846 standards for ignition protection, this pump is suitable for the demanding conditions of marine environments, with a maximum flow rate of 0.25 gallons per minute and a pump head of 10 feet. Its lightweight design and multiple mounting points make it ideal for installation in various boat compartments, ensuring your bilge remains dry, clean, and odor-free at all times.

Features:

• Smart device connectivity for customizable scheduling via mobile app on Apple and Android devices.

• Reliable water removal with a compact, rugged aluminum enclosure and streamlined plumbing.

• Diaphragm pump design that can run dry without damage, with a maximum flow rate of 0.25 GPM.

• Includes 10 feet of input tubing and 6 feet of output tubing for flexible installation in tight spaces.

• Replaceable filter system integrated into low-profile bilge water pickup to reduce environmental discharge and prevent damage.
