BILGE-B-DRY Triple Pump 12VDC - Smart Dry Bilge System for Marine Boats

Triple Pump - 12VDC

BILGE-B-DRY is the worlds only Smart Device enabled Dry Bilge System on the market!

Enjoy simple installation and customized scheduling control at your fingertips with our Mobile App for Apple or Android devices. Due to size and placement, traditional bilge pumps cannot remove the last few inches of excess water accumulating in your bilge. With BILGE-B-DRY, you can finally eliminate cabin odors, reduce mold or corrosion, and protect your electrical wiring by removing every drop of water from your bilge. Your cabin will be odor-free, and your bilge will be the driest and cleanest at the marina!

Why choose BILGE-B-DRY Take advantage of:

• The worlds ONLY Smart Device enabled Dry Bilge System on the market with customizable operation!
• An efficient, reliable method to remove excess bilge water on all boats, including stepped-hull boats where water sits forward of the step. Use BILGE-B-DRY after washdown, heavy rain or sea spray accumulation, rough seas, untreated leaks, etc.

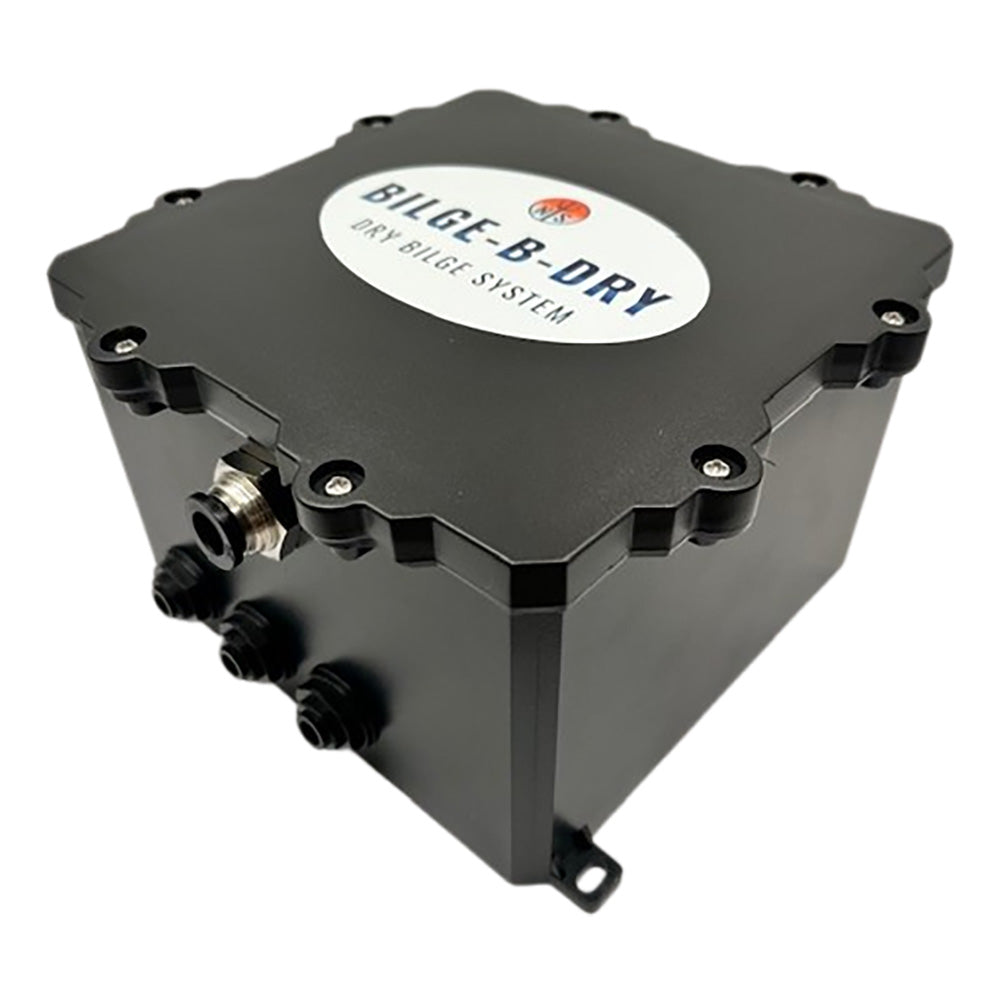

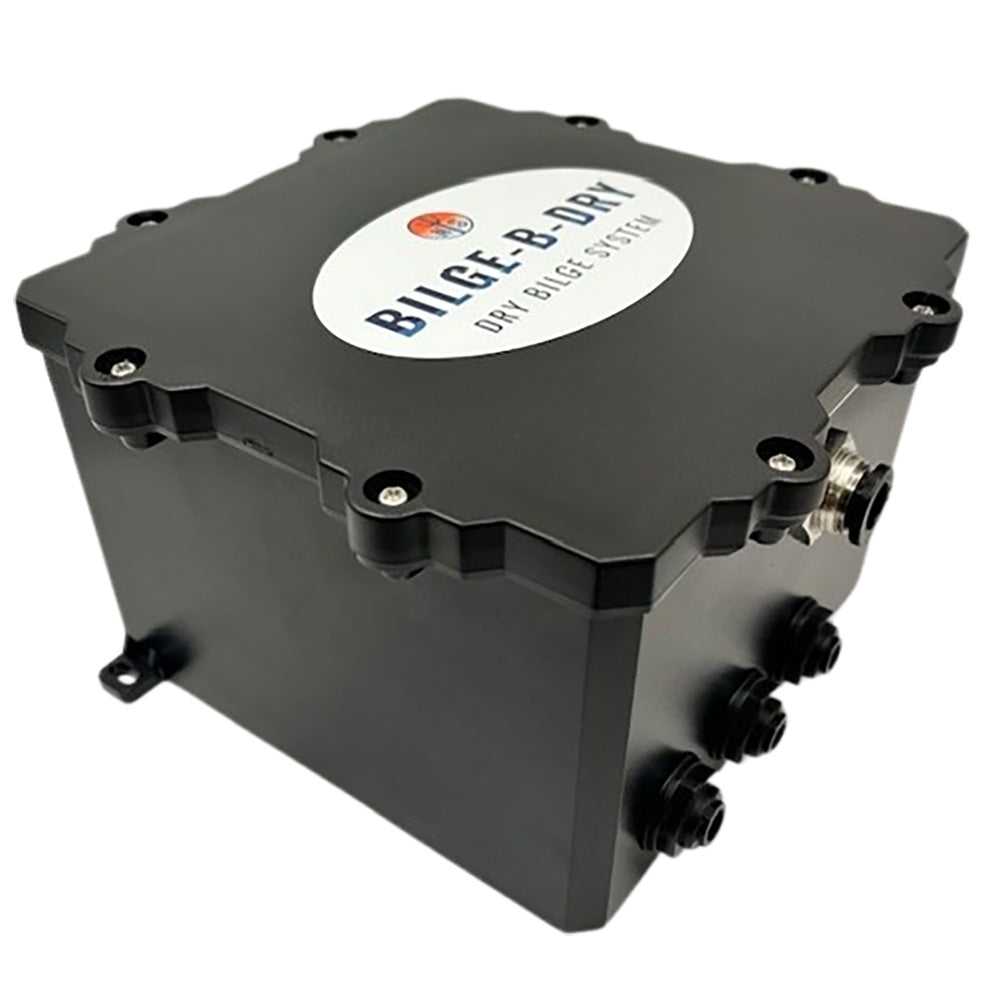

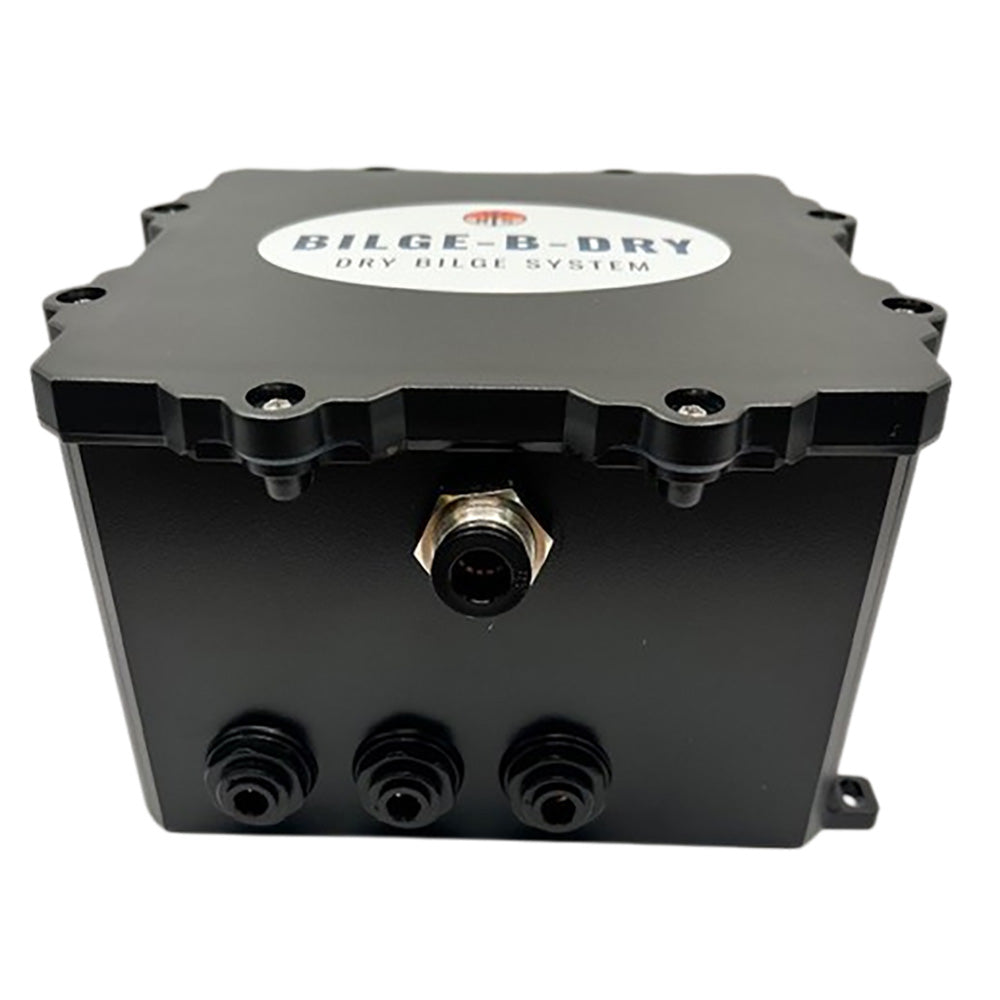

• Heavy-duty pump enclosure with improved durability, enhanced pump efficiency, and streamlined internal plumbing.
• A choice of four pump configurations in 12vdc or 24vdc for optimal water removal.
• The pump diaphragm design can run dry for extended periods without damage.

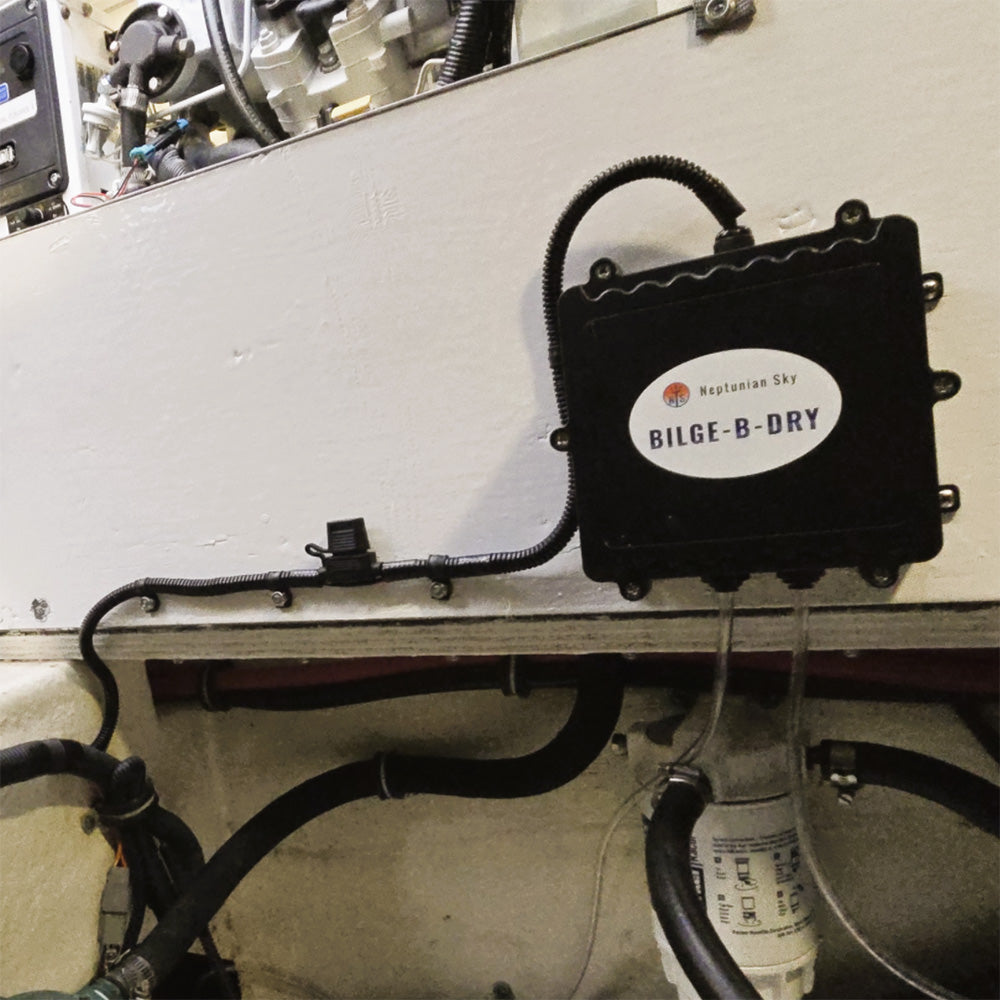

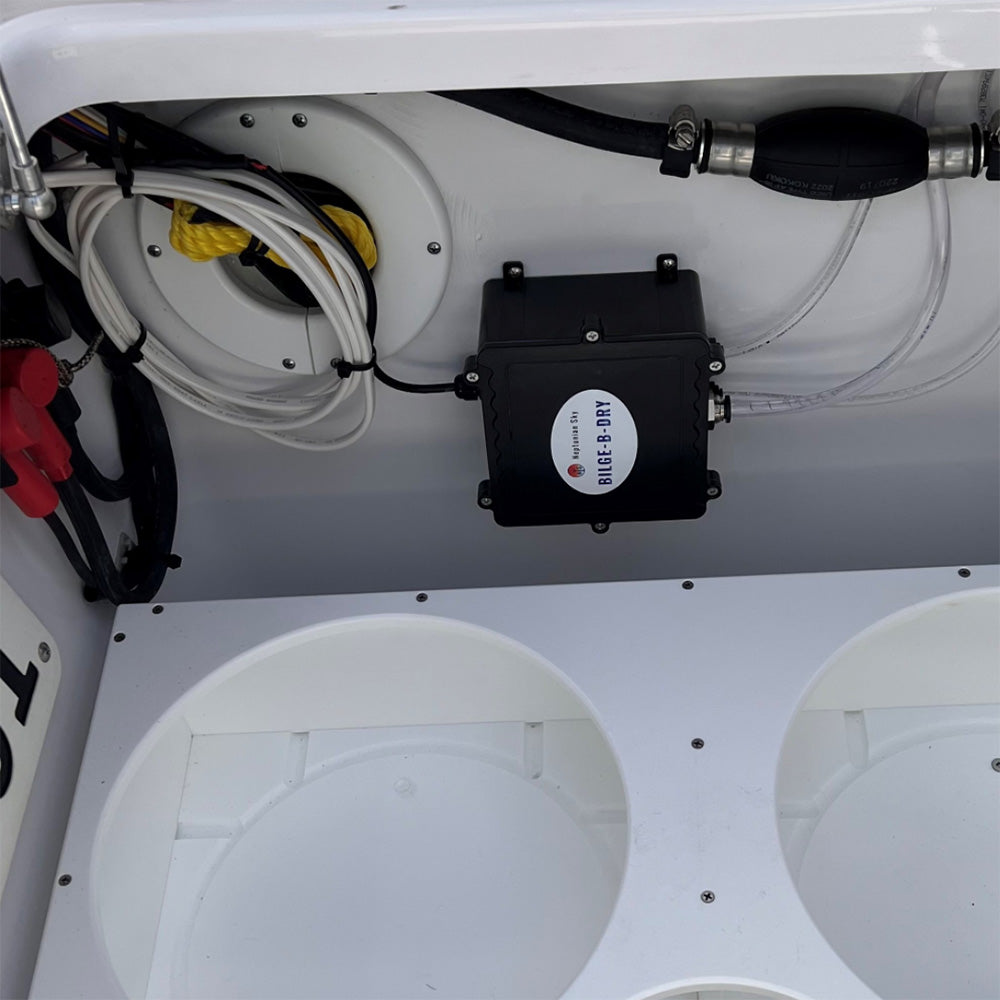

• A compact pump design for easy installation in tight or awkward spaces in any orientation (horizontal or vertical).
• Customized pump scheduling with the free Mobile App for Apple and Android devices.

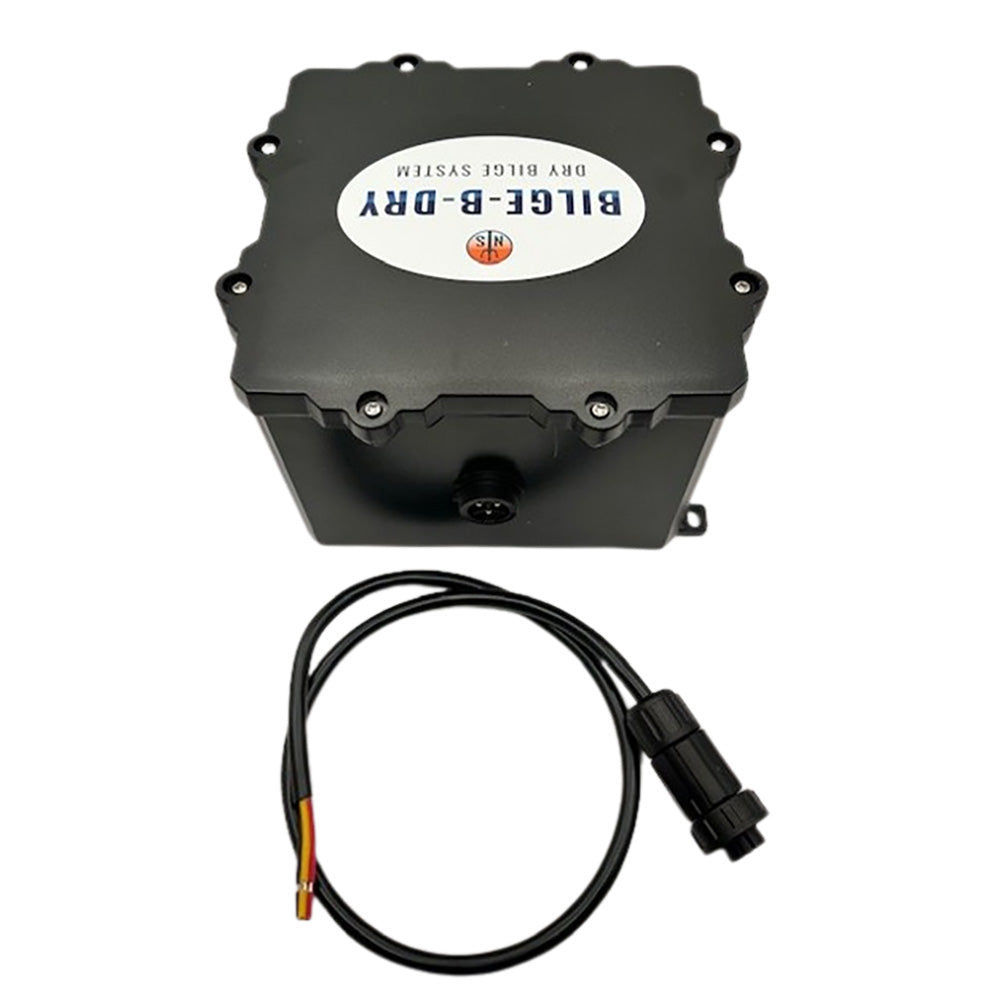

• Quick disconnect wiring harness with optional connection to a helm or float switch.
• An environmentally friendly low-profile bilge water pickup design with a replaceable filter system.
• Configured to automatically cycle for 2 minutes every 6 hours if you decline Smart Device connectivity.

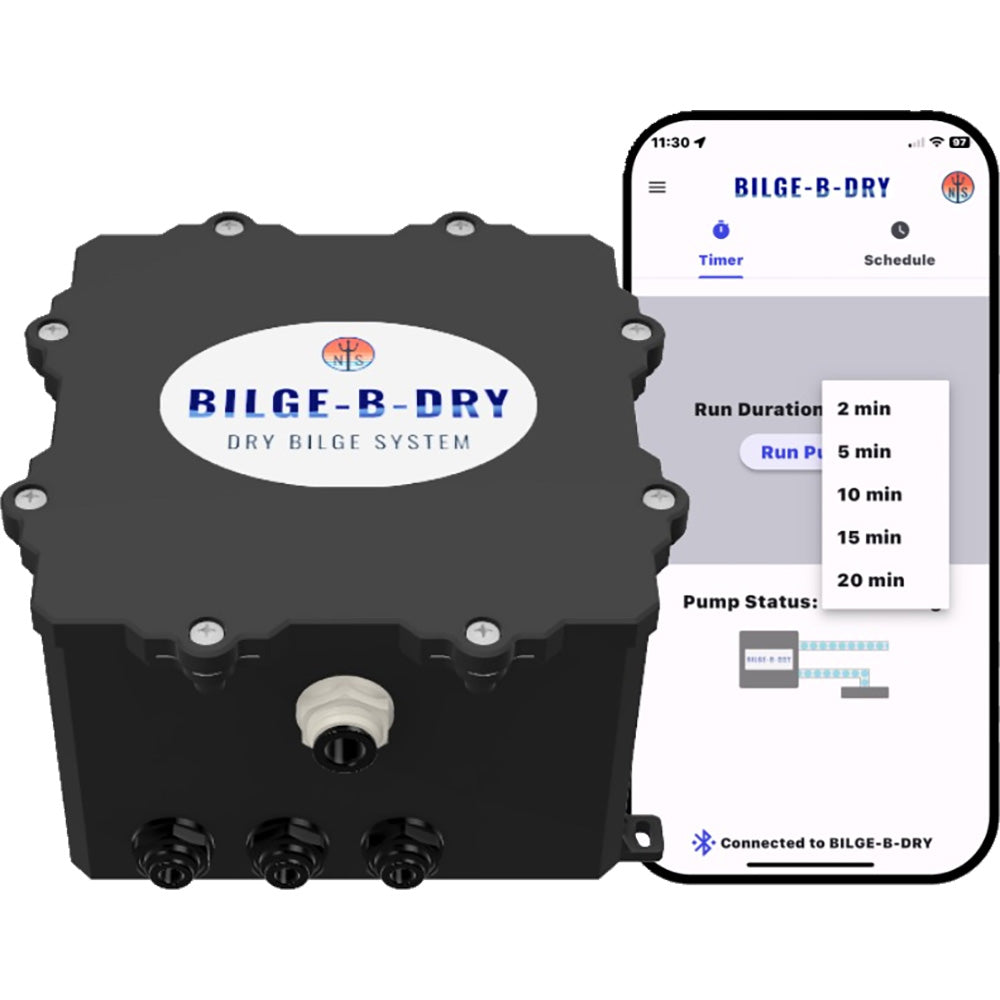

BILGE-B-DRY connects to your Smart Device (if desired) through the free Mobile App on the APPLE GOOGLE PLAY stores. Customizable operation is at your fingertips with two options:

• Run the TIMER option up to 20 minutes after boating in heavy seas or upon washdown.
• Choose the SCHEDULE option for five customizable run times during the day, up to 20 minutes. This is a great option if you will be away from your boat for a few weeks.

Example:

With your Smart Device, schedule your BILGE-B-DRY to run at 9:00 AM for three minutes and again at 3:00 PM for two minutes. The schedules will run daily until canceled. If at 8:00 PM you still see water in your bilge, run the on-demand Timer for up to 20 minutes to remove the remaining water.

BBD Triple Pump 12VDC:

Three motors/diaphragm pumps

20 feet of input tubing provided (for pickup)

6 feet of output tubing provided (for discharge)

Input tubing diameter (PVC or PU) - 1/4 OD

Output tubing diameter (PVC or PU) - 3/8 OD

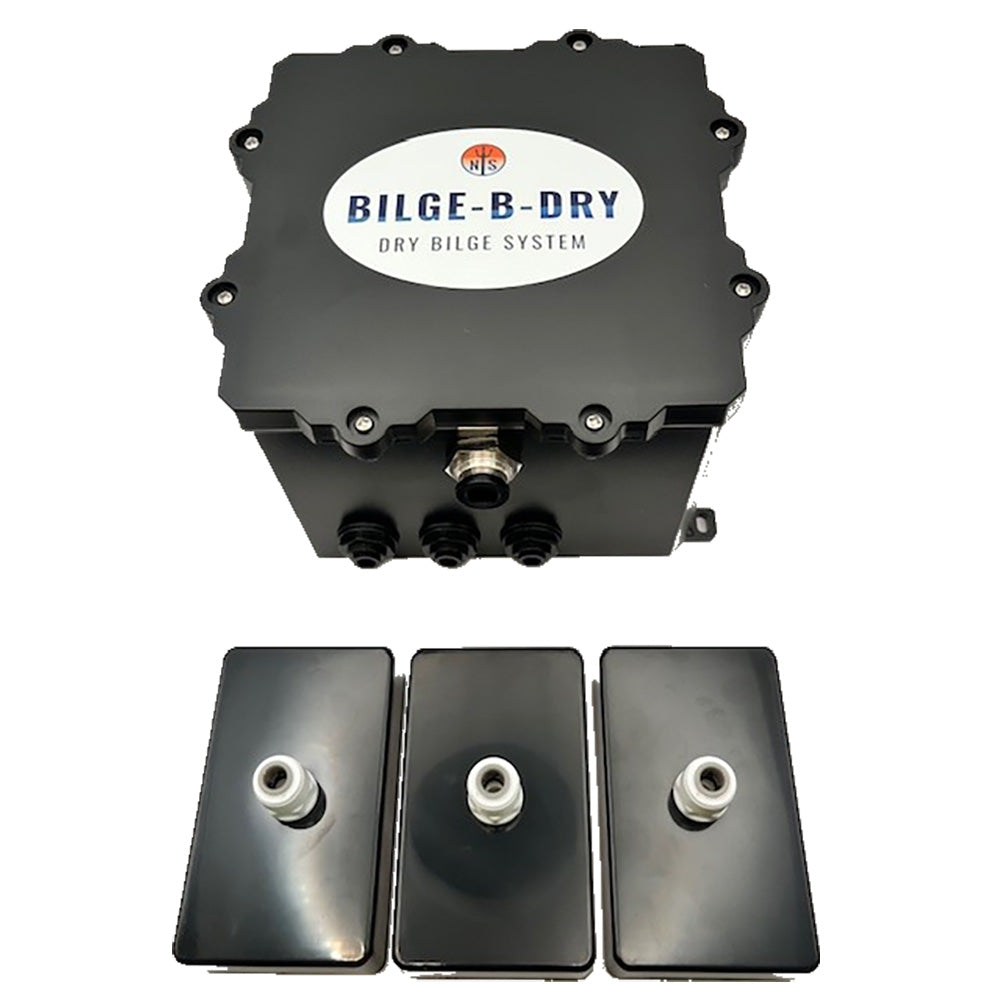

Included with your BILGE-B-DRY purchase are low-profile bilge water pickups. Our uniquely designed low-profile bilge water pickup (bracket sold separately) with a replaceable filter helps reduce the harmful overboard discharge of heavy metals, solids, and petroleum. Place the pickups wherever you wish to remove water, such as the lowest part of your bilge, A/C evaporator, or hard-to-reach compartments. Twenty small holes along the bottom of the pickup provide a debris barrier. The pickups integrated filter contains a proprietary blend of materials to prevent damage to the BILGE-B-DRY pump and to reduce oil discharge, which, unlike other dry bilge systems, eliminates the need for a secondary filter.

For optimum performance of your BILGE-B-DRY unit, replace the low-profile bilge water pickups when the flow rate has decreased. You can choose to replace the filter material or replace the entire pickup. BILGE-B-DRY orders DO NOT INCLUDE the stainless hold-down bracket or inline fuse!

Specifications:

Meets ISO 8846 standards, Section 5, Protection against ignition of surrounding flammable gases.

Power Required:

• 12 VDC (8 14 VDC)
• Max current: 1.0 amps (12 VDC)
• Idle Current: 0.05 amps (12 VDC)

Pump:

• Maximum flow: 0.75 GPM
• Pump head: 10 feet
• Pump suction: 5 (vertical) feet
• Diaphragm design, able to run dry for extended periods without damage
• Life expectancy >1000 hours

Control board:

• Wireless Connectivity
• Life expectancy: 100,000 cycles
• Working temperature: - 40 85 C
• Wi-Fi RF Grant FCC Rule Part 15C

Dimensions (in):

• Enclosure: 4.1 H x 6.8 W x 7 L
• Rectangular Pickup: 0.98 H x 2.4 W x 3.9 L

Dimensions (mm):

• Enclosure: 76 H x 172 W x 177 L
• Rectangular Pickup: 25 H x 60 W x 100 L

Weight

• 2.2 LB (not including tubing, pickup, or accessories)

Tubing:

• Input tubing: 1/4 Outer Diameter
• Output tubing: 3/8 Outer Diameter
• Use Polyvinyl chloride (PVC) or Polyurethane (PU) tubing
• Hardness Shore A 80 or higher

The BILGE-B-DRY Triple Pump 12VDC is a sophisticated dry bilge system designed to keep your boat’s bilge dry and free of odors, mold, and corrosion. As the only smart device-enabled dry bilge system on the market, it offers customized scheduling control via a user-friendly mobile app compatible with Apple and Android devices. This innovative system features three diaphragm pumps with a maximum flow rate of 0.75 gallons per minute, capable of removing water from even the most hard-to-reach areas. Its compact design allows easy installation in tight spaces, whether in horizontal or vertical orientations, making it suitable for various boat configurations including stepped-hull vessels. The pump's diaphragm design ensures extended dry-run operation without damage, enhancing durability and reliability over time. The system includes 20 feet of input tubing and 6 feet of discharge tubing, with a low-profile bilge water pickup equipped with a replaceable filter to prevent debris and oil discharge, promoting environmentally friendly operation.

Control is simplified with the free mobile app, offering two main operation modes: a timer function that can run up to 20 minutes after heavy seas or washdowns, and a scheduling feature for setting five daily runtime periods up to 20 minutes each. This flexibility allows boat owners to automate bilge water removal or manually control the system as needed, ensuring a dry bilge at all times. The system is designed to cycle automatically for two minutes every six hours if no connectivity is established, maintaining consistent performance. The BILGE-B-DRY system complies with ISO 8846 standards for protection against ignition of surrounding flammable gases, ensuring safety on marine vessels.

Constructed with heavy-duty enclosures and enhanced internal plumbing, the BILGE-B-DRY offers a long service life, with an expected operational lifespan exceeding 1,000 hours. The control module features wireless connectivity with a life expectancy of 100,000 cycles and operates within a temperature range of -40°C to 85°C. The entire assembly weighs approximately 2.2 pounds and measures roughly 4.1 inches high by 6.8 inches wide and 7 inches long. The system’s tubing connections support PVC or polyurethane tubes with an outer diameter of 1/4 inch for input and 3/8 inch for output, facilitating versatile installation options. Please note that the stainless hold-down bracket and inline fuse are sold separately. Regular replacement of the bilge pickup filters is recommended for optimal performance, helping reduce harmful pollutants discharged overboard and maintaining efficient water removal.

Features:

• Smart device-enabled dry bilge system with customizable scheduling via mobile app

• Three diaphragm pumps with a maximum flow rate of 0.75 GPM and dry-run capability

• Compact, easy-to-install design suitable for tight boat spaces and various orientations

• Includes 20 feet of input tubing and 6 feet of discharge tubing for flexible setup

• Low-profile bilge water pickup with replaceable filter reduces debris and oil discharge

• Automatic cycling and customizable timers for optimal bilge dryness

• Wi-Fi connectivity with wireless control and long-lasting control board

• Built to meet ISO 8846 standards for safety in flammable environments

• Durable heavy-duty enclosure with enhanced internal plumbing for extended lifespan

• Supports PVC or polyurethane tubing with 1/4-inch input and 3/8-inch output diameters
