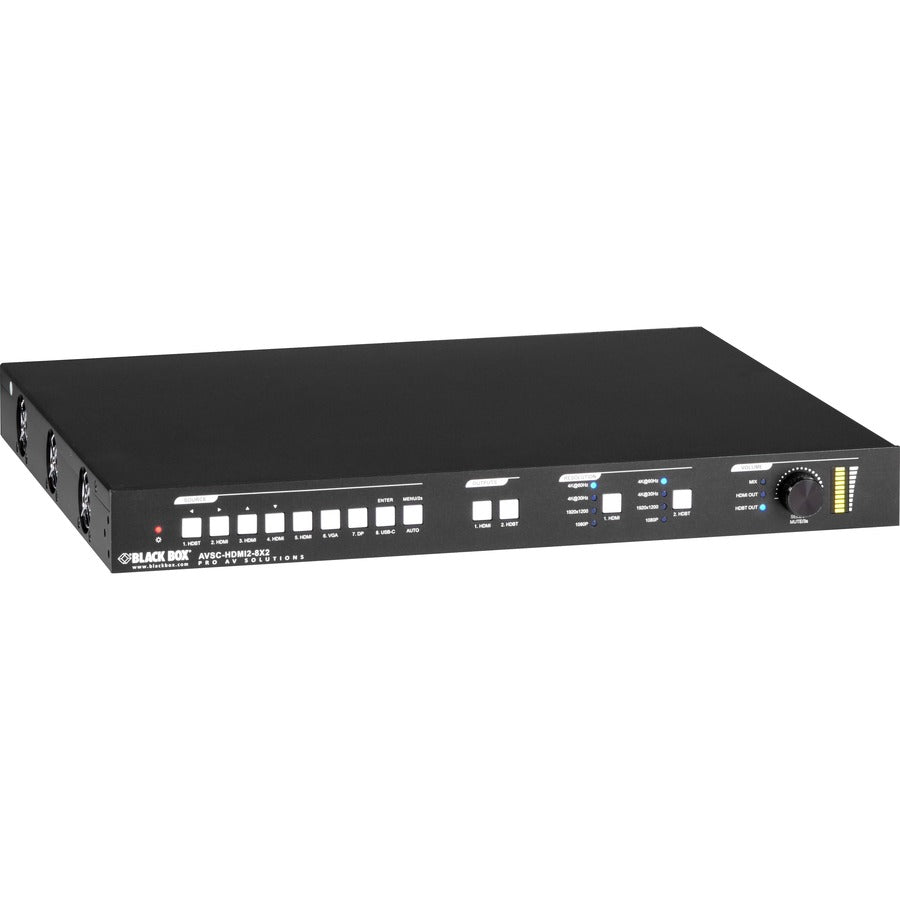

Black Box AVSC-HDMI2-8X2 8x2 HDMI & CATx Video Matrix Switcher with 4K Support

Black Box 8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0

The Black Box AVSC-HDMI2-8X2 is an advanced 8-input by 2-output video matrix switcher designed to optimize AV system configurations in presentation, conference, and digital signage environments. Equipped with eight versatile inputs including HDMI, VGA, DisplayPort, USB-C, and CATx extensions supporting HDMI 2.0, this switcher ensures seamless integration of multiple video sources with differing resolutions. Its rack-mountable form factor makes it suitable for professional installations requiring reliable, high-quality signal management. The device features true 4K scaling up to 60 Hz with 4:4:4 color sampling, enabling crisp, vibrant images for high-resolution displays. The innovative VLC technology embedded in the CATx extension ports allows for HDMI 2.0 signals to be transmitted over CAT5/6 cables while maintaining original image quality, extending video signals up to 131 feet at 4K resolution. External audio inputs embedded into CATx, HDMI, and VGA sources facilitate comprehensive audio-visual synchronization, while the support for MIX audio input enables global audio management across all sources. The switcher’s auto-switching capability activates based on activity signals, simplifying operation in dynamic environments. Control options include Web GUI, RS-232, IR, and CEC, providing flexible integration with existing control systems. Additionally, the device features a mirrored HDMI output for direct HDMI connections and supports video downscaling and upscaling, accommodating various display resolutions including 1080p, 1920x1200, and 4K at 30 or 60 Hz. Designed with compliance to HDMI 2.0 and HDCP 2.2 standards, this switcher ensures compatibility with the latest digital content protections and high-bandwidth video signals. The package includes mounting accessories, IR remote control, power supply, and terminal blocks for easy installation. Backed by a two-year warranty, the Black Box AVSC-HDMI2-8X2 offers a reliable, high-performance solution for sophisticated AV system integration, combining advanced video processing, extensive input options, and versatile control capabilities. Its environmentally friendly design adheres to RoHS standards, making it suitable for professional environments committed to sustainability.

Features:

• CATx input and output support 24V PoC (Power over CAT6) for simplified cabling

• Visually lossless video compression and de-compression for HDMI signals up to 131 feet (40 meters) at 4K and 229 feet (70 meters) at 1080p on CATx

• Supports automatic switching based on activity signals for seamless operation

• Includes a mirrored HDMI output for direct connection to displays

• Compliant with HDMI 2.0 and HDCP 2.2 standards for high-bandwidth, protected content

• Supports video resolution downscaling and upscaling, including 1080p, 1920x1200, 4K at 30 Hz, and 4K at 60 Hz for both HDMI and CATx outputs
