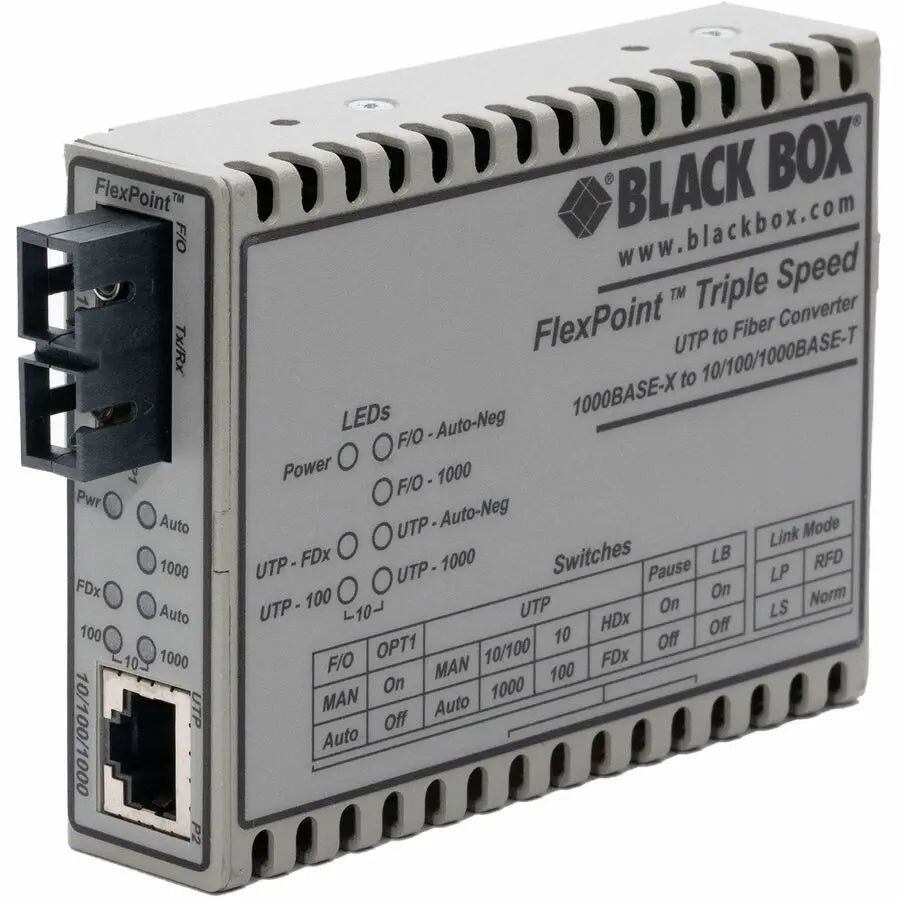

Black Box FlexPoint LMC1017A-MMSC Gigabit Ethernet Media Converter for Fiber Extension

Black Box FlexPoint LMC1017A-MMSC Transceiver/Media Converter

The Black Box FlexPoint LMC1017A-MMSC is a versatile and reliable media converter designed to extend your Ethernet network seamlessly. Supporting 10/100/1000 Mbps copper connections on the UTP port and 1000 Mbps multimode fiber on the other end, this converter enables high-speed data transmission over longer distances than standard copper Ethernet. Ideal for enterprise LAN extensions, fiber mode conversions, or Ethernet speed upgrades, it provides a cost-effective solution for growing network infrastructures.
Constructed with a compact, wall-mountable design, the LMC1017A-MMSC can be used as a standalone device or integrated into a high-density rack chassis like the FlexPoint 14-Slot Power Chassis, which accommodates up to 14 converters and offers flexible power options. Its plug-and-play operation requires no software configuration, simplifying installation and reducing downtime. LEDs on the unit provide real-time status updates for power, link, activity, and duplex mode, aiding in troubleshooting and system management.
Features such as auto-negotiation for optimal speed, auto MDI/MDI-X crossover, and support for jumbo frames up to 10,240 bytes ensure efficient and flexible network performance. DIP switches allow for tailored port configurations, while remote fault indicators notify users of link loss or faults at far-end connections. The converter supports distances up to 220 meters when using 62.5-/125-um or 100-/140-um multimode fiber, and up to 550 meters with 50/125-um multimode fiber, making it suitable for various deployment scenarios.
Powered by an external 100-240VAC power supply, the device can also be mounted on a wall or placed within a rack system for organized network setups. Its environmental friendliness, TAA compliance, and limited two-year warranty make it a dependable choice for enterprise networks seeking to upgrade to fiber connectivity without extensive infrastructure changes. Overall, the Black Box FlexPoint LMC1017A-MMSC is an efficient, easy-to-install media converter that brings fiber connectivity directly to your desktop or network edge, providing a scalable solution for evolving LAN environments.

Features:

• Supports jumbo frames up to 10,240 bytes

• DIP switches enable you to configure port settings

• Powered by an AC power supply or the optional rack-mountable chassis

• Auto MDI/MDI-X means you never need to worry about what kind of cable to use

• Compact size for easy deployment

• Facilitates fiber extension to the desktop at a lower cost than installing fiber NICs
