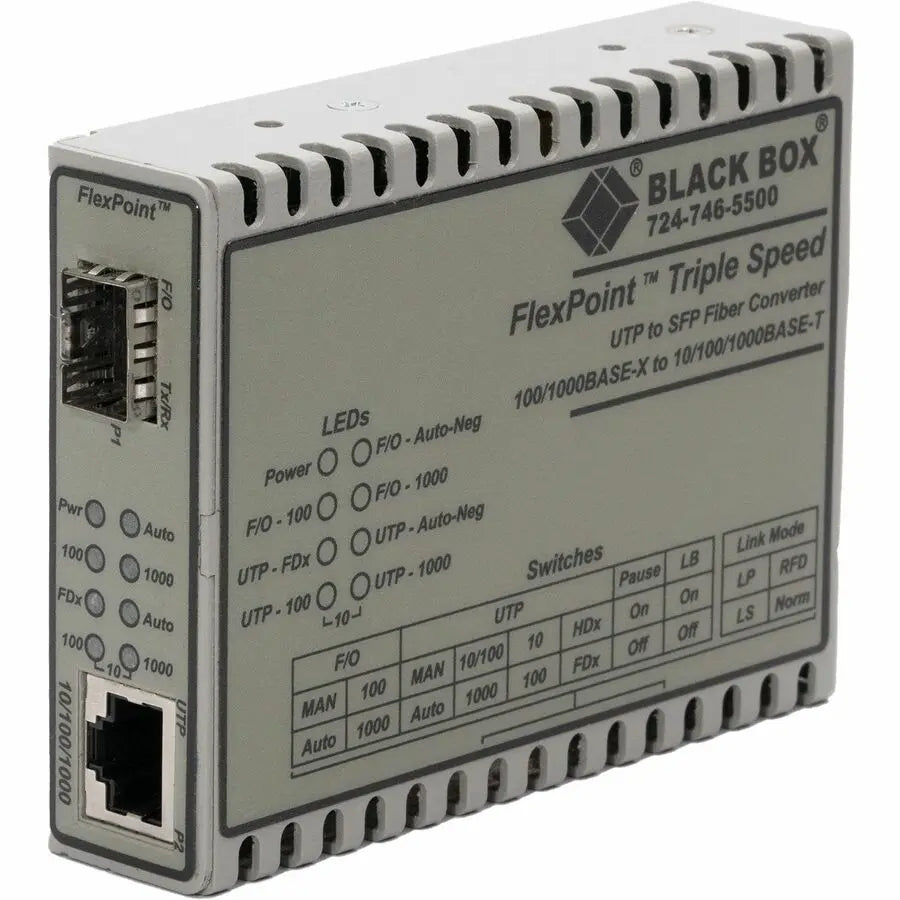

Black Box FlexPoint LMC1017A-SFP Transceiver/Media Converter for Fiber Ethernet Networks

The Black Box FlexPoint LMC1017A-SFP Transceiver/Media Converter offers a versatile solution for extending your Ethernet network over fiber optic cables. Designed to connect 10-, 100-, or 1000-Mbps Ethernet on the copper side with various optical fiber types, this media converter supports high-speed data transmission over longer distances with enhanced security. Its compact, rail-mountable form factor allows flexible deployment options, including wall mounting or installation in the optional rack-mount chassis, making it suitable for a range of network configurations.
Equipped with auto-negotiation capabilities, the converter automatically determines the optimal speed for your network, ensuring seamless performance. The UTP port supports full- and half-duplex operation, while the auto MDI/MDI-X feature simplifies cabling by automatically configuring the port for straight-through or crossover cables. The device supports jumbo frames up to 10,240 bytes, accommodating large data packets for efficient network throughput. It also includes remote fault indicators that signal link loss or faults at the far end, aiding in quick troubleshooting and maintaining network reliability.
Designed with user convenience in mind, the converter features DIP switches that enable manual configuration of port settings, and LEDs indicate power status, port activity, link status, and duplex mode for easy monitoring. Support for CWDM wavelengths allows for increased fiber bandwidth capacity, making it suitable for bandwidth-intensive applications. Powered by an AC supply or the optional rack-mount chassis, this media converter provides a cost-effective way to bring fiber connectivity to desktops and remote locations without the need for expensive fiber NICs, all while maintaining compliance with RoHS standards and TAA regulations. The device’s durable construction and 2-year limited warranty ensure long-term reliability in demanding network environments.
Ideal for networks that require flexible, scalable solutions, the Black Box FlexPoint LMC1017A-SFP can be integrated into existing systems with ease, providing a reliable link between your Ethernet infrastructure and fiber optic networks for data-intensive applications and long-distance communications.

Features:

• DIP switches enable you to configure port settings.

• Supports jumbo frames up to 10,240 bytes.

• Powered by an AC power supply or the optional rack-mountable chassis.

• Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

• Compact size for easy deployment.

• Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.
