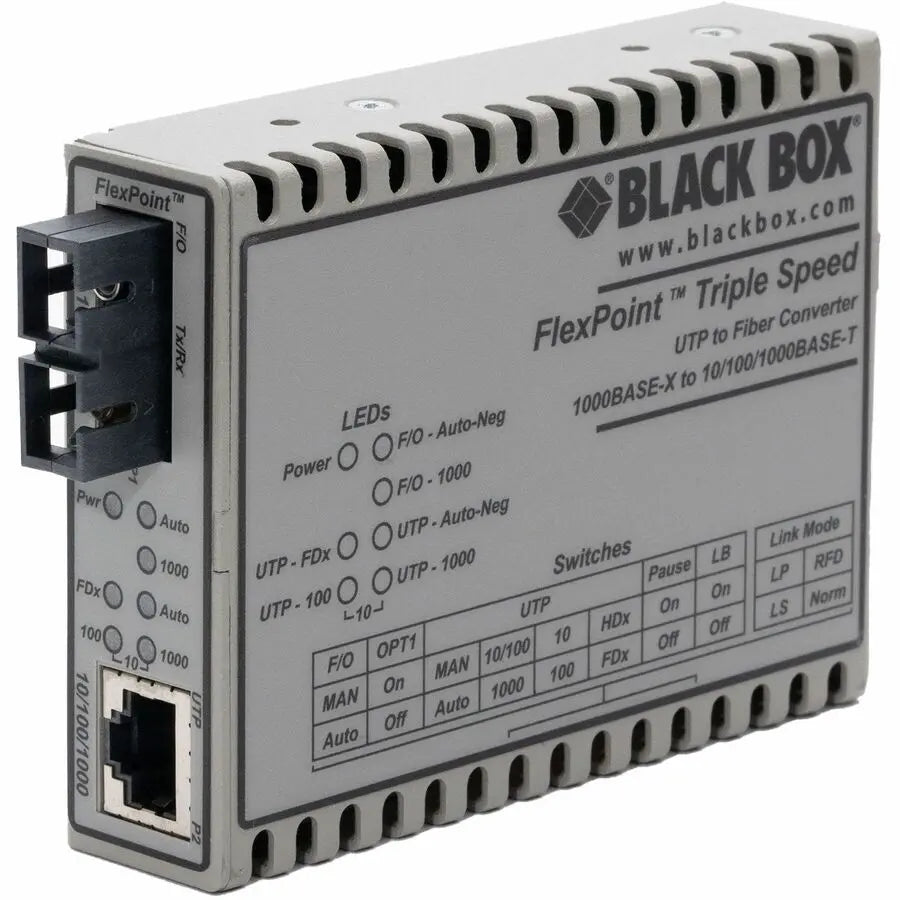

Black Box FlexPoint LMC1017A-SMSC Gigabit Media Converter for Ethernet and Single-Mode Fiber

Black Box FlexPoint LMC1017A-SMSC Transceiver/Media Converter

The Black Box FlexPoint LMC1017A-SMSC is a versatile and reliable media converter designed to expand your local area network (LAN) connectivity. Supporting Gigabit speeds, this transceiver seamlessly converts 10/100/1000 Mbps Ethernet over copper to single-mode fiber, extending network reach up to approximately 7.4 miles (12 kilometers). Its plug-and-play design ensures easy installation without the need for additional software, making it suitable for various network environments. The device includes features such as auto-negotiation for optimal speed and duplex mode, along with support for jumbo frames up to 10,240 bytes, which enhances performance for large data transfers. Its UTP port accommodates full- and half-duplex operation, and automatic or manual flow control via pause functions help prevent network congestion. The built-in remote fault indicators alert users to link loss or faults at the far end, facilitating quick troubleshooting. For testing purposes, the converter offers a loopback mode, and manual switches allow users to control port operation as needed. Designed for flexibility, it can be mounted on a wall or installed in a DIN rail or rack-mountable chassis, including the FlexPoint 14-Slot Power Chassis or 5-Position Rackmount Kit, making it suitable for both desktop and industrial deployments. The device is RoHS compliant and manufactured in the United States, with a limited two-year warranty. Its compact size and robust features make it an ideal solution for network upgrades and expansions where fiber connectivity is required at a lower cost than installing fiber NICs. Whether used individually or integrated into a larger chassis system, the Black Box FlexPoint media converter ensures reliable, high-speed communication over long distances, supporting the evolving needs of modern networks.

Features:

• Supports jumbo frames up to 10,240 bytes for efficient large data transfers.

• DIP switches enable customizable port settings for flexible configuration.

• Auto MDI/MDI-X eliminates the need for crossover cables, simplifying installation.

• Compact form factor allows for easy integration into various mounting options.

• Operates with an AC power supply or within the FlexPoint rack-mountable chassis for scalable deployment.

• Facilitates fiber-to-desktop connectivity at a lower cost than installing fiber NICs, extending network range up to 12 kilometers over single-mode fiber.
