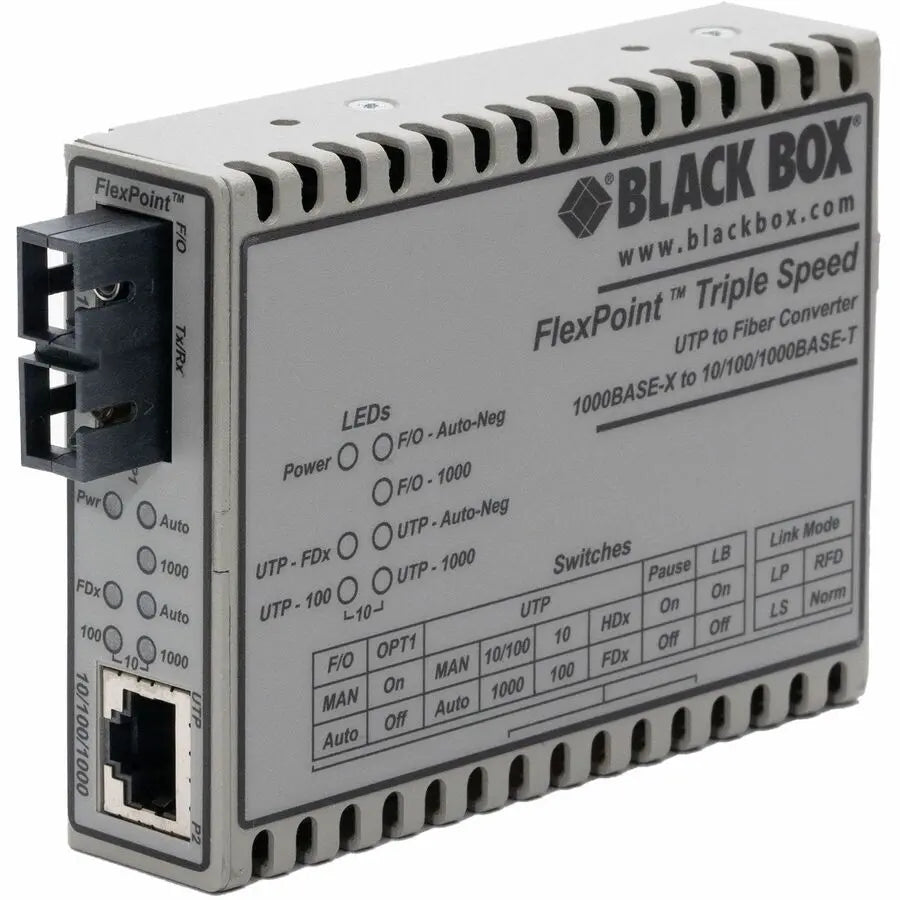

Black Box FlexPoint LMC1017A-SMSC Gigabit Media Converter for Fiber and Ethernet Networks

The Black Box FlexPoint LMC1017A-SMSC Transceiver/Media Converter offers a versatile solution for extending and upgrading LAN infrastructures. Designed for seamless integration, this converter supports fiber-optic and copper Ethernet connections, enabling network extensions up to 12 kilometers over single-mode fiber and data transfer speeds of up to 1 Gbps. Its compatibility with 10-, 100-, and 1000-Mbps Ethernet on the copper side ensures easy adaptation to existing networks while supporting full- and half-duplex modes for flexible operation.
The converter's auto-negotiation feature automatically determines the optimal speed, simplifying setup and ensuring reliable performance. Support for jumbo frames up to 10,240 bytes enhances data throughput, making it suitable for bandwidth-intensive applications. With DIP switches, users can manually configure port settings, providing greater control over network parameters. The auto MDI/MDI-X feature eliminates the need for crossover cables, streamlining installation.
Designed for easy deployment, the converter is compact and can be mounted on a wall or DIN rail, fitting seamlessly into various network environments. It is compatible with the FlexPoint 14-Slot Power Chassis and the FlexPoint 5-Position Rackmount Kit, offering scalable options for growing networks. LEDs on the device display power status, link activity, and duplex mode, aiding in troubleshooting and network monitoring. Remote fault indicators alert users to link loss or faults at the far end, facilitating quick diagnostics.
Powered by an AC power supply or integrated into a rack-mountable chassis, this converter provides reliable, environmentally friendly operation, and is TAA compliant. Its robust design and 2-year limited warranty make it a dependable choice for network administrators seeking cost-effective and flexible fiber-to-Ethernet solutions. Whether used for desktop fiber connectivity or integrated into larger network infrastructure, the Black Box FlexPoint LMC1017A-SMSC ensures high-performance, secure data transmission with easy setup and maintenance.

Features:

• Supports jumbo frames up to 10,240 bytes for high-volume data transfer

• DIP switches enable configuration of port settings for tailored operation

• Auto MDI/MDI-X eliminates the need for crossover cables, simplifying installation

• Compact design allows easy mounting on walls or DIN rails

• Compatible with rack-mounting options including FlexPoint chassis and 5-Position Rackmount Kit

• Supports Gigabit Ethernet over fiber and copper, extending network reach up to 12 kilometers

• LED indicators for power, link status, activity, and duplex mode for straightforward troubleshooting

• Remote fault indicators signal link loss at far-end, aiding quick diagnostics

• Flexible power options include AC supply and rack-mountable chassis

• RoHS compliant and environmentally friendly for sustainable operations
