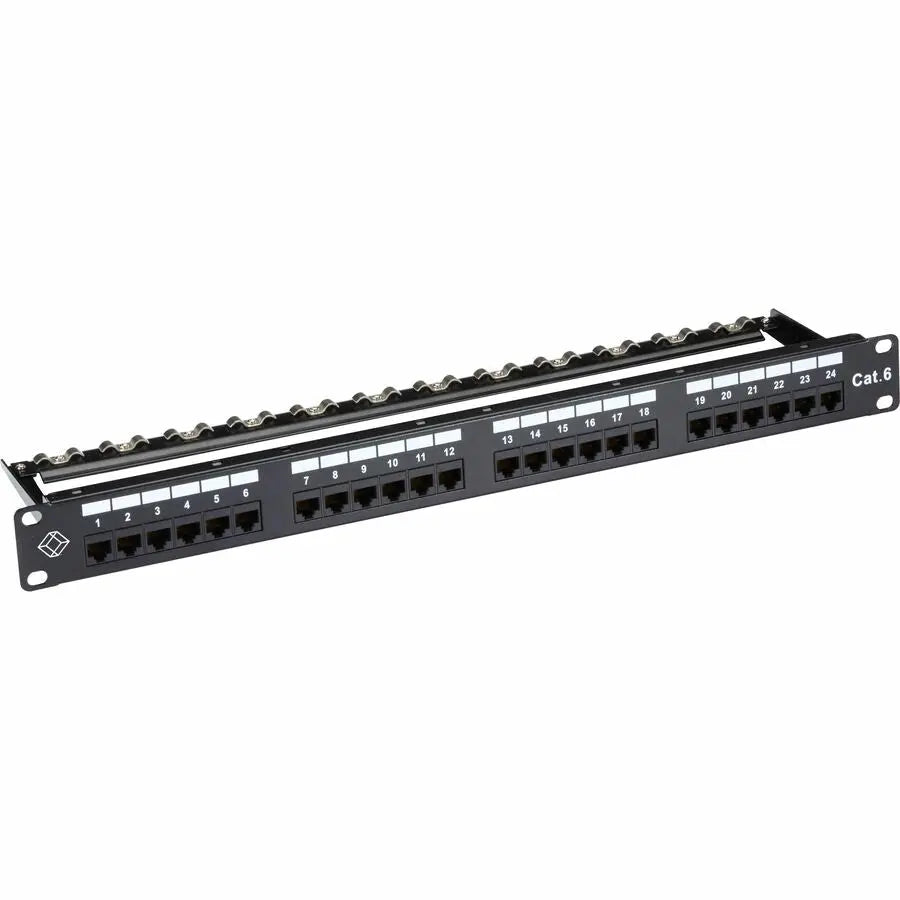

Black Box GigaTrue CAT6 Patch Panel - 1U, Unshielded, 24-Port Network Patch Panel

Black Box GigaTrue CAT6 Patch Panel - 1U, Unshielded, 24-Port

The Black Box GigaTrue CAT6 Patch Panel (Part Number: JPM610A-R9) offers reliable and high-performance connectivity for structured cabling systems. Designed as a 1U unshielded patch panel with 24 ports, it is ideal for expanding network infrastructure in data centers, server rooms, and telecommunications closets. This component-level tested panel ensures superior performance and stability, capable of passing CAT6 specifications, which supports network speeds up to 10 Gbps at 55 meters. The panel's construction includes features that facilitate easy installation and organization, such as cable management bars and a redesigned IDC 110 block with peaks for easier lacing of cables. The panel is supplied with comprehensive labeling for both T568A and T568B wiring standards, providing universal compatibility and simplifying the termination process. Its rolled-edge design adds rigidity to prevent flexing during termination, ensuring a secure and reliable connection for each port. The paired punchdown sequence allows for precise pair twisting within 1-2 inches of the termination point, maintaining signal integrity. Additionally, the panel includes mounting hardware, cable ties, and stuffer caps for a tidy, professional installation. Certified to meet and exceed ANSI/TIA/EIA-568-C.2 standards, the GigaTrue Patch Panel is tested for NEXT, Power Sum NEXT, FEXT, Return Loss, and attenuation up to 250 MHz, making it suitable for high-speed Ethernet applications. Its rugged design, combined with a lifetime warranty, makes it a dependable choice for reliable network infrastructure. Whether upgrading an existing network or installing a new system, this patch panel provides the performance, organization, and durability required for demanding network environments.

Features:

• Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT6.

• Includes cable management bars that make organization easier.

• Meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications.

• Tested for NEXT, Power Sum NEXT, FEXT, Return Loss and attenuation to 250 MHz.

• Universal wiring - panel is supplied with labeling for both T568A and T568B.

• Paired punchdown sequence enables pair twist within 1-2 inches of termination.

• Redesigned IDC 110 block features peaks to make lacing cable easier.

• Rolled-edge construction provides superior panel rigidity to eliminate flex during termination.

• Includes cable ties and mounting hardware.
