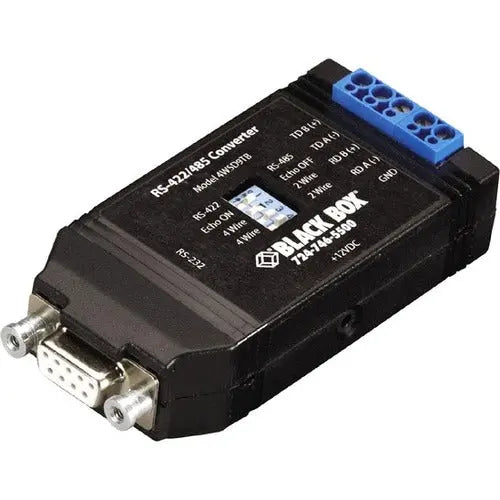

Black Box IC820A RS-232 to RS-422/485 Bidirectional Converter | External Transceiver RS-232 to RS-422 RS-485 converter

Efficient and Reliable RS-232 to RS-422 RS-485 Converter for Serial Communication

Black Box Async RS232 to RS422/485 Interface Converter - DB9 to Terminal Block

The Black Box IC820A is a versatile external transceiver designed to seamlessly convert RS-232 signals to RS-422 or RS-485 standards, supporting both half-duplex and full-duplex configurations. Its automatic driver enablement during spacing states ensures reliable communication without the need for additional programming or handshaking signals, simplifying setup and operation. The device is capable of supporting up to 32 RS-485 devices in a multi-drop network, making it ideal for large-scale industrial or building automation systems. Whether used in point-to-point or multipoint configurations, the IC820A provides robust data transmission at speeds up to 115 kbps over distances reaching 4,000 feet, ensuring long-range connectivity with minimal signal degradation. The converter's user-friendly interface features four switches to easily select between RS-485 2-wire, RS-485 4-wire, or RS-422 operation, with built-in bridging switches eliminating the need for external jumpers. Power options include utilizing port power or an external 120 V AC / 12 V DC power supply (sold separately), with the device also capable of operating without external power if two RS-232 handshake lines are available. Constructed by Black Box Corporation, a trusted manufacturer based in the United States, this product is TAA compliant and environmentally friendly, backed by a five-year limited warranty. The IC820A's compact form factor and straightforward setup make it a practical solution for integrating serial devices across diverse environments, ensuring reliable and flexible communication in complex network architectures.

Features:

• The RS485 driver is automatically enabled during each spacing state on the RS232 side.

• Supports asynchronous data leads only.

• Able to connect up to 32 RS485 devices for large multi-drop networks.

• Operates in point-to-point or multipoint applications.

• Supports 2-wire half-duplex or 4-wire half- or full-duplex configurations.

• Transmit data at speeds up to 115 kbps over distances up to 4000 feet.

Advanced Bidirectional Conversion Technology

The Black Box IC820A stands out as a high-quality RS-232 to RS-422 RS-485 converter designed to provide seamless bidirectional data transmission. It effectively converts between RS-232 serial signals and RS-422/485 differential signals, enabling devices with different communication standards to connect effortlessly. Its external transceiver setup helps maintain signal integrity over long distances and noisy industrial environments, making it invaluable in industrial automation and legacy system integration.

Robust Design for Industrial Applications

Built to withstand challenging environments, the Black Box IC820A features a durable enclosure and reliable electrical protections. This RS-232 to RS-422 RS-485 converter supports extended temperature ranges, ensuring consistent performance in harsh industrial settings. Its plug-and-play design simplifies installation without sacrificing functionality, making it ideal for factory automation, building controls, and data acquisition systems where fast and stable serial communication is critical.

Versatile Compatibility and Easy Integration

This converter is compatible with a wide range of devices including PLCs, modems, and PCs, supporting both point-to-point and multipoint communications via RS-422 and RS-485 networks. The Black Box IC820A’s transparent data handling and automatic flow control minimize configuration efforts. Its external transceiver makes upgrading and troubleshooting simpler, ensuring your serial communication infrastructure remains flexible and future-proof.
