SKU:ICD100A

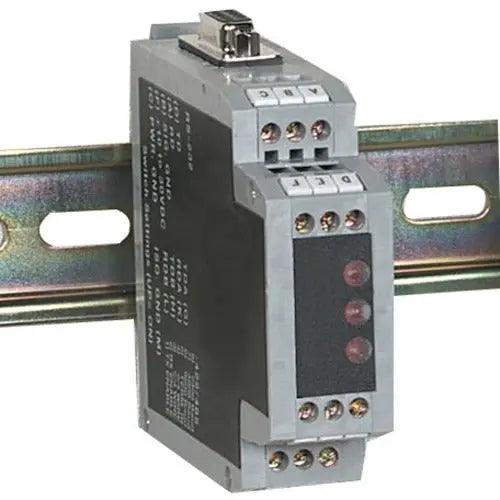

Black Box RS-232 to RS-422/RS-485 DIN Rail Converter
The Black Box ICD100A is a reliable external transceiver designed to convert asynchronous RS-232 signals into RS-422 or RS-485 formats, making it ideal for factory automation, building automation, and process control applications. This device supports data rates ranging from 2,400 bps up to 19,200 bps, enabling flexible communication speeds tailored to different system needs. Its optical isolation ensures robust signal integrity, protecting connected equipment from electrical noise and surges. With support for both half-duplex and full-duplex configurations over twisted-pair cabling, the ICD100A is versatile for various industrial environments. Its ability to transmit data over distances up to 4,000 feet enhances its suitability for large-scale installations, especially where long cable runs are required. The unit operates efficiently within a wide temperature range from -40 to 176 degrees Fahrenheit, ensuring reliable operation in harsh conditions. Designed to be mounted on DIN rails, it offers easy integration into existing control panels and automation systems. Powered by a 10-30 VDC power supply with a modest 100 mA draw, the converter provides a stable and energy-efficient solution for industrial communication networks. Its switch-selectable data rates allow for quick adjustments based on specific application requirements, simplifying setup and maintenance. Built in the United States by Black Box Corporation, the ICD100A complies with TAA regulations and comes with a one-year warranty, reflecting its quality and durability.
Features:
The Black Box RS-232 to RS-422 converter ICD100A delivers stable serial communication by converting RS-232 signals to RS-422/485 standards. Designed for industrial environments, this DIN rail mounted converter supports long distance data transmission and multi-drop networking with minimized signal degradation. It ensures compatibility with devices using different serial interfaces, allowing seamless integration into existing systems. Its reliable performance is ideal for industrial automation, process control, and data acquisition applications requiring efficient and noise-immune communication.
This converter is specifically engineered for quick and secure mounting on standard DIN rails, simplifying installation in control panels and industrial cabinets. The compact design saves space while maintaining robust mechanical and electrical connections. Its rugged housing protects internal components from dust, vibrations, and temperature fluctuations common in industrial settings. The easy-to-access terminal blocks and clear labeling further streamline setup, reducing downtime and installation complexity for technicians working in challenging industrial environments.
The Black Box ICD100A supports enhanced data integrity with built-in signal isolation and surge protection, increasing resilience against electrical noise and voltage spikes. It also offers configurable data rates up to 115.2 kbps, matching various device requirements. The converter’s compatibility with both RS-422 and RS-485 standards enables multi-point communication configurations, expanding its versatility. These features make the converter a dependable solution for bridging legacy RS-232 equipment with modern industrial networks efficiently and securely.
