Black Box ICD102A DIN Rail Signal Repeater with Opto-Isolation for RS-422/RS-485 and RS-232 Networks DIN rail RS-422 RS-485 repeater

Optimized Performance with the DIN Rail RS-422 RS-485 Repeater

Black Box DIN Rail Repeaters with Opto-Isolation, RS-422/RS-485

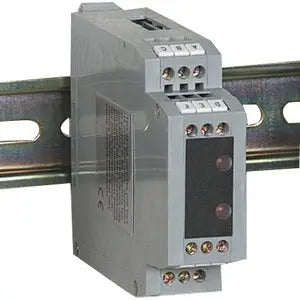

The Black Box ICD102A DIN Rail Signal Repeater is designed for reliable communication extension and isolation in industrial and data communication systems. This device acts as a repeater, isolator, and extender for both RS-422/RS-485 and RS-232 interfaces, ensuring robust data transmission over longer distances and complex networks. Its RS-422/RS-485 model isolates equipment and supports selectable data rates from 2400 bps up to 115.2 kbps, allowing systems to exceed typical node limitations. The RS-232 model isolates critical channels including TD, RD, RTS, and CTS, supporting 115.2 kbps across all four channels and extending the signal range beyond 50 feet (15.2 meters). These features make the ICD102A suitable for industrial automation, security systems, and other communication-intensive applications where signal integrity and system extension are crucial.

Features:

• Acts as a repeater, isolator, and extender for RS-422/RS-485 and RS-232 signals

• RS-422/RS-485 model isolates equipment and supports data rates from 2400 bps to 115.2 kbps

• Supports system expansion beyond 32 nodes in RS-422/RS-485 networks

• RS-232 model isolates TD, RD, RTS, and CTS channels with supports for 115.2 kbps

• Extends RS-232 signals beyond 50 feet (15.2 meters) to improve communication range

• Designed for DIN rail mounting for easy integration in industrial control panels

• Built in the United States with a limited 1-year warranty for reliable performance

Robust Signal Amplification for Long-distance Communication

The Black Box ICD102A is an advanced DIN rail RS-422 RS-485 repeater designed to amplify and extend the range of your serial communication networks. By regenerating and strengthening the signals on RS-422 and RS-485 lines, this repeater ensures data integrity over long distances, preventing signal degradation and communication errors. Ideal for industrial and commercial environments, it supports RS-232 networks as well, providing flexibility for mixed protocol applications. This repeater improves network reliability and reduces downtime, making it an essential component for critical data transmission systems.

Enhanced Protection with Opto-Isolation Technology

Equipped with opto-isolation, the ICD102A effectively protects connected devices from electrical noise, voltage spikes, and ground loop issues that commonly disrupt serial communication networks. This isolation helps maintain stable and error-free signal transmission even in harsh industrial environments with high electromagnetic interference. The implementation of opto-isolation increases the lifespan of connected hardware and minimizes the risk of network failures, assuring consistent operational performance in diverse application settings.

Easy Installation and Versatile Connectivity

Installing the Black Box ICD102A repeater is straightforward with its standardized DIN rail mounting, which fits seamlessly into existing control cabinets and industrial setups. The device supports multiple serial communication standards, including RS-422, RS-485, and RS-232, allowing for versatile network configurations. Its compact design saves valuable space while providing reliable connectivity for your serial data lines. Whether upgrading legacy systems or expanding complex networks, this repeater offers user-friendly deployment and hassle-free maintenance.
