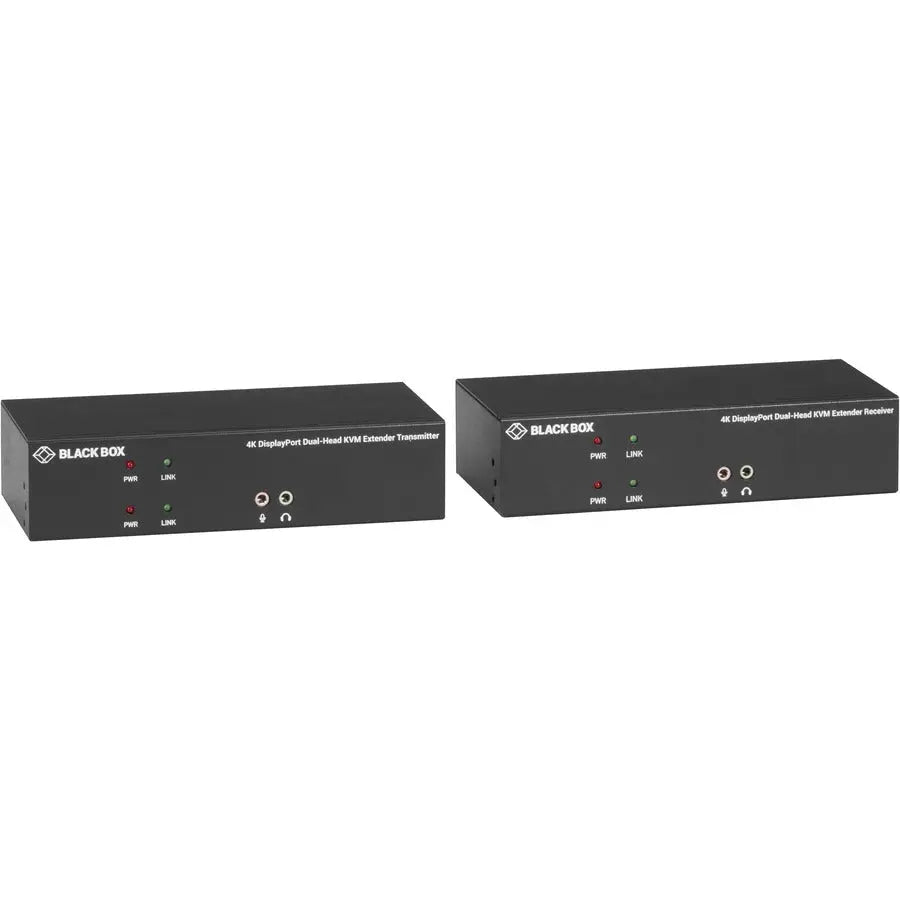

Black Box KVX KVXLCDPF-200 Dual-Head 4K DisplayPort Video Extender Transmitter and Receiver

Black Box KVX KVXLCDPF-200 Video Extender Transmitter/Receiver

The Black Box KVX KVXLCDPF-200 is a comprehensive video extension solution designed for high-resolution applications that require reliable long-distance connectivity. This dual-head DisplayPort extender transmits UHD video at resolutions up to 3840x2160 at 30Hz, enabling crystal-clear 4K visuals over single-mode fiber optic cables up to 30 kilometers in length. Its robust design supports both local and remote units connecting at distances of up to 10 km using SFP modules below 1250 Mbps, making it ideal for industrial, medical, and control environments where secure and high-quality video transmission is essential. The included fiber optic cables and power supplies ensure immediate deployment, reducing setup time and simplifying installation processes.

Designed for versatility, the KVX series supports transparent USB 2.0 extension for HID devices such as keyboards, mice, and mass storage devices, allowing seamless integration with existing peripherals. The serial RS-232 channel facilitates connection to serial devices like touchscreens, barcode scanners, or serial terminals, providing additional control options without requiring separate communication lines. Bi-directional audio support via speaker and microphone connections enhances multimedia capabilities, making it suitable for command centers, surveillance stations, and remote monitoring stations. The local video port loopback feature allows operators to monitor the transmitter unit directly, ensuring system integrity and troubleshooting ease.

This TAA-compliant solution is built with environmentally friendly components and complies with RoHS standards, reflecting Black Box's commitment to sustainability. Its compact design and included mounting brackets enable flexible installation in various environments, whether mounted on a desk or rack. Backed by a two-year limited warranty and free lifetime technical support, the KVX KVXLCDPF-200 provides a reliable, cost-effective method to extend high-resolution video and peripheral connectivity over long distances while maintaining high quality, security, and ease of use.

Features:

• DisplayPort dual-head 4K transmission up to 30 km over singlemode cable

• Local and remote units connect at distances of up to 10 km using SFP below 1250 Mbps

• Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz

• Transparent USB 2.0 extension supports HID devices, mass storage devices

• Supports RS-232 peripheral (serial) devices

• Bi-directional audio via speaker/mic connection

• Local video port loopback for monitoring on transmitter (TX) unit
