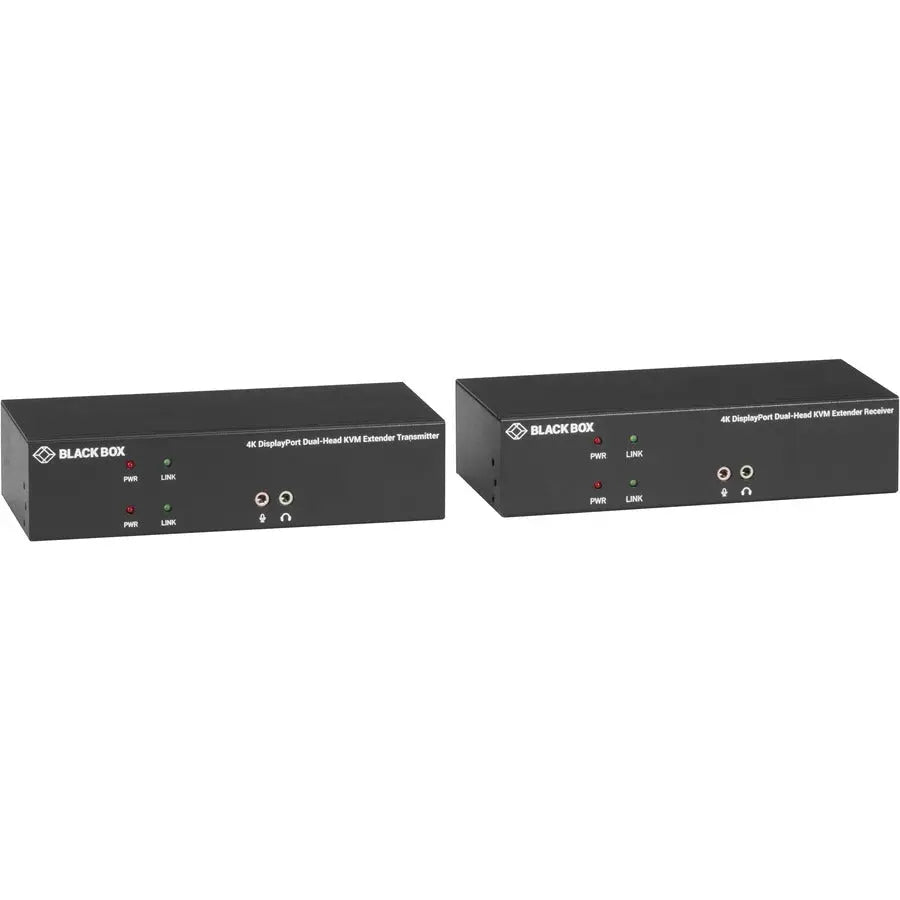

Black Box KVXLCDP-200 Dual-Head DisplayPort 4K KVM Extender with RS-232 and Audio Support

Black Box KVXLCDP-200 Video Extender Transmitter/Receiver

The Black Box KVXLCDP-200 is a versatile dual-head DisplayPort 4K video extender designed to transmit high-resolution video and peripheral data over long distances using standard CAT5e or CAT6 cables. This device allows users to control computers or servers situated up to 100 meters (328 feet) away, making it ideal for secure data centers, industrial environments, and control rooms where space efficiency and remote access are critical. The extender supports UHD video resolution up to 3840x2160 at 30Hz, ensuring crisp and clear visuals across multiple monitors. It includes both transmitter and receiver units, each equipped with local video ports for monitoring and easy setup, and connects seamlessly via two CAT5e cables for a reliable, cost-effective solution.

Features:

• DisplayPort dual-head 4K transmission up to 100 meters over standard CATx cable

• Local and remote units connect at distances of up to 330 feet (100 meters) using two CAT5e cables

• Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz

• Transparent USB 2.0 extension supports HID devices and mass storage devices

• Supports RS-232 serial peripheral devices such as touchscreens and barcode scanners

• Bi-directional audio via speaker/mic connection enhances multimedia capabilities

• Local video port loopback for easy monitoring on the transmitter (TX) unit
