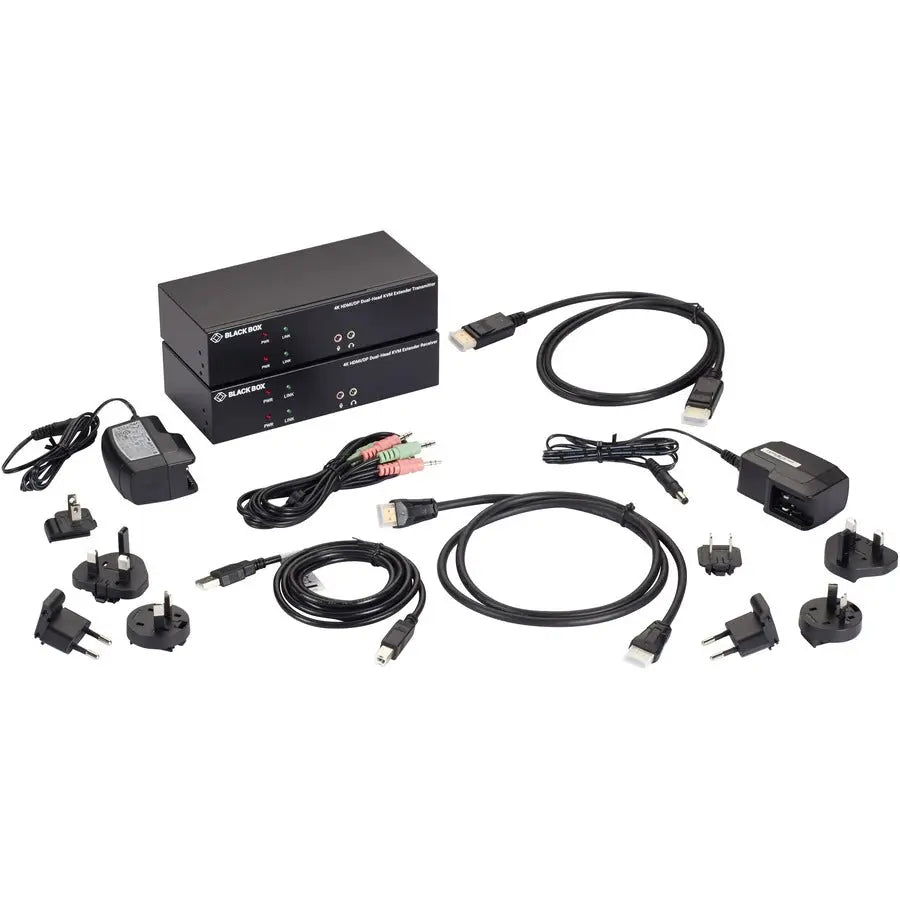

Black Box KVXLCHDP-200 KVM Extender with Dual HDMI/DisplayPort Support and 100m Range

The Black Box KVXLCHDP-200 KVM Extender provides a reliable solution for extending your computer or server control over long distances using standard CAT5e or CAT6 cables. With support for both HDMI and DisplayPort inputs and dual HDMI outputs, this extender allows users to connect multiple high-resolution monitors seamlessly. Its capability to transmit 4K video at 30Hz over distances up to 328 feet (100 meters) makes it an excellent choice for industrial, medical, or control room environments where high-quality video and reliable remote access are essential.
Designed for versatility, the KVXLCHDP-200 features transparent USB 2.0 extension supporting HID devices and mass storage devices, enabling smooth peripheral integration without additional configuration. The built-in RS-232 serial channel allows connection to serial peripherals such as touchscreens or barcode scanners, simplifying setup and operations. Its local video port loopback feature facilitates monitoring directly at the transmitter unit, providing real-time oversight without the need for additional equipment.
This product also supports bi-directional audio, allowing for microphone and speaker connections, which enhances communication clarity during remote operation. The compact desktop form factor ensures easy installation in various environments, and the included mounting brackets provide flexible placement options. Backed by a two-year warranty and TAA compliance, the KVXLCHDP-200 is suitable for secure applications, such as data centers or sensitive control operations, where maintaining data integrity and safety is crucial.Perfect for transportation control centers, industrial automation, medical facilities, or extended workstation setups, this KVM extender combines high performance with cost-effective features. The package includes all necessary cables and power supplies, ensuring immediate deployment without additional purchases. Its RoHS compliance underscores its environmentally friendly design, aligning with modern sustainability standards.

Features:

• DisplayPort or HDMI dual head transmission up to 100 meters over standard CATx cable

• Local and remote units connect at distances of up to 330 feet (100 meters) using two CAT5e cables

• Supports DisplayPort and HDMI video resolutions up to 3840x2160 at 30Hz

• Transparent USB 2.0 extension supports HID devices and mass storage devices

• Supports RS-232 peripheral (serial) devices for serial communication

• Bi-directional audio via speaker and microphone connection

• Local video port loopback for monitoring on transmitter (TX) unit
