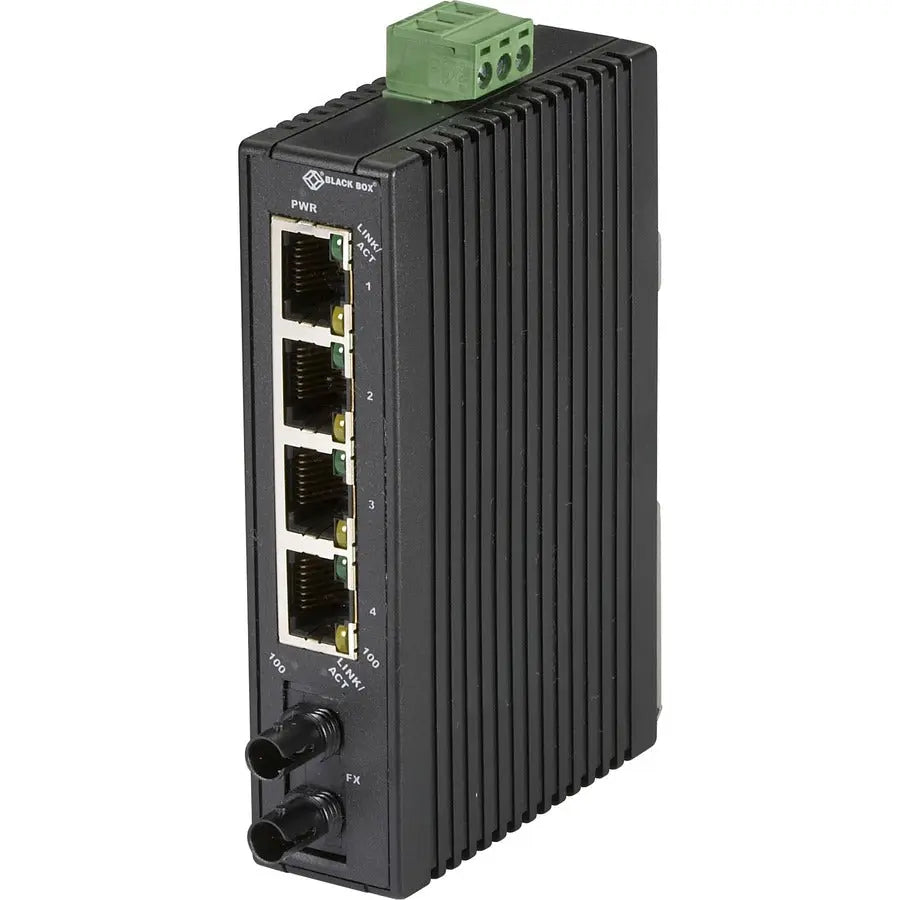

Black Box LBH 120 Ethernet Switch with 4 RJ45 Ports and Fiber Support

The Black Box LBH 120 Ethernet Switch is a reliable and cost-effective solution for expanding your industrial network. Designed with an industrial-strength plastic case, this switch is built to withstand harsh environments and complies with IEC 61000-Part 6-2 standards for electromagnetic compatibility (EMC), making it suitable for dusty or dirty industrial settings. Its DIN rail mountable design allows for easy installation in various industrial environments, with the mounting kit included for convenience.
The LBH 120 offers four 10/100 Mbps RJ45 ports providing full wire-speed forwarding, ensuring efficient data transfer across your network. It also features a 100 Mbps fiber port with multimode (MM) ST interface capable of supporting distances up to 2 kilometers, enabling flexible connectivity for remote or segmented network segments. Supporting up to 2048 MAC addresses and equipped with a 384 KB buffer memory, this switch handles significant network traffic with ease.
The device operates on a wide 12-48V DC power input and is suitable for temperature ranges from -25°C to +60°C (-13°F to +140°F), making it appropriate for challenging industrial environments. The LBH 120 is TAA compliant and environmentally friendly, aligning with industry standards. The package includes the Ethernet switch and a DIN rail mounting kit, and a separate power supply can be ordered if needed. Black Box offers a five-year limited warranty, ensuring long-term reliability and support for your network infrastructure.

Features:

• 12-48VDC power input for versatile installation options

• Includes DIN rail mounting kit for easy setup

• Suitable for dusty or dirty environments with temperature tolerance from -13°F to +140°F (-25°C to +60°C)

• One 100 Mbps fiber port with multimode (MM) ST interface supporting a 2 km range

• Four 10/100 Mbps RJ45 switch ports for reliable network connectivity
