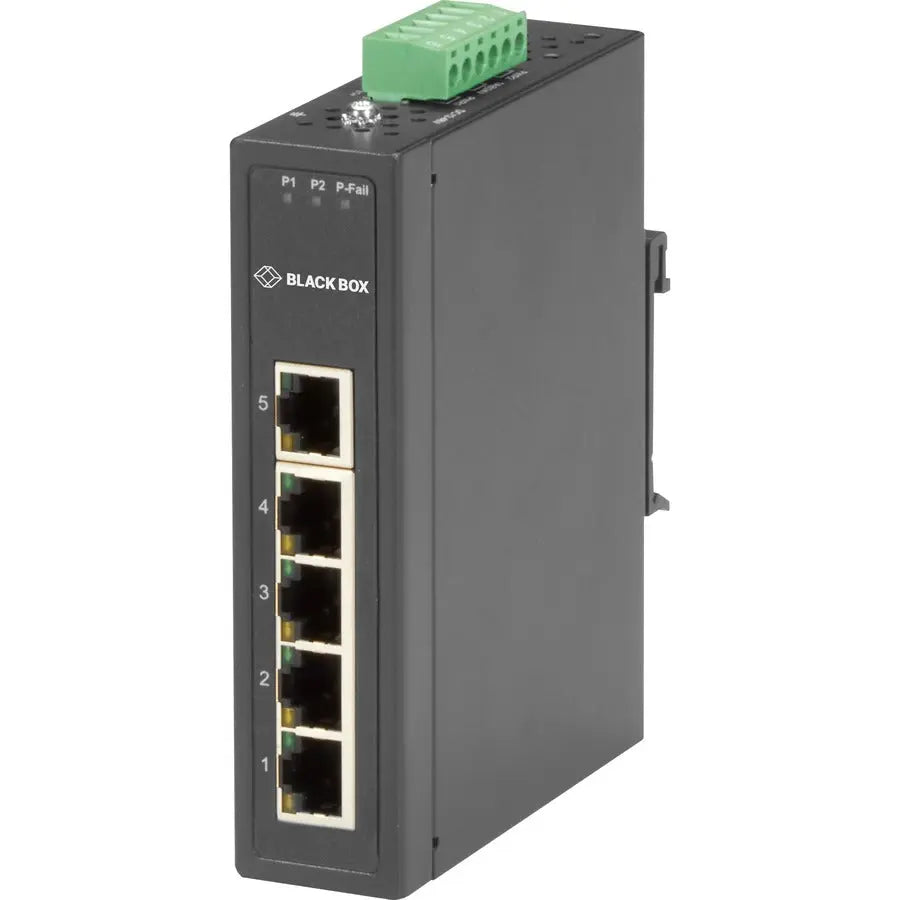

Black Box LBH3050A Industrial 10/100 Mbps Ethernet Switch - Unmanaged, Extreme Temperature, 5-Port

Black Box Industrial 10/100-Mbps Ethernet Switch - Unmanaged, Extreme Temperature, 5-Port

The Black Box LBH3050A Industrial Ethernet Switch is designed for deployment in harsh environments where standard switches would fail. Built with a rugged IP30 metal housing, this unmanaged switch can operate reliably across a wide temperature range from -40°F to 167°F (-40°C to 75°C), making it ideal for outdoor security surveillance, building automation, and industrial automation applications. Its sturdy construction ensures resistance to dust, dirt, and extreme conditions, providing consistent network connectivity in challenging settings. The switch features four 10/100 Mbps Ethernet ports and a dedicated 10/100/100 Mbps uplink port, all autosensing for speed and duplex, with Auto MDI/MDI-X capabilities to eliminate the need for crossover cables. The plug-and-play design simplifies installation, making it suitable for various environments without extensive configuration. This switch supports redundant 12-48 VDC power inputs, protected by a polarity reverse protect and an overload resettable fuse, ensuring continued operation even during power fluctuations. Alarm indicators include port-specific LEDs for link and collision status, along with a P-Fail LED that alerts administrators to power failures. Additional features like broadcast storm protection and support for mounting on a DIN rail or wall enhance its versatility for security, military, and industrial applications. The device also includes a panel mount kit, ensuring flexible installation options in space-constrained environments. With a limited one-year warranty and compliance with RoHS environmental standards, the Black Box LBH3050A provides a reliable, durable solution for critical network infrastructure in demanding conditions. Its straightforward setup, sturdy design, and advanced protection features make it an excellent choice for industrial and outdoor network deployments.

Features:

• Includes panel mount kit for flexible installation

• Mounts on a DIN rail or on a wall for versatile deployment

• s broadcast storm protection to prevent network disruptions

• Ideal for security, surveillance, building automation, oil/gas facilities, military, and factory automation

• Supports redundant 12-48 VDC input power with a P-Fail relay for power failure alerts

• Operates reliably in extreme temperatures from -40°F to 167°F (-40°C to 75°C) with an IP30 enclosure

• Includes four 10/100 Mbps switch ports and one 10/100/100 Mbps uplink port for flexible connectivity
