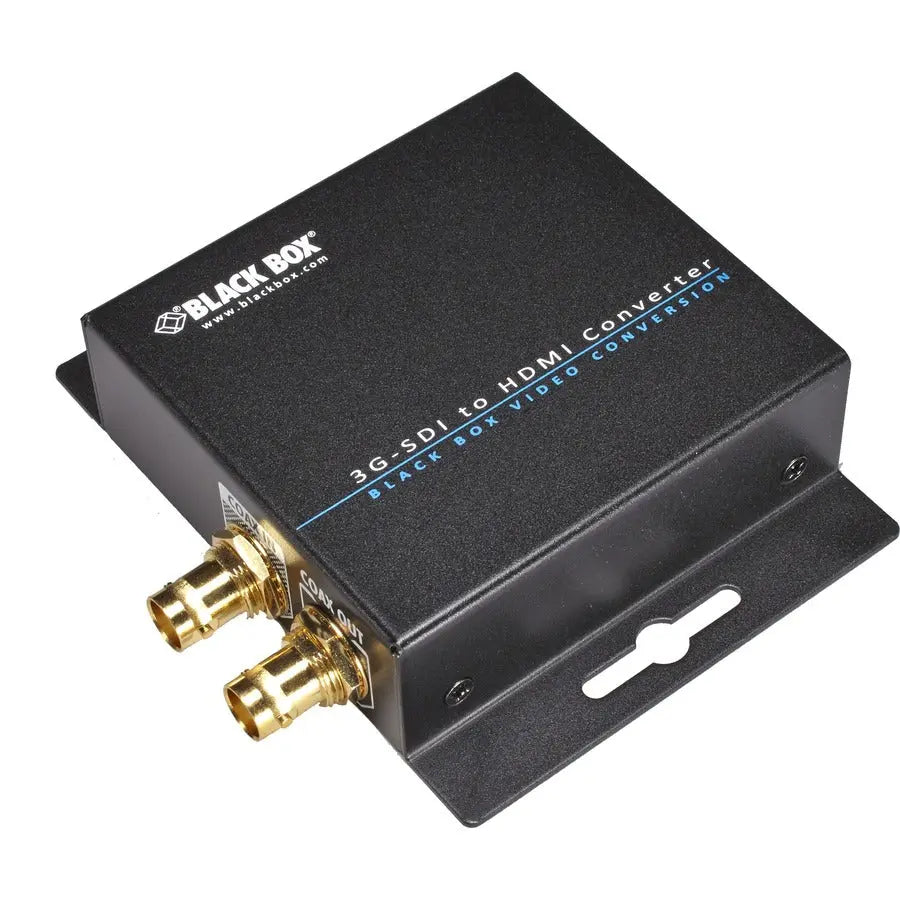

Black Box VSC-SDI-HDMI 3G-SDI/HD-SDI to HDMI Converter for Professional Video Monitoring

The Black Box VSC-SDI-HDMI converter is an essential tool for professional video and broadcast applications, enabling seamless conversion of 3G-SDI, HD-SDI, or SD-SDI signals to HDMI output. Designed for high-end broadcast studios, post-production facilities, digital cinema, and AV setups, this device allows users to display uncompressed digital video on consumer-grade HDTVs without compromising signal integrity. Its compact, wall-mountable form factor makes it easy to integrate into existing setups, providing a reliable solution for high-quality video monitoring.

This converter boasts digitally pure SDI-to-HDMI conversion, ensuring that both video and audio signals are transmitted without loss or degradation. It supports up to eight channels of high-definition audio, including 7.1- and 5.1-channel surround sound, making it ideal for applications requiring immersive audio playback. The device processes bit rates from 270 Mbps up to 2.97 Gbps, covering all SDI standards, including 3G-SDI, HD-SDI, and SD-SDI, ensuring compatibility with a wide range of professional equipment.

One notable feature is the SDI loop-out via a second coax connector, allowing users to monitor SDI signals locally or daisy-chain multiple SDI devices. The converter also reclocks SDI data, reducing jitter and maintaining signal quality over longer cable runs. Autodetection of SDI video standards simplifies setup, while cable equalization compensates for signal loss over extended distances. The device supports 1080p HDMI video with Deep Color depth, providing vibrant, high-resolution output.

The VSC-SDI-HDMI converter requires no software or driver installation, allowing for quick deployment in diverse environments. It includes an AC power adapter, wallmount ears, screws, and a user manual, making installation straightforward. With a three-year limited warranty, it offers reliability and peace of mind, backed by Black Box Corporation’s reputation for quality. Whether you are adding an HDMI display to a broadcast system or creating a versatile AV monitoring station, this converter provides a robust, cost-effective solution for digital video conversion needs.

Features:

• No software or driver installation required.

• Provides up to eight-channel audio support.

• Supports 1080p HDMI video with Deep Color depth.

• Reclocks SDI data for low-jitter video output.

• Autodetects SDI video standard on its 75-ohm coax input.

• Handles higher SDI bit rates of 2.97 Gbps (3G-SDI).

• Supports 3G-SDI (3 Gbps), HD-SDI, and SD-SDI input on coax BNC.

• Ideal for adding an HDMI screen to high-end broadcast or AV applications.

• Includes SDI loopout for local monitoring or daisy-chaining.

• Converts serial digital interface video for output to HDMI display.
