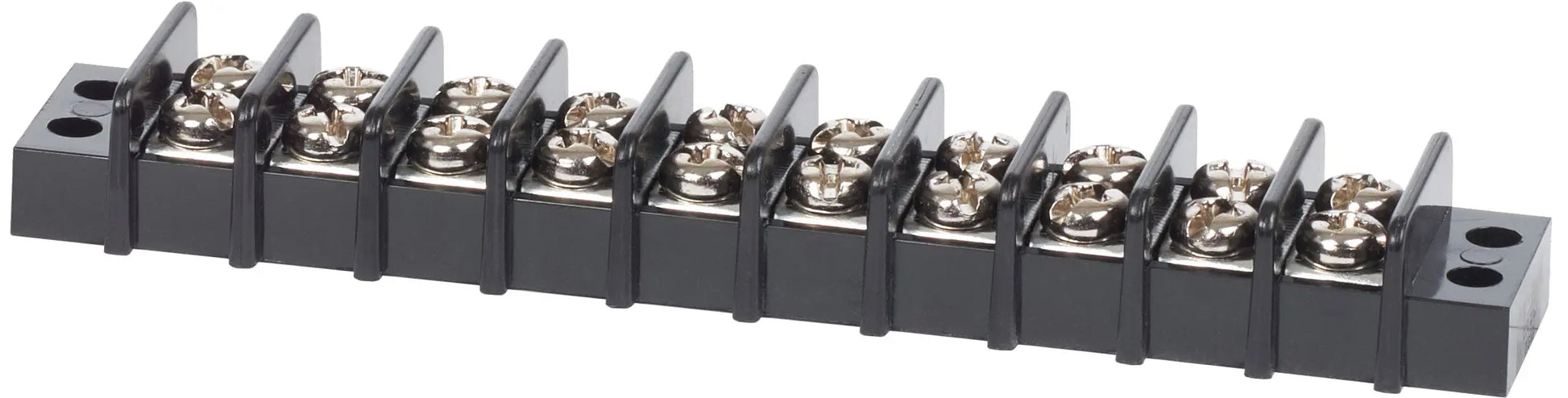

Blue Sea Systems Terminal Block 20A - 10 Circuit

• Closed back design completely insulates power from the mounting surface


• Each screw pair is one isolated circuit


• Jumpers allow creation of common circuits

Circuits
10

Length
4.41in (112.01 mm)

Maximum Voltage
300V AC/DC

Continuous Rating
20A

Base Material
UL 94 V0, PC

Bus Material
Nickel-Plated Brass

Mounting Screw
#6 [M3.5]

Screw Material
Stainless Steel

Screw Terminal Torque
7 in-lb (0.79 Nm)

Terminal Screws
M3.5

Wire Terminal Size
#6 [M3]
