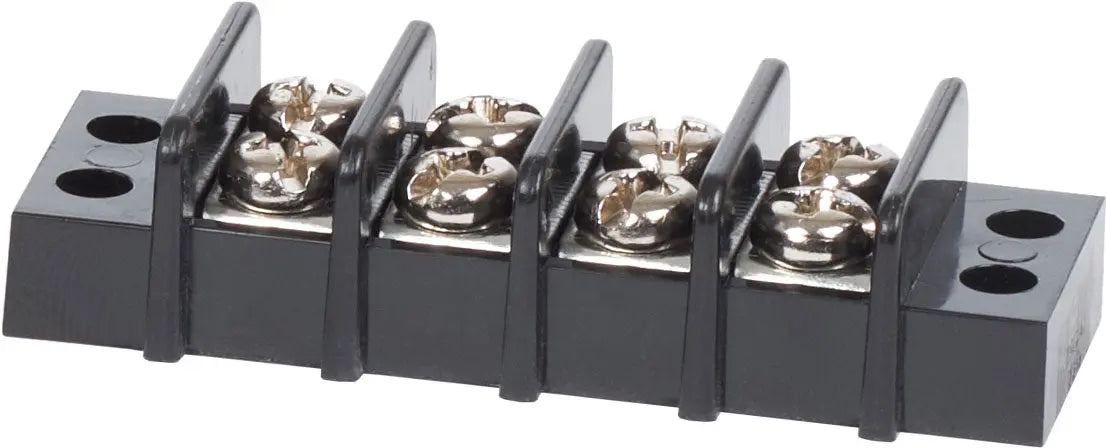

Blue Sea 20A Terminal Block 4 Circuit

Blue Sea 20A Terminal Block 4 Circuit

Blue Sea Systems Terminal Block 20A - 4 Circuit

• Closed back design completely insulates power from the mounting surface


• Each screw pair is one isolated circuit


• Jumpers allow creation of common circuits

Circuits
4

Length
2.17in (55.12 mm)

Maximum Voltage
300V AC/DC

Continuous Rating
20A

Base Material
UL 94 V0, PC

Bus Material
Nickel-Plated Brass

Mounting Screw
#6 [M3.5]

Screw Material
Stainless Steel

Screw Terminal Torque
7 in-lb (0.79 Nm)

Terminal Screws
M3.5

Wire Terminal Size
#6 [M3]
