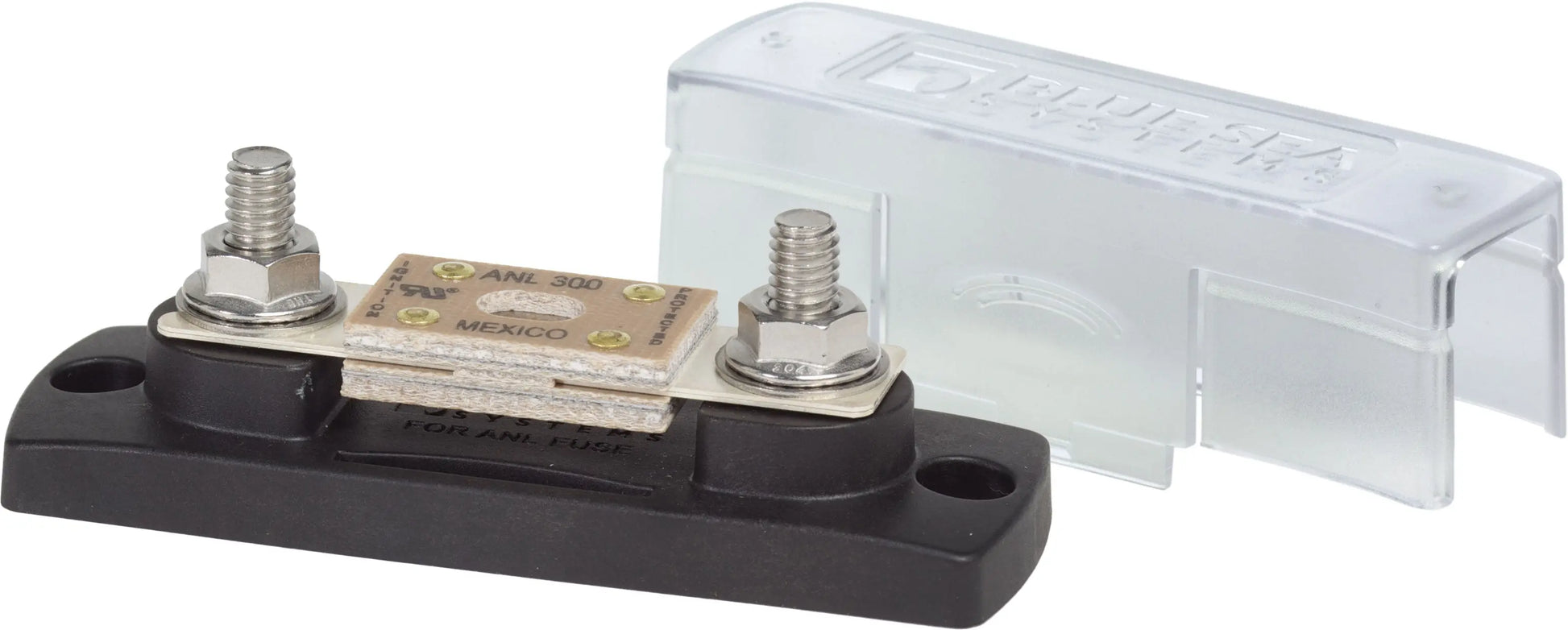

Blue Sea 5005 ANL Fuse Block with Insulating Cover 35 to 300 Amp

Blue Sea 5005 ANL Fuse Block with Insulating Cover 35 to 300 Amp

Blue Sea Systems ANL Fuse Block with Insulating Cover - 35 to 300A

• Accepts 5/16" (M8) ring terminals


• For use on systems up to 32 Volts DC


• Swing out design allows replacement of the fuse without removing fasteners


• Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact


• UL 94-V0 base resists high heat


• Insert molded studs ensure secure fuse mounting


• Insulating cover satisfies ABYC/USCG requirements


• Cover breakouts allow wire access in any direction


• Fuse sold separately

Maximum Voltage
32V DC

Base Material
Reinforced Polycarbonate

Fuse Mounting Blocks
Tin-Plated Copper

Maximum Cable Size
2/0 AWG

Maximum Torque
110 in-lb (12.43 Nm)

Terminal Stud Size
5/16" - 18 (M8)
