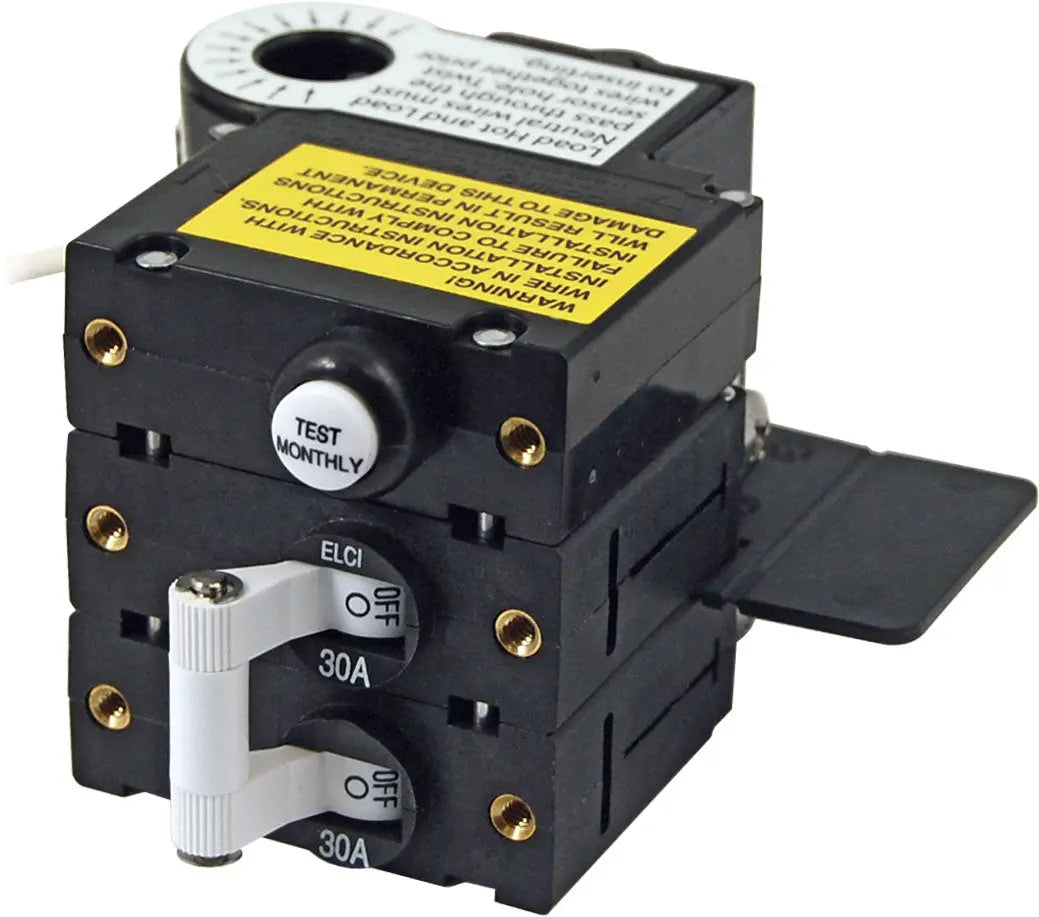

Blue Sea A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker

Blue Sea A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker Features and Benefits

Blue Sea A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

Model: 3106100-BSS

• Trips on short circuit, overload, or leakage to ground
• Front panel mount-installed in a power distribution panel

Specifications

Amperage30A

Actuator Style
Toggle

Poles
2

Ignition Protected
Yes

Maximum Voltage
240V AC

120V AC per pole

Circuit Breaker Type
Magnetic Hydraulic - trip free

nterrupt Capacity
5000A

Minimum Operating Temperature
-35 deg C

Maximum Operating Temperature
v

Leakage Trip Amps
30mA

Mounting Screw
#6-32 Stainless Steel

Mounting Screw Torque
6 in-lb (0.68 Nm)

High-Quality Electrical Protection with Blue Sea

The Blue Sea A-Series ELCI 30A 120v AC double pole main circuit breaker offers robust and reliable electrical protection for marine and industrial applications. Designed with advanced technology, this breaker ensures safe interruption of power during fault conditions to protect your valuable electrical systems. Its double pole design allows simultaneous disconnection of both hot wires, increasing safety and compliance with electrical codes. Blue Sea's reputation for durable, high-performing products makes this circuit breaker a trusted solution for preventing electrical hazards effectively.

Advanced ELCI Technology for Enhanced Safety

This Blue Sea circuit breaker is equipped with Earth Leakage Circuit Interruption (ELCI) technology, designed to detect earth faults quickly and accurately. The 30A rating with 120v AC capability provides dependable protection, reducing the risk of electrical shocks or fire caused by leakage currents. Its sensitive detection mechanism acts promptly to isolate faults, ensuring protection for equipment and people alike. This feature makes the Blue Sea A-Series ideal for settings that demand stringent safety requirements and reliable fault management.

Durability, Ease of Installation, and Maintenance

Blue Sea's A-Series breaker combines durability with user-friendly features, simplifying installation and maintenance. The compact size and standardized mounting options facilitate quick setup in panel boards or distribution systems. Manufactured with corrosion-resistant materials, this breaker withstands harsh environments, making it particularly suitable for marine use. Routine operation and testing are straightforward, ensuring long-term reliability. Choosing Blue Sea means investing in a circuit breaker that delivers both superior performance and ease of service over its lifespan.
