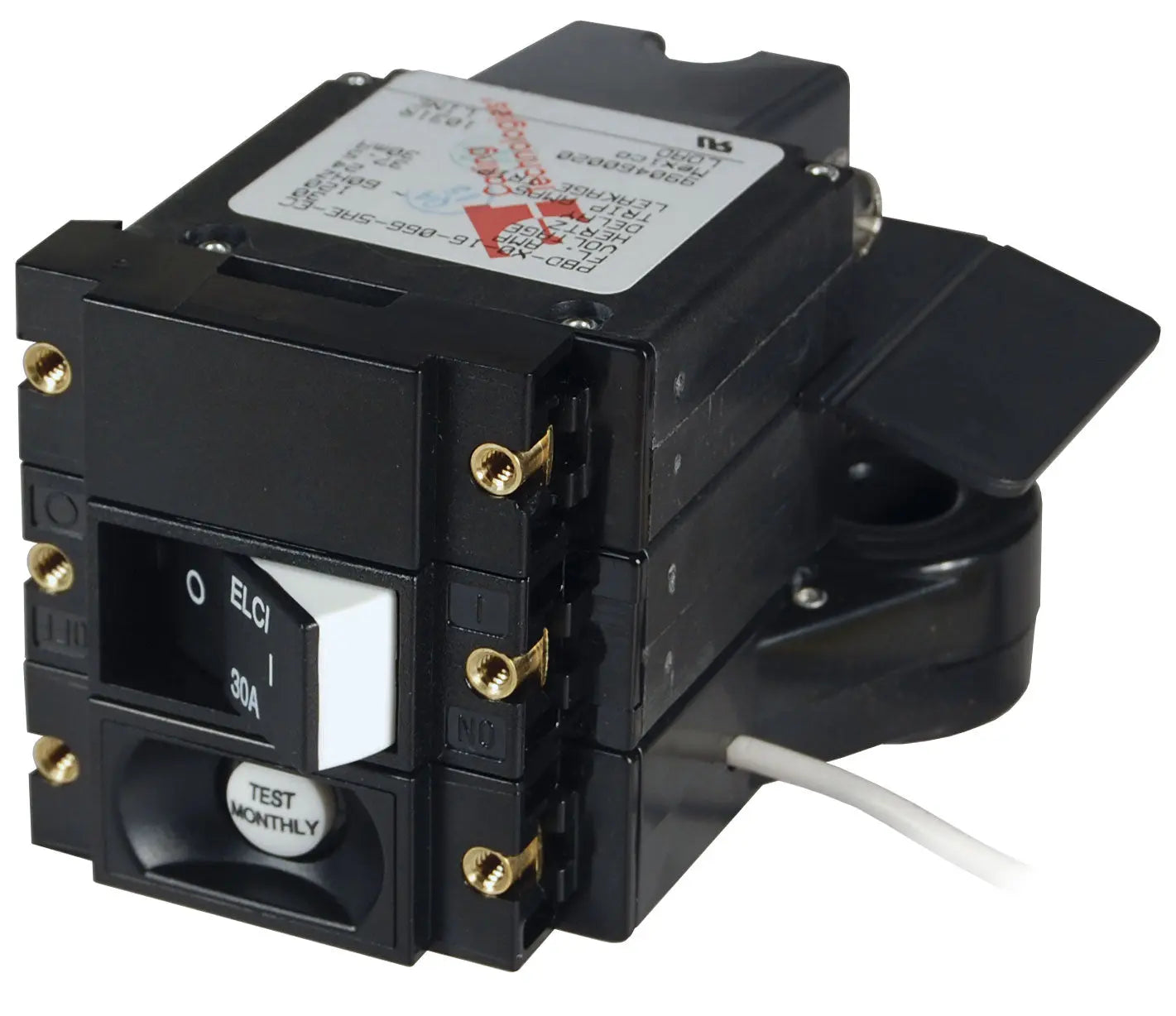

Blue Sea A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker

Blue Sea A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker Features and Benefits

Blue Sea A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

Model: 3102100

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground
• Front panel mount-installed in a power distribution panel

Specifications

Amperage30A

Actuator Style
Flat Rocker

Poles
2

Ignition Protected
Yes

Maximum Voltage
240V AC

120V AC per pole

Circuit Breaker Type
5000A

Minimum Operating Temperature
-35 deg C

Maximum Operating Temperature
65 deg C

Leakage Trip Amps
30mA

Mounting Screw
#6-32 Stainless Steel

Mounting Screw Torque
6 in-lb (0.68 Nm)

Switching Cycles
10000

Weight
0.85lb (0.39 kg)

Reliable Electrical Protection with Blue Sea Technology

The Blue Sea A-Series ELCI 30A 120v AC double pole main circuit breaker is engineered for high reliability and seamless electrical protection. Designed to prevent electrical faults, this breaker ensures your system operates safely by automatically disconnecting power during overloads or short circuits. The 30-amp rating supports a variety of applications, while the double pole design manages 120 volts AC power efficiently. Blue Sea’s commitment to quality means you get durable components that withstand harsh conditions, especially in marine environments. This breaker is an essential component for preventing fire hazards and protecting your valuable equipment.

Advanced ELCI Technology for Enhanced Safety

Incorporating advanced ELCI (Equipment Leakage Circuit Interrupter) technology, the Blue Sea A-Series breaker adds an extra layer of safety by detecting ground faults and leakage currents. This feature protects against electrical shocks and reduces the risk of damage by quickly interrupting the electrical flow when a fault is detected. Suitable for both residential and marine use, the ELCI functionality ensures compliance with safety regulations and provides peace of mind. Users benefit from a dependable device that safeguards both people and equipment from unexpected electrical hazards.

Easy Installation and Maintenance

The Blue Sea A-Series 30A circuit breaker is designed with user convenience in mind, offering straightforward installation and simple maintenance. Its compact form factor and clear labeling make wiring intuitive for professionals and DIY enthusiasts alike. The double pole configuration allows for efficient control of both phases of 120v AC power, while the breaker’s robust construction ensures reduced wear and tear over time. Additionally, Blue Sea’s customer support and detailed documentation simplify the setup process, enabling faster deployment and reliable long-term performance.
