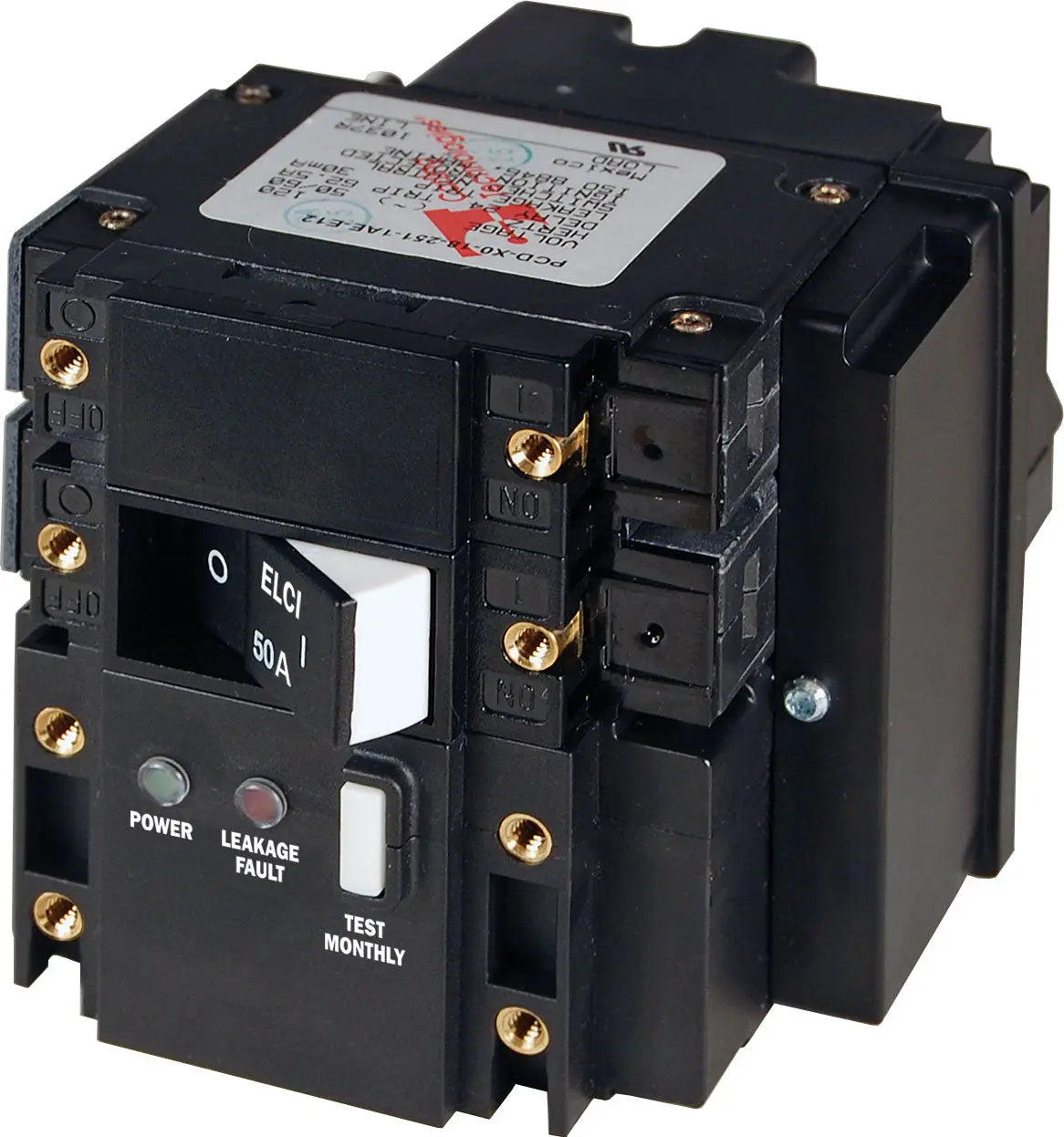

Blue Sea C-Series ELCI 50A 120v AC Double Pole Main Circuit Breaker

Blue Sea C-Series ELCI 50A 120v AC Double Pole Main Circuit Breaker Features and Benefits

Blue Sea C-Series ELCI 50A 120v AC Double Pole Main Circuit Breaker

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

Model: 3103-BSS

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground
• Front panel mount-installed in a power distribution panel

Specifications

Amperage50A

Actuator Style
Flat Rocker

Poles
2

Ignition Protected
Yes

Maximum Voltage
120V AC per pole

Circuit Breaker Type
Magnetic Hydraulic - trip free

Interrupt Capacity
5000a

Minimum Operating Temperature
-35 deg C

Maximum Operating Temperature
66 deg C

Leakage Trip Amps
30mA

Mounting Screw
#6-32 Stainless Steel

Mounting Screw Torque
6 in-lb (0.68 Nm)

Switching Cycles
10000

Weight
0.85lb (0.39 kg)

High-Quality Protection with Blue Sea Technology

The Blue Sea C-Series ELCI 50A 120v AC double pole main circuit breaker delivers dependable protection for electrical systems, especially in marine and industrial environments. This breaker is expertly engineered to detect earth leakage currents, preventing potential hazards and protecting both equipment and users. With its robust construction and reliable performance, the Blue Sea breaker ensures your electrical system remains safe under demanding conditions. Its double pole design effectively interrupts both live and neutral wires, enhancing safety standards.

Efficient and Easy Installation

This Blue Sea circuit breaker is designed for quick, hassle-free installation. The compact 50A 120v AC model fits standard breaker panels, allowing seamless integration into existing electrical setups. Its straightforward mounting and wiring features enable technicians or DIY enthusiasts to install it without complications. The intuitive design also supports easy maintenance and inspection, reducing downtime. Choosing Blue Sea means investing in a product that balances advanced safety with user-friendly operation.

Durability and Compliance for Marine and Industrial Use

Constructed with premium materials, the Blue Sea C-Series breaker withstands harsh environments, including moisture and vibration common in marine and industrial settings. It complies with stringent industry standards ensuring reliable earth leakage detection and interruption. This compliance guarantees peace of mind for operators requiring high safety levels. Furthermore, the breaker’s corrosion-resistant finish extends its service life, reinforcing Blue Sea’s reputation for durability and quality. It is an excellent choice for anyone needing robust and trusted electrical protection.
