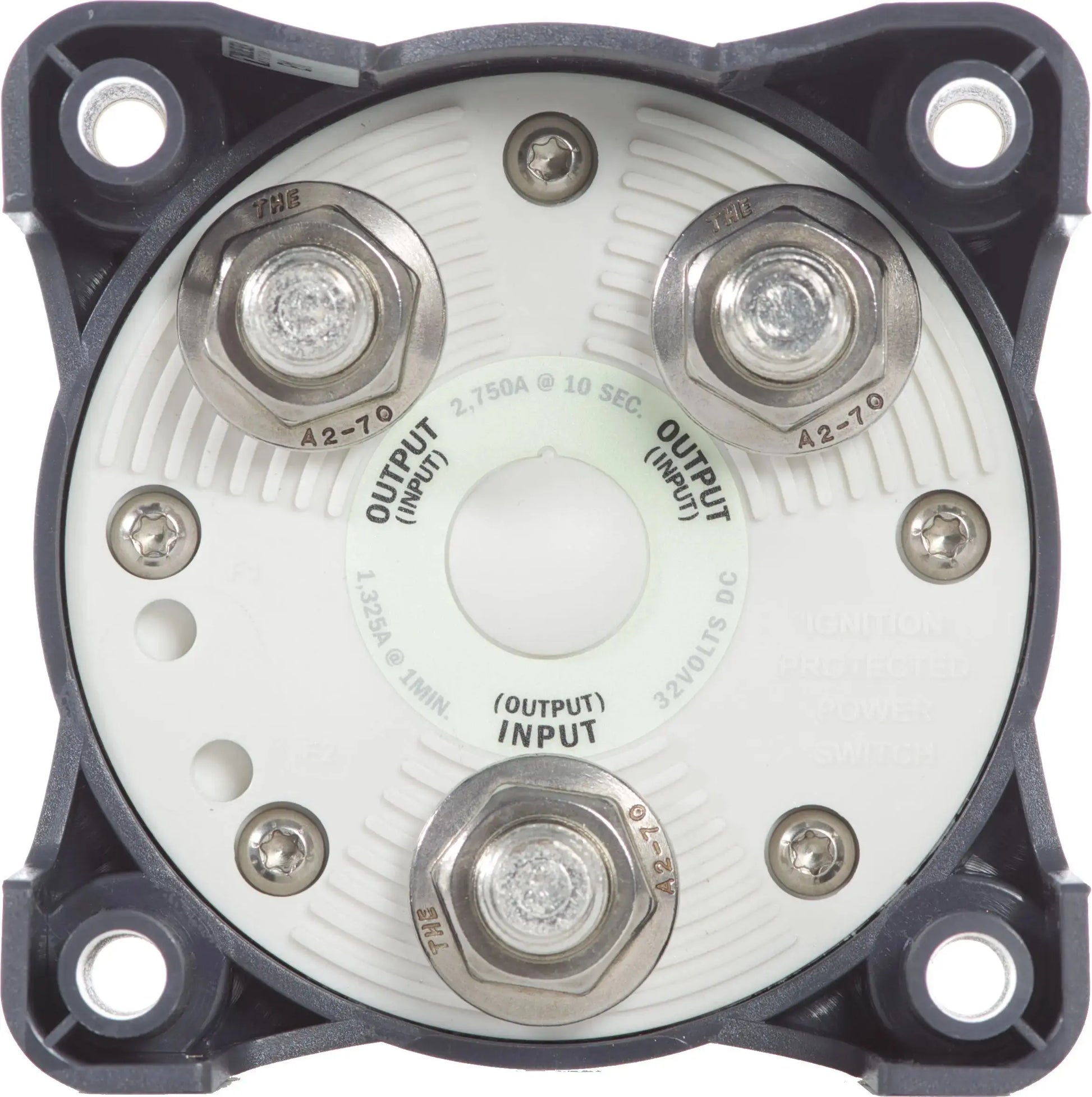

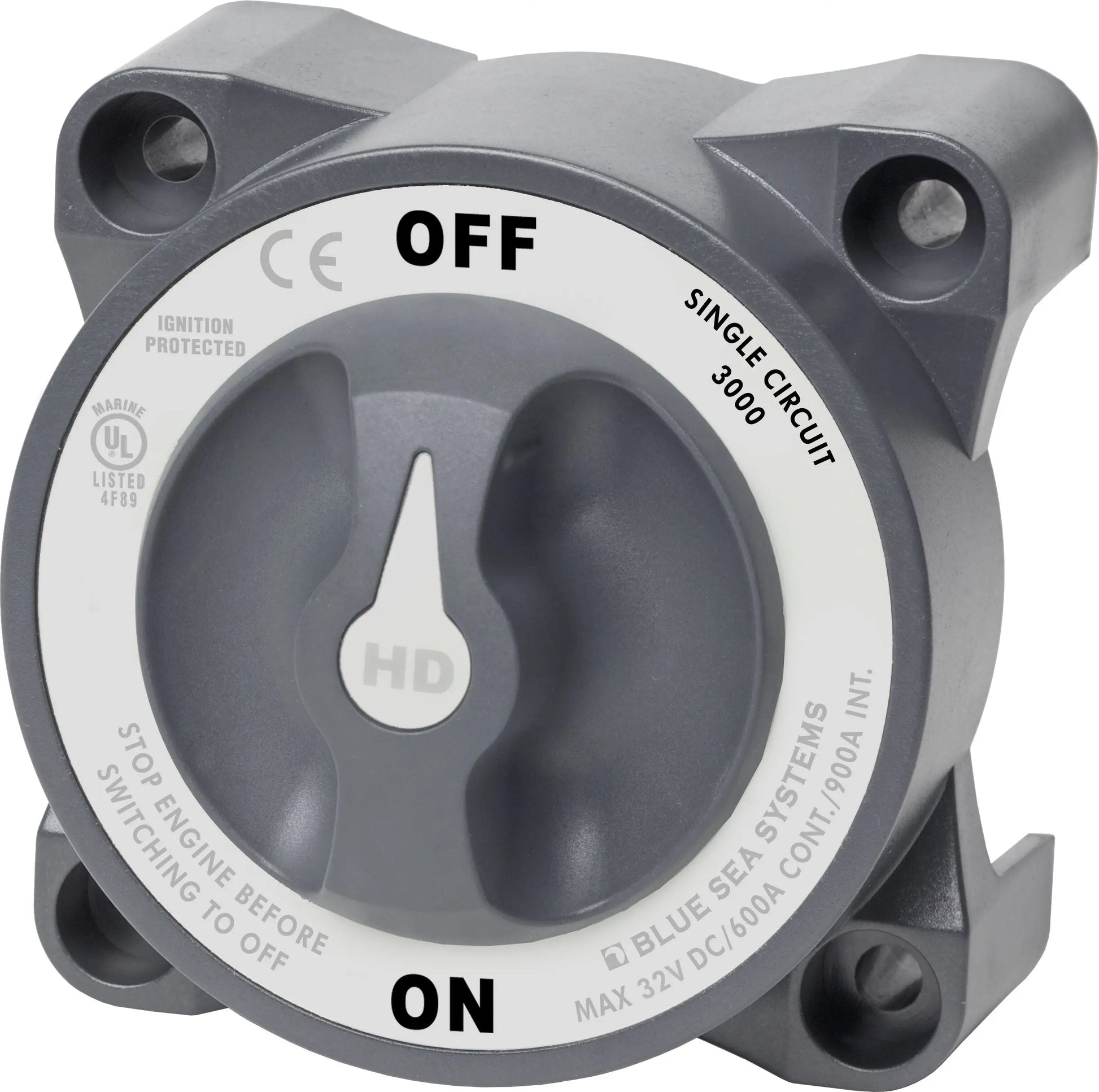

Blue Sea HD-Series Battery Switch On/Off 600A

Blue Sea HD-Series Battery Switch On/Off 600A

Blue Sea 3000 600A Battery Selector Switch On-Off

• Tin-plated copper studs for maximum conductivity and corrosion resistance


• Accepts up to 4/0 AWG battery cables


• Studs accepts 1/2" (M12) ring terminals


• 7/8" (22mm) stud length accepts multiple cable terminals


• Blue Sea Systems one-piece terminal stud design never loosens over time


• Fits most Perko and Guest low amperage battery switch hole patterns


• Case design allows surface, rear, or front panel mounting options


• Tactile indicator conveys knob position by feel


• Waterproof — rated IP66 from water projected in powerful jets

Switch Type
Single Circuit ON-OFF

Color
Grey

Switch Positions
2

Battery Combine
No

Alternator Field Disconnect
No

Maximum Voltage
32V DC

Terminal Stud Torque
220 in-lb (24.86 Nm)

Continuous Rating
600A

Intermittent Rating
900A (5 min)

Cranking Rating 30 sec
1750A

Battery Inputs
1

Cable Clearance For 4/0 AWG Cables
1.10in (27.94 mm)

Cable Quantity to Meet Ratings
Two Cables

Cable Size to Meet Ratings
4/0 AWG (120mm )

Mounting Holes
Accept 1/4" (M6) Screw

Terminal Stud Size
1/2" (M12)
