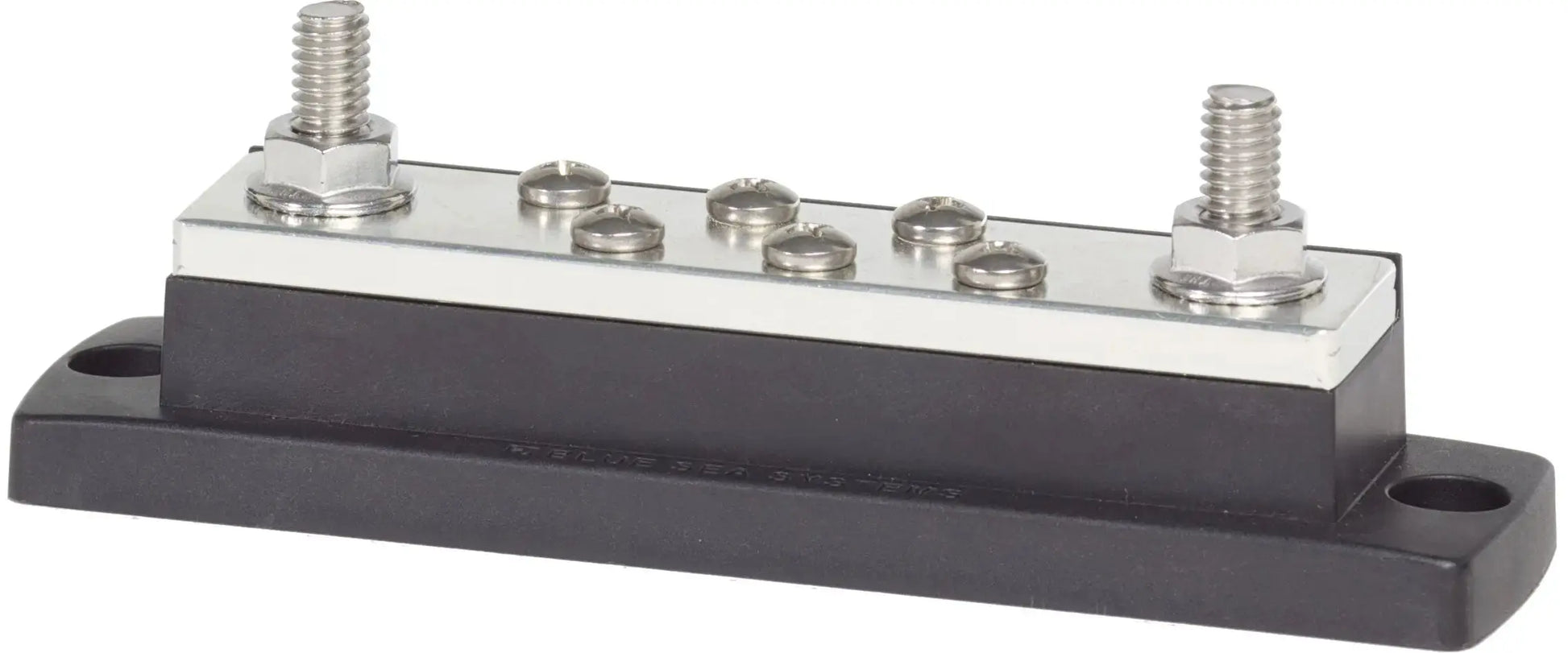

Blue Sea MaxiBus 250A BusBar Two 5/16in-18 Studs and Six #10-24 Screws

Blue Sea MaxiBus 250A BusBar Two 5/16in-18 Studs and Six #10-24 Screws

Blue Sea Systems MaxiBus 250A BusBar - Two 5/16"-18 Studs and Six #10-24 Screws

• Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact


• Raised bus provides easy access to multiple wires on a single stud


• UL 94-V0 rated base material resists high heat


• Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

Maximum Voltage
300V AC, 48V DC

Number of Screw Terminals
6

Number of Terminal Studs
2

Terminal Type
#10-24 Screw, 5/16"-18 Stud

Continuous Rating
250A

Base Material
UL 94-V0 Rated, Glass Reinforced Thermoplastics

Bus Material
Tin-Plated Copper CDA 110 / UNS 11000

Recommended Screw Torque
23 in-lb (2.6 N m)

Recommended Stud Torque
132 in-lb (14.91 N m)
