Blue Sea P12 Battery Charger 12v Output 120/230V Input 25Amp 3 Bank

Comprehensive Overview of the Blue Sea P12 Battery Charger

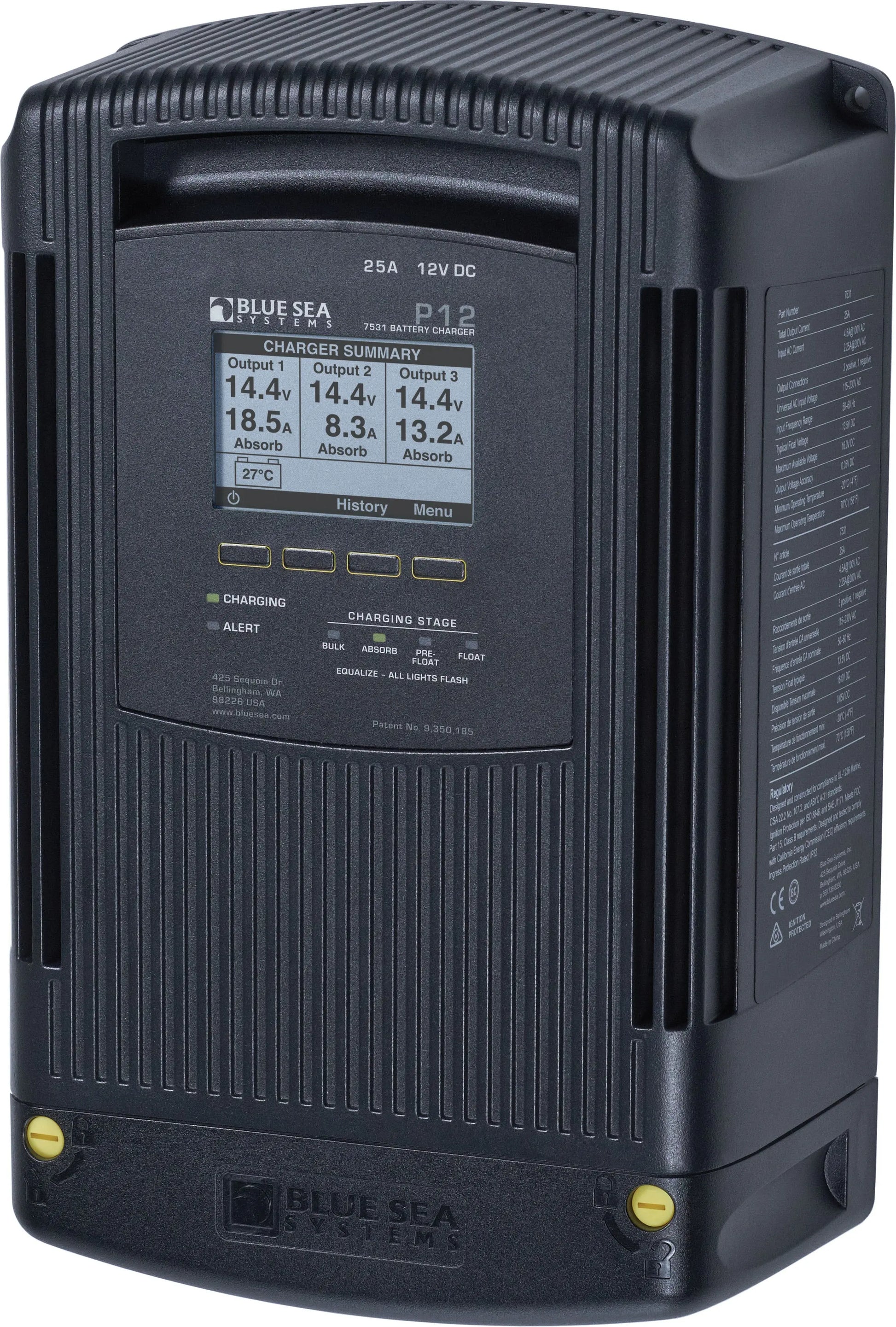

Blue Sea P12 Battery Charger 12v Output 120/230V Input 25Amp 3 Bank

Blue Sea Systems P12 25A 12vDC Battery Charger

Model: 7531-BSS

• Rugged, finned aluminum case
• Rugged, finned aluminum case
• Power factor corrected for efficient use of AC
• Intuitive diagnostic screens
• User defined charge profiles and customizable settings
• Provides charging for up to three battery banks
• Large, bright display
• Multi-language: English, French, German, Italian, Spanish
• Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
• Battery Temperature Compensation - adjusts charge voltage based on battery temperature
• AC over and under voltage shut down and automatic restart
• Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
• DC over voltage and reverse polarity protection
• Surge and short circuit protection

Specifications

Total Output Current25A

Input AC Current
4.5A @ 100V A

Maximum Output Voltage
16V DC

Nominal Voltage
12V DC

Ignition Protected
Yes

Number of Outputs
1 negative
3 positive

Stud Size
M6

Universal AC Input Voltage
115-230V AC

AC Input Frequency
45-65Hz

Output Voltage Accuracy
0.05V

Typical Float Voltage
13.5V DC

Maximum Operating Temperature
70 deg C

Minimum Storage Temperature
-30 deg C

Maximum Storage Temperature
80 deg C

Battery Types
AGM
Flooded Lead Acid
Gel
TPPL

Recommended for Battery Bank Sizes
330Ah Maximum
60Ah Minimum

Screw Terminal Torque
10 in-lb (1.13 Nm) M3
15 in-lb (1.69 Nm) M4

Stud Torque
80 in-lb (9.04 Nm)

Dimension H x W x D
13.03in x 8.46in x 3.66in

Warranty
5 Year

What's in the Box:

• P12 25A Charger
• Mounting hardware
• Ac Strain Releif
• DC Strain relief
• Temperaur Sensor
• Dielectric Grease

Powerful and Efficient Charging Performance

The Blue Sea P12 Battery Charger delivers a robust 12V output with a 25Amp charging capacity, designed to efficiently charge and maintain multiple battery banks. Its advanced technology ensures faster charging times and optimal battery health, making it ideal for marine, automotive, and industrial applications. The charger’s ability to operate at 120/230V input voltage offers remarkable flexibility for use in various power environments, ensuring consistent performance wherever it's deployed.

Three Independent Charging Banks for Versatility

This battery charger features three separate charging banks, allowing you to simultaneously charge and maintain multiple batteries without interference. Each bank operates independently, providing precise charging control to safeguard each battery’s unique requirements. This feature is especially beneficial for users with complex power systems who need reliable, isolated charging to extend battery life and maximize energy efficiency across different battery types.

Durable Construction and User-Friendly Design

The Blue Sea P12 Battery Charger is built to withstand harsh conditions with a rugged housing that protects internal components from moisture and mechanical damage. Its compact design facilitates easy installation in tight spaces while maintaining excellent thermal management. Additionally, user-friendly indicators and simple terminal connections make setup and monitoring straightforward, ensuring users can quickly integrate this charger into their existing power systems with minimal effort.
