Blue Sea P12 Battery Charger 12v Output 120/230V Input 40Amp 3 Bank

Blue Sea P12 Battery Charger: Efficient 12V 40Amp 3 Bank Solution

Blue Sea P12 Battery Charger 12v Output 120/230V Input 40Amp 3 Bank

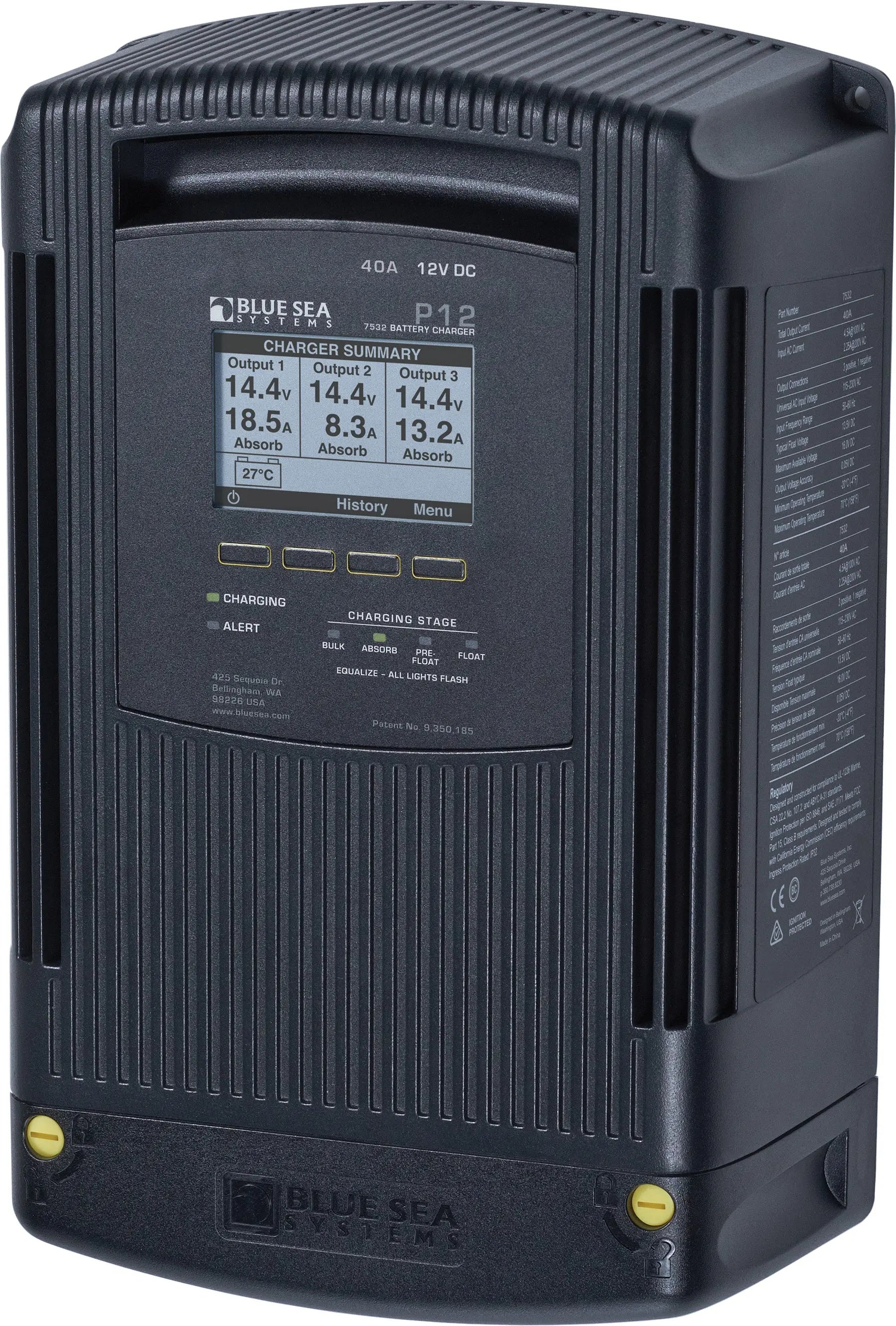

Blue Sea Systems P12 40A 12vDC Battery Charger

Model: 7532-BSS

• Rugged, finned aluminum case
• Rugged, finned aluminum case
• Power factor corrected for efficient use of AC
• Intuitive diagnostic screens
• User defined charge profiles and customizable settings
• Provides charging for up to three battery banks
• Large, bright display
• Multi-language: English, French, German, Italian, Spanish
• Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
• Battery Temperature Compensation - adjusts charge voltage based on battery temperature
• AC over and under voltage shut down and automatic restart
• Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
• DC over voltage and reverse polarity protection
• Surge and short circuit protection

Specifications

Total Output Current40A

Input AC Current
7.5A @ 100V A

Maximum Output Voltage
16V DC

Nominal Voltage
12V DC

Ignition Protected
Yes

Number of Outputs
1 negative
3 positive

Stud Size
M6

Universal AC Input Voltage
115-230V AC

AC Input Frequency
45-65Hz

Output Voltage Accuracy
0.05V

Typical Float Voltage
13.5V DC

Maximum Operating Temperature
70 deg C

Minimum Storage Temperature
-30 deg C

Maximum Storage Temperature
80 deg C

Battery Types
AGM
Flooded Lead Acid
Gel
TPPL

Recommended for Battery Bank Sizes
330Ah Maximum
60Ah Minimum

Screw Terminal Torque
10 in-lb (1.13 Nm) M3
15 in-lb (1.69 Nm) M4

Stud Torque
80 in-lb (9.04 Nm)

Dimension H x W x D
13.03in x 8.46in x 3.66in

Warranty
5 Year

What's in the Box:

• P12 40A Charger
• Mounting hardware
• Ac Strain Releif
• DC Strain relief
• Temperaur Sensor
• Dielectric Grease

Powerful and Versatile Charging Performance

The Blue Sea P12 Battery Charger delivers a 12V output and powerful 40Amp charging capability, designed to keep multiple batteries fully charged and ready for use. With a versatile 3 bank output, it simultaneously charges up to three separate batteries, making it ideal for marine, RV, and automotive applications. Its dual input voltage options, 120V or 230V, ensure compatibility with various global power sources. This charger efficiently maintains battery health, reduces charging time, and enhances overall battery lifespan with intelligent charging technology.

Advanced Safety and Protection Features

Equipped with comprehensive safety features, the Blue Sea P12 Battery Charger protects your batteries from overcharging, overheating, and short circuits. The charger’s built-in automatic temperature compensation ensures optimal charging even in varying environmental conditions. This prevents damage caused by excessive heat or cold, thereby safeguarding your investment. Additionally, LED status indicators provide clear, real-time feedback on the charging process and battery condition. These safety protocols make the Blue Sea P12 a reliable and safe choice for maintaining battery performance in demanding environments.

Compact Design for Easy Installation and Use

The Blue Sea P12 Battery Charger combines powerful functionality with a compact, rugged design that fits easily into tight spaces, whether on boats, RVs, or off-grid systems. Its weather-resistant casing protects internal components from moisture and dust, ensuring long-lasting operation in harsh conditions. Installation is straightforward, with clearly marked terminals and compatible accessories available for various mounting scenarios. User-friendly controls and indicators help both professionals and hobbyists manage their battery systems effectively, making it a trusted charger for consistent and efficient power management.
