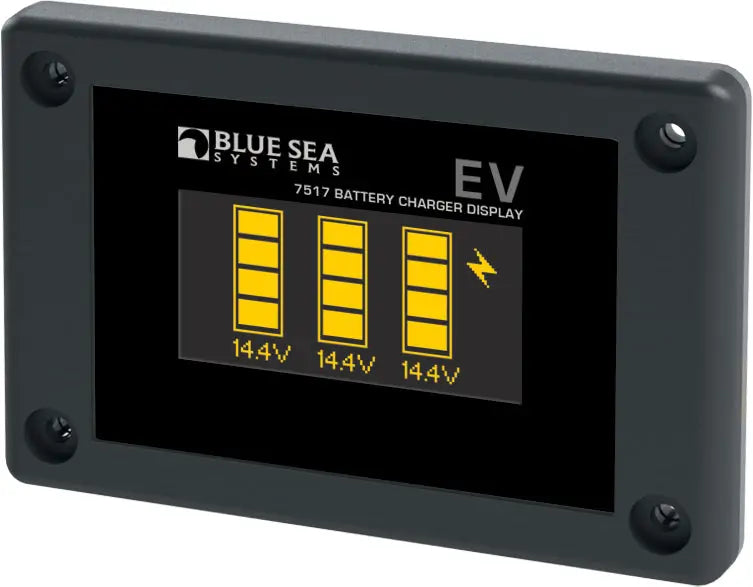

Blue Sea P12: Advanced Battery Charger with Summary Display

Blue Sea P12 Battery Charger Summery Display

Model: 7517-BSS

• Drop in replacement for traditional rectangular displays
• Automatically detects 1-3 battery banks
• AC charge indication verifies that power is connected and the battery charger is charging
• Plain language fault indication relays if there is a fault with the battery charger
• Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
• Displays voltage bar graphs even when AC power is not present
• Optional standby mode shuts off screen after 4 hours of inactivity
• Automatic ON based on motion with integrated knock sensor
• Bright, daylight readable, OLED display

The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger’s Summary screen, displaying voltage, current charging stage, and faults from the charger.

Specifications

Accuracy
+/- 1% at 36 Volts DC

Battery Inputs
3 with common reference

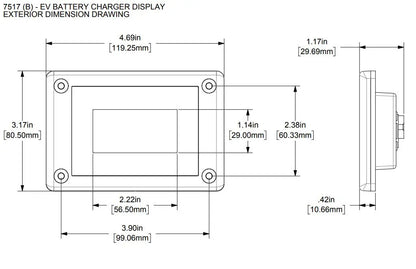

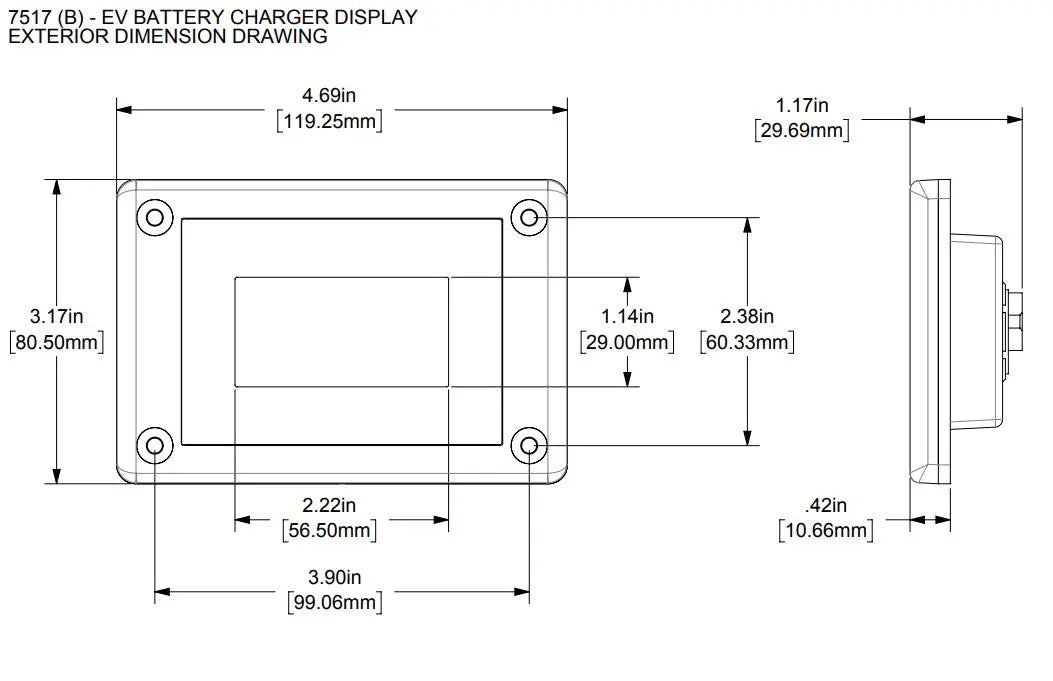

Display Size
55mm x 28mm

Display Type
Yellow OLED

Input Voltage Range
6-36V DC

Maximum Current Draw
50mA

Minimum Current Draw
<1mA in Standby Mode

What's in the Box:

• EV Battery Charger Display
• Mounting Gasket
• Four Position Connector
• 25ft (7.8m) Cat5e Cable

Reliable Charging Performance

The Blue Sea P12 battery charger is designed to provide dependable and consistent power delivery to your marine or vehicle battery. Its intelligent charging system adapts to different battery types and states of charge to optimize battery life. The Blue Sea P12 supports fast charging while maintaining battery health, ensuring your batteries stay fully charged without the risk of overcharging. This level of reliability makes the Blue Sea P12 an essential tool for any power management setup requiring sustained and efficient energy supply.

Innovative Summary Display Features

One of the key advantages of the Blue Sea P12 is its integrated summary display, which offers clear and intuitive real-time monitoring of battery status. This display provides vital information such as voltage levels, charging current, and state of charge, making it easy to assess battery health at a glance. The user-friendly interface of the summary display helps users quickly detect any charging issues and manage multiple batteries effectively, thereby improving overall system efficiency and safety.

Durable and User-Friendly Design

The Blue Sea P12 charger combines functionality with ruggedness, suited for harsh marine or automotive environments. It features a compact and robust casing designed to withstand vibrations, moisture, and temperature extremes. Installation is straightforward, and the charger includes protective features like reverse polarity and short circuit prevention. The ergonomic design and simple controls ensure that users of all experience levels can operate the Blue Sea P12 with confidence and ease, making it a highly practical choice for battery charging needs.
