Blue Sea Panel Enclosure 120v AC 30A ELCI Main Surface Mount System

Blue Sea Panel Enclosure: Reliable 120v AC 30A ELCI Main Surface Mount System

Blue Sea Panel Enclosure 120v AC 30A ELCI Main Surface Mount System

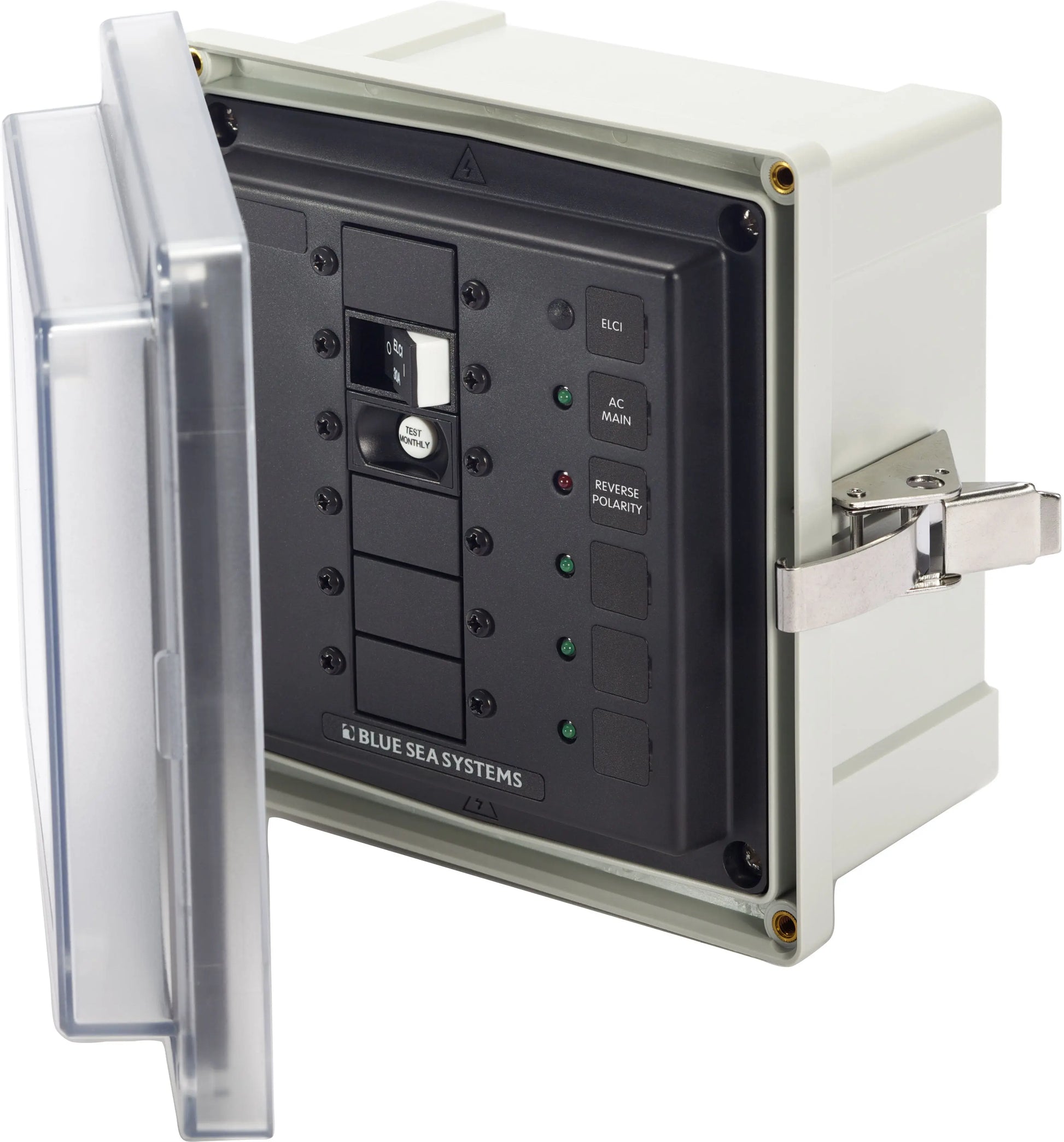

Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 blank circuit positions

Model: 3116-BSS

• Includes one 120V AC / 30A ELCI Main and three blank positions
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Glass filled polycarbonate mounting box
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling TechnologiesTM A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications

Minimum Operating Temperature-40 deg C

Maximum Operating Temperature
85 deg C

Cover Screws and Hardware
10-32 Stainless Steel

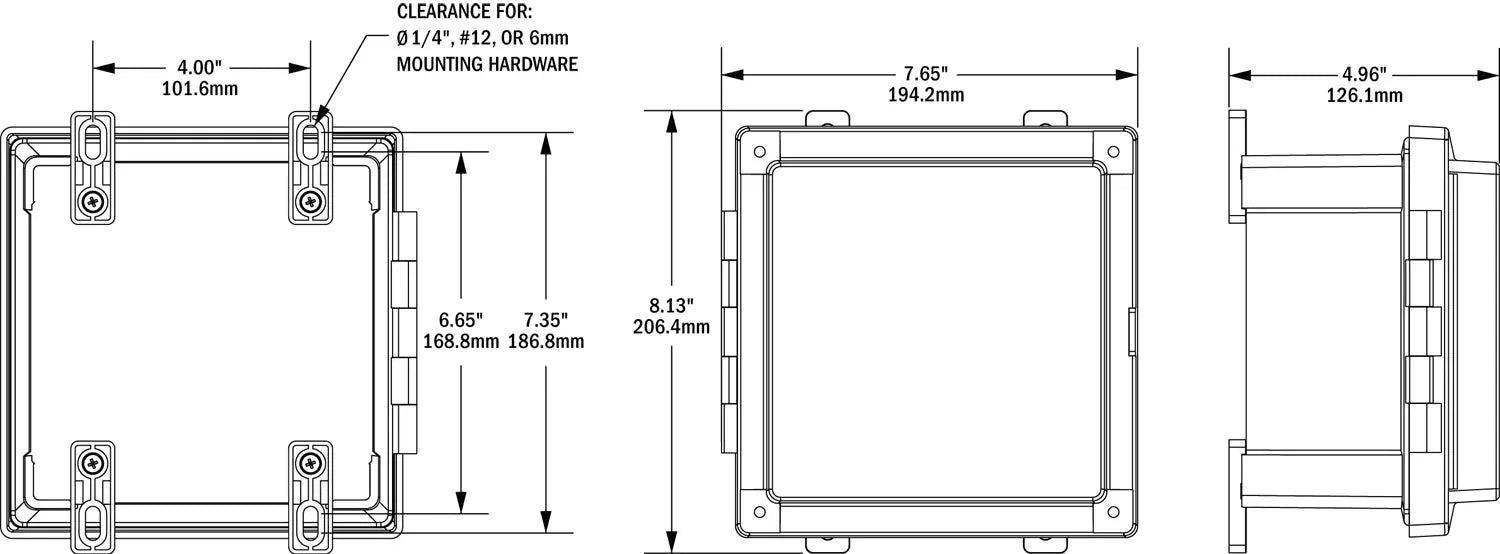

Enclosure Size
6.0 x 6.0 in x 4.0 in

Exterior Overall Dimensions
7.6 in x 7.4 in x 4.7 in

Mounting Hardware
1/4 in Diameter

Durable and Secure Design for Marine Applications

The Blue Sea Panel Enclosure is engineered specifically to provide a durable and secure housing for 120v AC 30A ELCI main electrical systems. Built with corrosion-resistant materials, this surface mount system is ideal for marine environments where exposure to moisture and salt is common. Its robust design ensures long-lasting protection against external elements, electrical hazards, and mechanical damage, making it a trusted solution for boaters and marine electricians alike.

Easy Installation and Maintenance Features

This panel enclosure stands out for its user-friendly installation process. The surface mount configuration allows for straightforward mounting on flat surfaces without requiring complex wiring modifications. Clear labeling and accessible internal wiring space facilitate hassle-free maintenance and quick troubleshooting. Additionally, the enclosure design supports convenient integration with existing electrical systems, resulting in reduced installation time and minimal downtime.

Advanced Safety with 30A ELCI Protection

The Blue Sea Panel Enclosure incorporates a 30A Equipment Leakage Circuit Interrupter (ELCI) to ensure enhanced safety against electrical faults. This advanced protection device detects leakage currents and immediately interrupts power to prevent shock hazards and fire risks. The inclusion of ELCI makes this panel enclosure ideal for environments demanding high safety standards, providing peace of mind to users handling sensitive electrical components aboard marine vessels or industrial setups.
