Blue Sea Panel Enclosure 120v AC 50A ELCI Main Surface Mount System

Comprehensive Overview of the Blue Sea Panel Enclosure

Blue Sea Panel Enclosure 120v AC 50A ELCI Main Surface Mount System

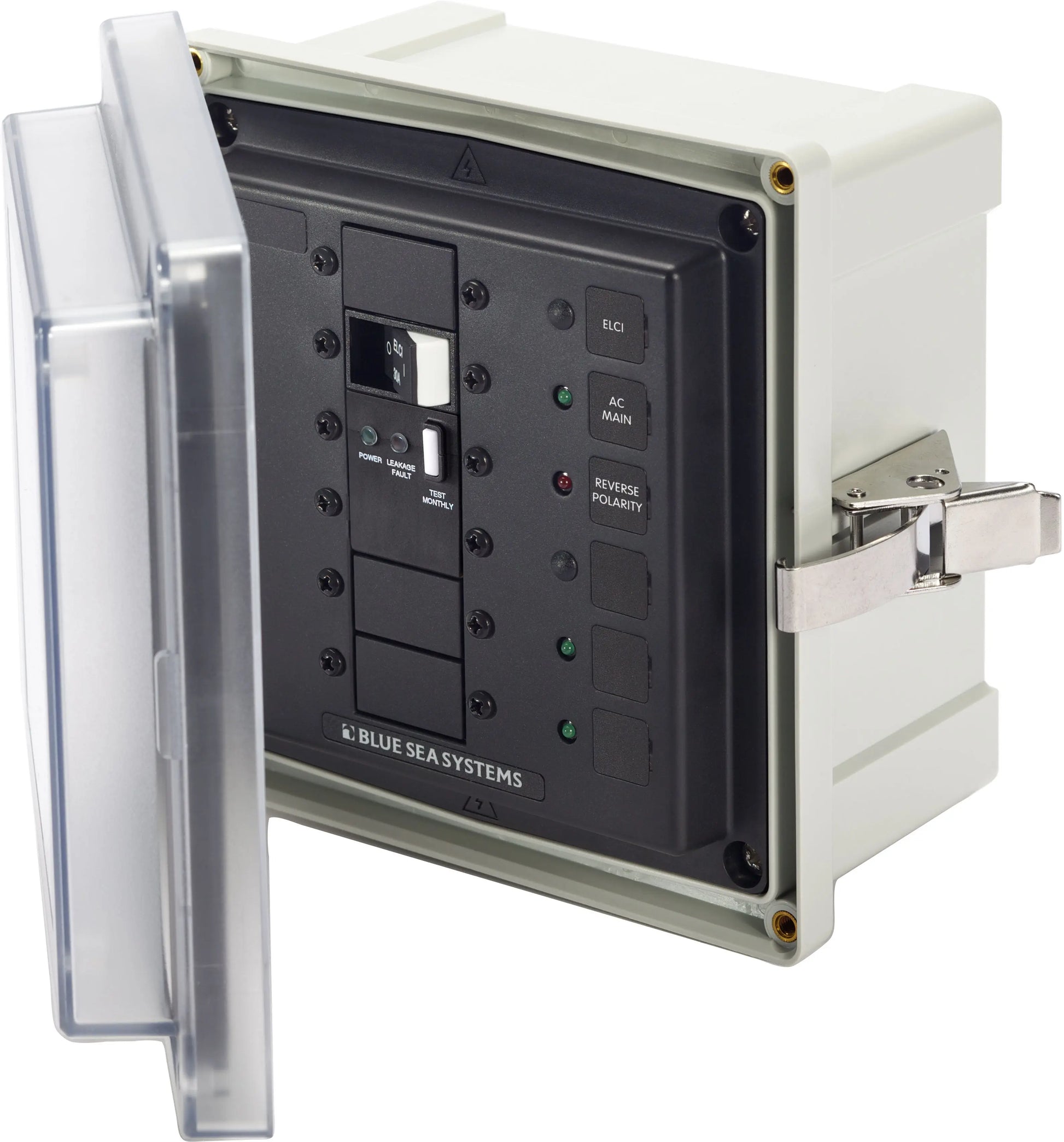

Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 50A ELCI Main - 2 blank circuit positions

Model: 3118-BSS

• Includes one 120V AC / 50A ELCI Main and two blank positions
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling TechnologiesTM A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications

Minimum Operating Temperature-40 deg C

Maximum Operating Temperature
85 deg C

Cover Screws and Hardware
10-32 Stainless Steel

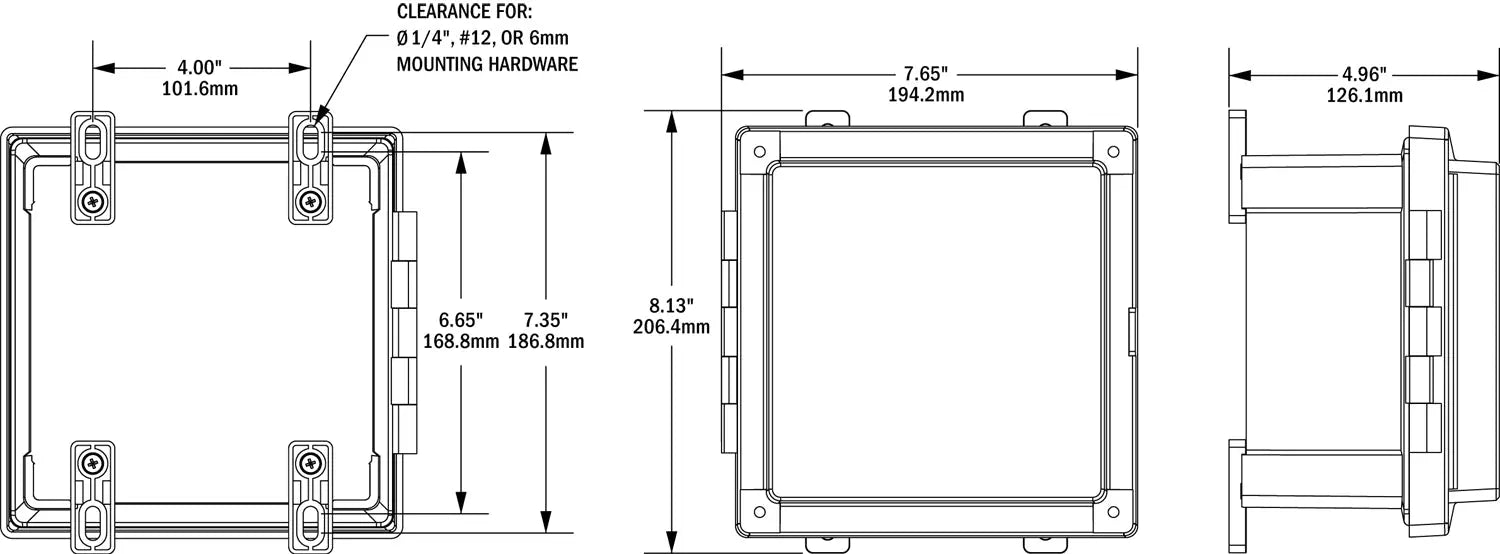

Enclosure Size
6.0 x 6.0 in x 4.0 in

Exterior Overall Dimensions
7.6 in x 7.4 in x 4.7 in

Mounting Hardware
1/4 in Diameter

Durable Design and Build Quality

The Blue Sea Panel Enclosure is engineered for durability and reliable performance. Designed for 120v AC systems with a 50A ELCI main, this surface mount system withstands harsh environments often found in marine and industrial applications. Its robust housing protects internal components from moisture, dust, and corrosion, ensuring a long service life. This enclosure offers a robust and secure solution that maintains electrical safety and integrity even in demanding conditions.

Advanced Electrical Safety Features

This Blue Sea Panel Enclosure features an integrated 50A Earth Leakage Circuit Interrupter (ELCI) main, providing superior protection against electrical faults. It effectively detects leakage currents to prevent hazardous shocks and equipment damage. The built-in ELCI complies with safety regulations and enhances user confidence in the system’s safe operation, making it ideal for sensitive applications where electrical fault prevention is a priority.

Easy Installation and Versatile Applications

The Blue Sea Panel Enclosure is designed for surface mounting, offering straightforward installation on various flat surfaces. Its compact and organized layout allows for efficient wiring and maintenance. This panel enclosure is suitable for marine vessels, recreational vehicles, and industrial setups, providing versatile power management. Its clear labeling and accessible design simplify troubleshooting, making it an excellent choice for professionals and hobbyists alike.
