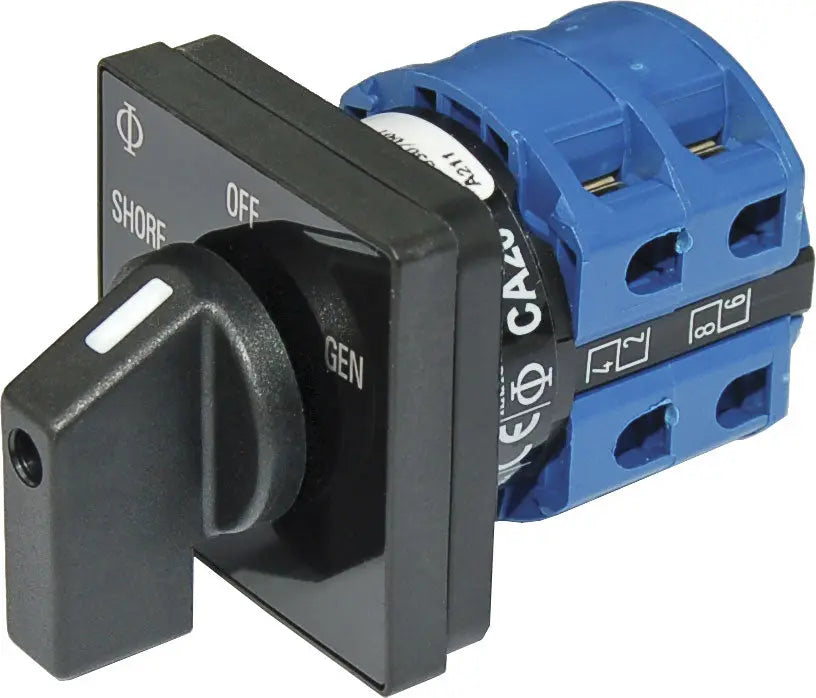

Blue Sea Rotary Switch 120VAC 30 Amp Off + 2 Position

Blue Sea Rotary Switch 120VAC 30 Amp: Reliable Electrical Control Solution

Blue Sea Rotary Switch 120VAC 30 Amp Off + 2 Position

Blue Sea Systems AC Rotary Switch - OFF + 2 Positions 120V AC 30A

Model: 9009-BSS

• Switches 2 - 120 or 230 Volt AC sources
• Compact solution when circuit protection is provided elsewhere
• Allows connecting one of two different AC sources to one circuit
• Mounts in panels up to 0.16 (4.00mm) thick
• Mounts in panels up to 0.16 in (4.00mm) thick
• Intuitive function - One hand operation
• UL listed

Specifications

Positions2 + OFF

Source Selection
2

Nominal Voltage
120v

Poles
2

Load Circuits Out
1

Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
30A

Maximum Voltage
600V AC

Source In
2

Dimensions hxwhd
1.89in x 1.89in x 1.91in

"

Overview of Blue Sea Rotary Switch Features

The Blue Sea rotary switch 120VAC 30 Amp is designed to provide dependable electrical control for various applications. Featuring an off position plus two operational positions, it offers straightforward switching and durability in demanding environments. This rotary switch is built to handle a 120VAC load at 30 amps, making it suitable for marine, automotive, and industrial uses. The robust construction and clear position indication ensure long-lasting performance and user-friendly operation, maintaining electrical safety and efficiency in your system.

Durability and Performance Benefits

Blue Sea products are recognized for their reliable marine-grade quality, and this rotary switch upholds that standard. Constructed with corrosion-resistant materials, it withstands harsh conditions including moisture and vibration. The switch's strong connection points and precision mechanisms deliver smooth, consistent switching action without failure. Its 30 Amp rating allows it to effectively manage moderate electrical loads with minimal voltage drop, ensuring optimal power distribution and system stability in demanding environments.

Easy Installation and Versatile Applications

This Blue Sea rotary switch features a compact and ergonomic design that simplifies installation in cramped or complex electrical panels. The off plus two position setup offers versatile control options, making it ideal for isolating circuits, switching between power sources, or selecting device modes. Clear labeling on the switch facilitates correct wiring and use, reducing installation errors. Whether for marine electrical systems, recreational vehicles, or industrial equipment, this switch delivers straightforward functionality and enhanced safety.
