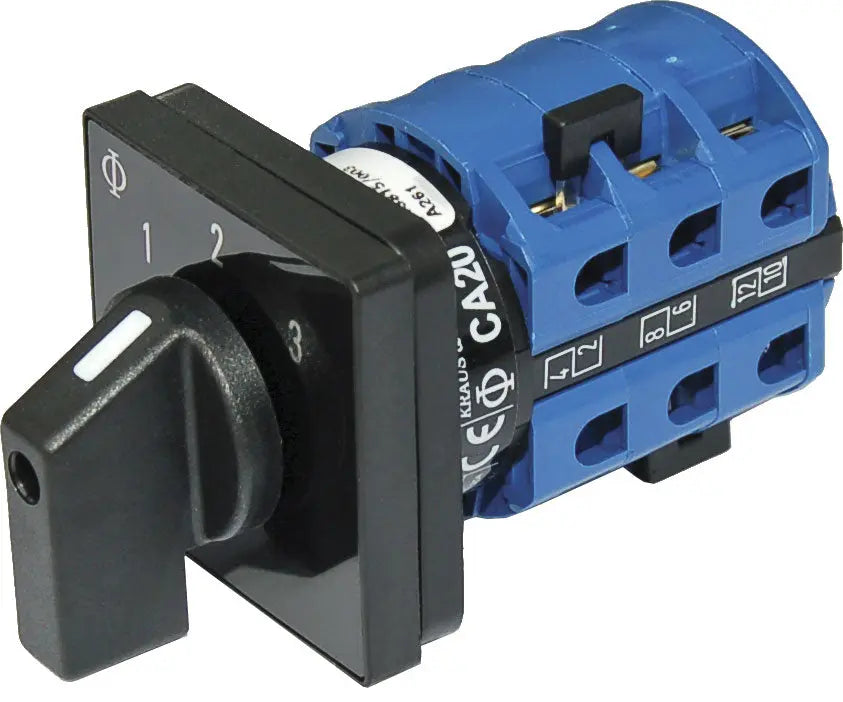

Blue Sea Rotary Switch 120VAC 30 Amp Off + 3 Position

Blue Sea Rotary Switch: Reliable Control for Electrical Systems

Blue Sea Rotary Switch 120VAC 30 Amp Off + 3 Position

Blue Sea Systems AC Rotary Switch - OFF + 3 Positions 120V AC 30A

Model: 9010-BSS

• Switches 3 - 120 or 230 Volt AC sources
• Compact solution when circuit protection is provided elsewhere
• Allows connecting one of two different AC sources to one circuit
• Mounts in panels up to 0.16 (4.00mm) thick
• Mounts in panels up to 0.16 in (4.00mm) thick
• Heavy duty industrial rated switch
• Intuitive function - One hand operation
• UL listed

Specifications

Positions3 + OFF

Source Selection
3

Nominal Voltage
120v

Poles
2

Load Circuits Out
1

Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
30A

Maximum Voltage
600V AC

Source In
3

Dimensions hxwhd
1.89in x 1.89in x 2.41in

"

Overview of the Blue Sea Rotary Switch

The Blue Sea rotary switch 120VAC 30 Amp offers a durable and efficient solution for controlling electrical circuits. Designed specifically for marine and industrial applications, this switch features an Off + 3 position configuration, giving users flexible options to manage multiple circuits safely and conveniently. Its robust construction and secure rotary mechanism ensure reliable operation even in harsh environments, making it a trusted choice for professionals who demand consistent performance in critical electrical systems.

Key Features and Specifications

The Blue Sea rotary switch supports 120VAC operation with a maximum current rating of 30 Amps. Its Off + 3 position design allows users to select different electrical paths or turn off the circuit entirely. The switch’s high-quality materials resist corrosion and wear, particularly in marine settings, which often expose equipment to moisture and salt. Additionally, the easy-to-use rotary knob ensures smooth switching between positions without accidental activation, thus improving both safety and convenience for various electrical control needs.

Applications and Benefits of Using Blue Sea Switch

This Blue Sea rotary switch is widely used in marine vessels, RVs, and industrial machines where dependable circuit management is essential. It helps reduce electrical faults by providing a clear off position, preventing power flow when not needed. The compact design fits easily into control panels with minimal space required. Users benefit from enhanced system protection, improved operational control, and long-lasting performance, all key advantages that make the Blue Sea 120VAC 30 Amp rotary switch a valuable addition to any electrical setup.
