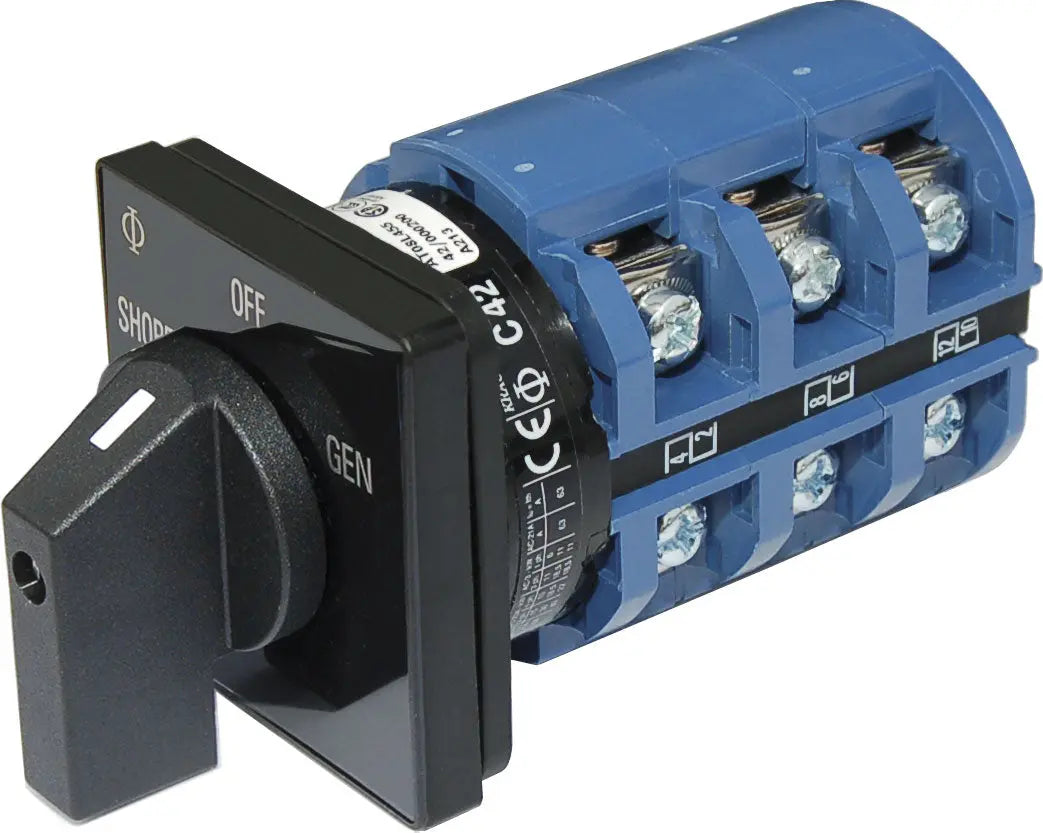

Blue Sea Rotary Switch 240VAC 65 Amp Off + 2 Position

Blue Sea Rotary Switch 240VAC 65 Amp Off + 2 Position Features and Benefits

Blue Sea Rotary Switch 240VAC 65 Amp Off + 2 Position

Blue Sea Systems AC Rotary Switch - OFF + 2 Positions 240V AC 65A

Model: 9019-BSS

• Switches 2 - 120/240 Volt AC sources
• Compact solution when circuit protection is provided elsewhere
• Allows connecting one of two different AC sources to one circuit
• Mounts in panels up to 0.16 (4.00mm) thick
• Heavy duty industrial rated switch
• Intuitive function - One hand operation
• UL listed

Specifications

Positions2 + OFF

Source Selection
2

Nominal Voltage
240V

Poles
3

Load Circuits Out
1

Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
65A

Maximum Voltage
600V AC

Source In
2

Dimensions hxwhd
2.52in x 2.52in x 3.5in

"

Durable and Reliable Design for Marine and Industrial Use

The Blue Sea rotary switch is engineered to handle demanding electrical applications with a 240VAC rating and a maximum current of 65 amps. Designed primarily for marine and industrial environments, it delivers exceptional durability and reliability. Using high-quality materials and expert craftsmanship, this switch ensures long-lasting performance even under harsh conditions like moisture and vibration. The Off + 2 position interface offers clear and precise control, making it ideal for switching power sources or circuits safely and efficiently.

Compact and Easy-to-Operate Rotary Mechanism

This Blue Sea rotary switch features a compact design that fits conveniently into panel installations without sacrificing accessibility. The rotary mechanism allows smooth, tactile switching between Off and two active positions, ensuring users can operate it quickly and intuitively. Its ergonomic knob is designed for firm grip and precise control, reducing the risk of accidental toggling. This makes it well suited for marine panel setups or industrial control cabinets where space and reliability are critical.

Efficient Electrical Performance and Safety Standards

Rated for 240VAC and 65 amps, the Blue Sea rotary switch supports high current loads while maintaining stable electrical performance to safeguard connected equipment. It meets strict safety and certification standards, providing dependable isolation when switched off and minimizing electrical risks. Installation is straightforward, with clearly marked terminals and robust connection points to ensure secure wiring. This switch’s safety features make it an excellent choice for critical power management applications in boats, RVs, or industrial machinery.
