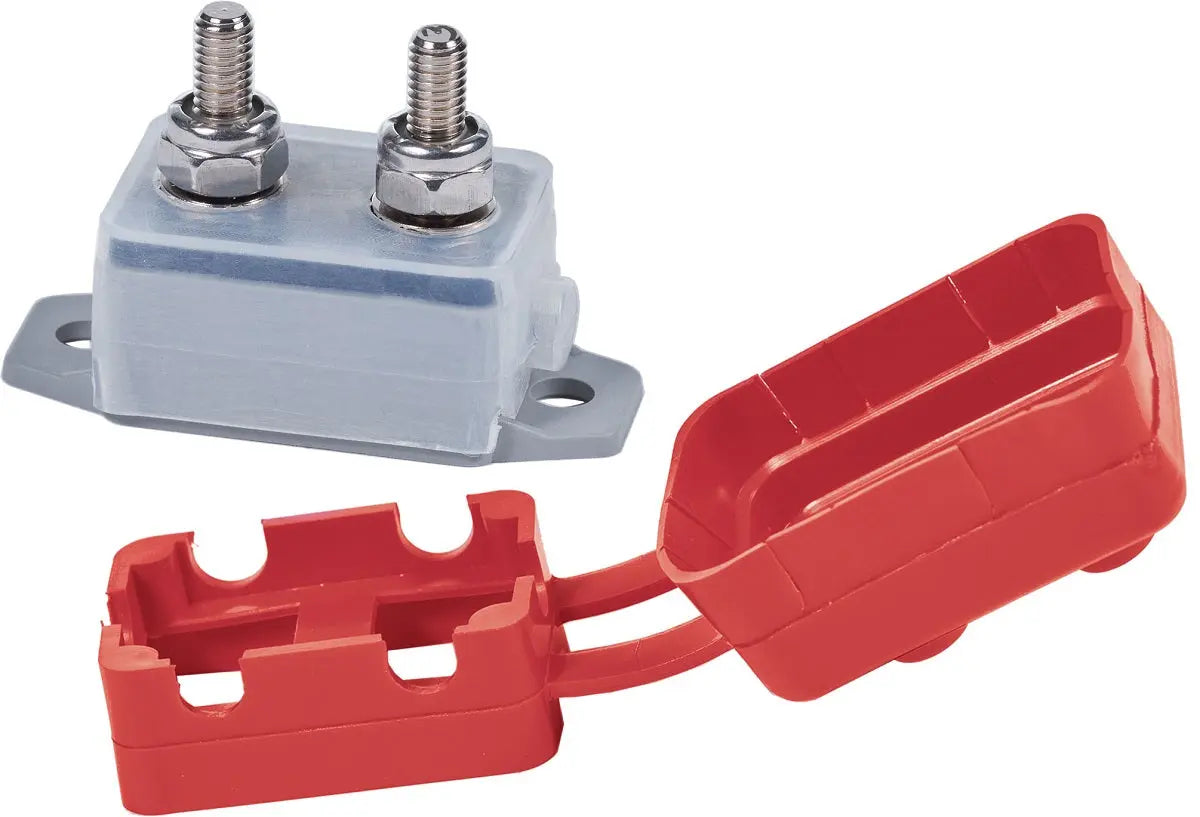

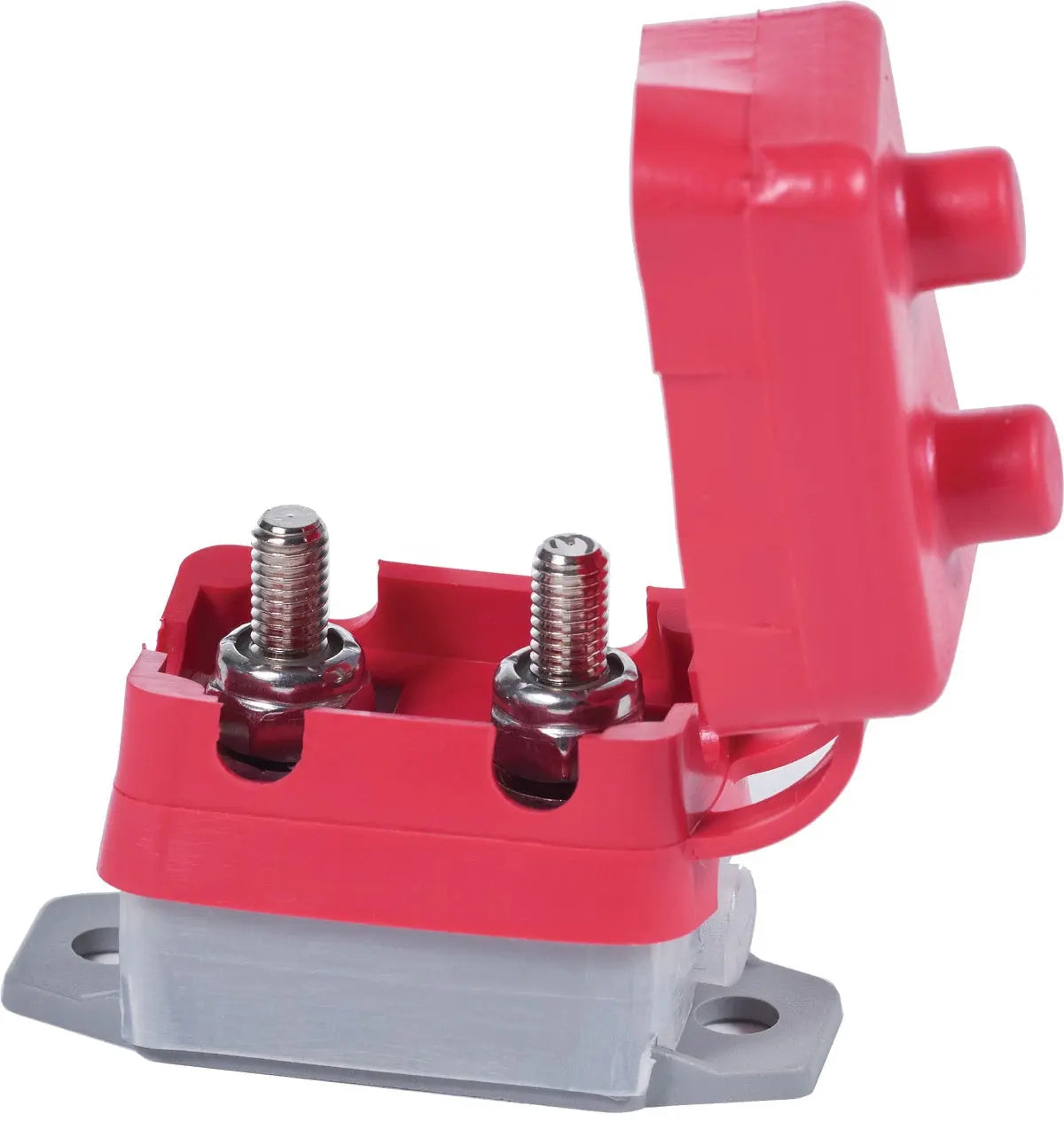

Blue Sea Short Stop 25 Amp Circuit Breaker Marine Grade

Blue Sea Short Stop 25 Amp Circuit Breaker Marine Grade

Blue Sea Systems Marine Grade Short Stop Circuit Breakers - 25A

• Corrosion resistant materials to withstand harsh environments


• IP64 water resistant boot protects against dust and splashing water


• Push-to-reset operation only disconnects when tripped


• Stainless steel lock nuts for secure connections


• Red insulating boot included (retail product only)

Amperage
25A DC

Maximum Voltage
28vDC

Circuit Breaker Type
Thermal trip, manual reset

Terminal Stud
#10-32

Terminal Stud Torque
20 in-lb (2.26 Nm)

Interrupt Capacity
2500A @ 28V DC

Minimum Operating Temperature
-10° C

Maximum Operating Temperature
60° C

What's in the Box:

• 25A Short Stop Circuit Breaker


• Short Stop Circuit Breaker Boot
