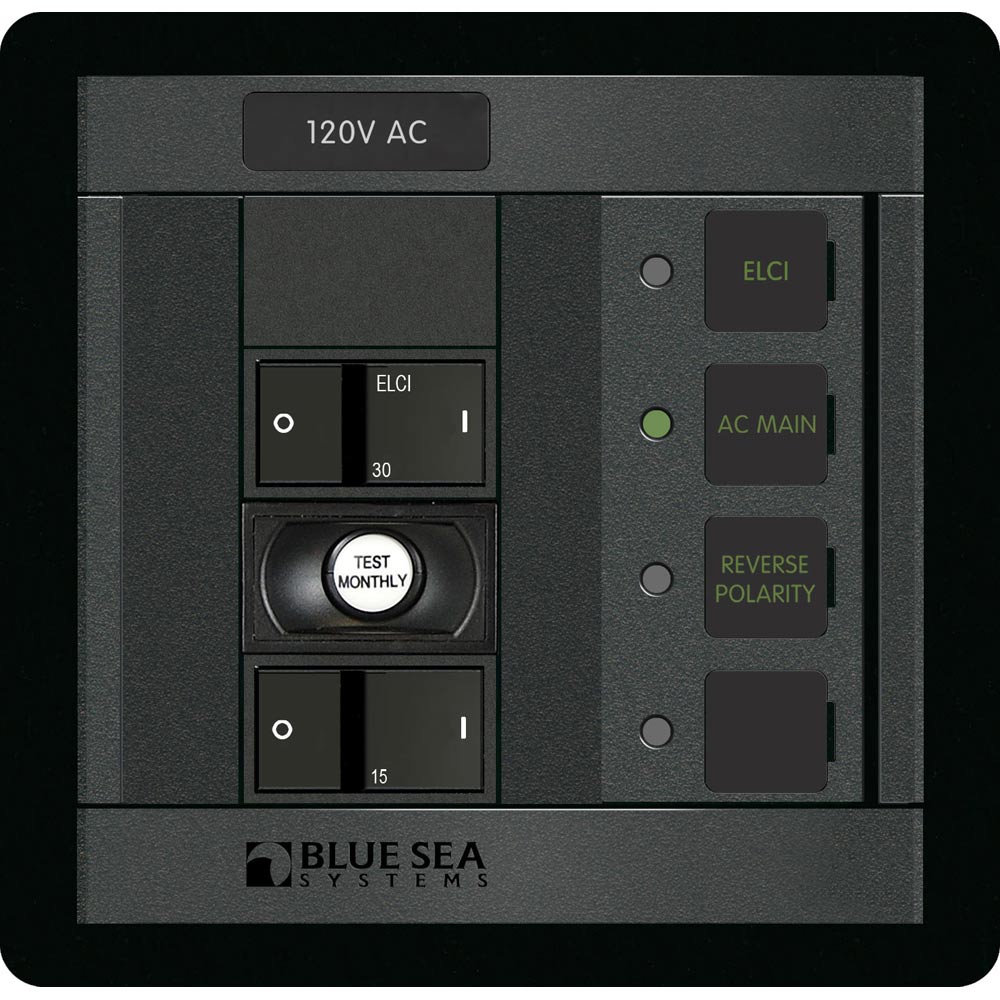

Blue Sea Systems 1190 ELCI Main 30A Double Pole Circuit Breaker with 1 Position

ELCI Main 30A Double Pole + 1 Position

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• One 15A AC Branch Flat Rocker Circuit Breaker

• Red " Reverse Polarity" LED

• Includes 4206 AC Panel Basic Square Format Label Set

• All circuit label positions are backlit

• "ON" indicating LEDs

Specifications:

• Positions: 1

• Nominal Voltage: 120V AC

• Backlit Label*: Green LED

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.99" (101.35mm)

• Weight: 1.00lb (0.45kg)

Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1190 ELCI Main 30A Double Pole + 1 Position circuit breaker is engineered for reliable boat shore power protection, providing both overcurrent and leakage protection in accordance with ABYC E-11 standards. Featuring a 30A AC ELCI (Earth Leakage Circuit Interrupter) main breaker with a leakage trip amperage of 30 mA, this device ensures safety by minimizing electrical hazards caused by ground faults. It also includes a 15A AC branch breaker for additional circuit management, making it an all-in-one solution for marine electrical systems. The unit’s design emphasizes durability and ease of use, with all circuit label positions backlit by green LEDs to enhance readability in low-light conditions. The integrated "Reverse Polarity" LED indicator promptly alerts users to wiring issues, further enhancing safety aboard the vessel. The breaker is housed in a compact package measuring approximately 4.75 inches tall, 4.88 inches wide, and nearly 4 inches deep, making it suitable for various panel configurations. Included with the breaker are a set of label panels in a basic square format, ensuring clear circuit identification that remains visible even when the panel is powered. The device’s well-illuminated indicators and robust construction make it an ideal choice for marine applications, ensuring both safety and operational reliability. For installation and operational details, refer to the provided owners manual link. This product is designed to meet the demanding conditions of marine environments, offering peace of mind for boat owners and technicians alike.

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker with leakage trip amperage of 30 mA

• Provides overcurrent and leakage protection per ABYC E-11 standards for boat shore power

• Includes a 15A AC branch flat rockers circuit breaker

• Red "Reverse Polarity" LED indicator for wiring safety alerts

• Backlit circuit labels with green LEDs for enhanced low-light visibility

• Compact size suitable for marine electrical panels

• Includes basic square format label set for circuit identification

• Indicating LEDs for operational status
