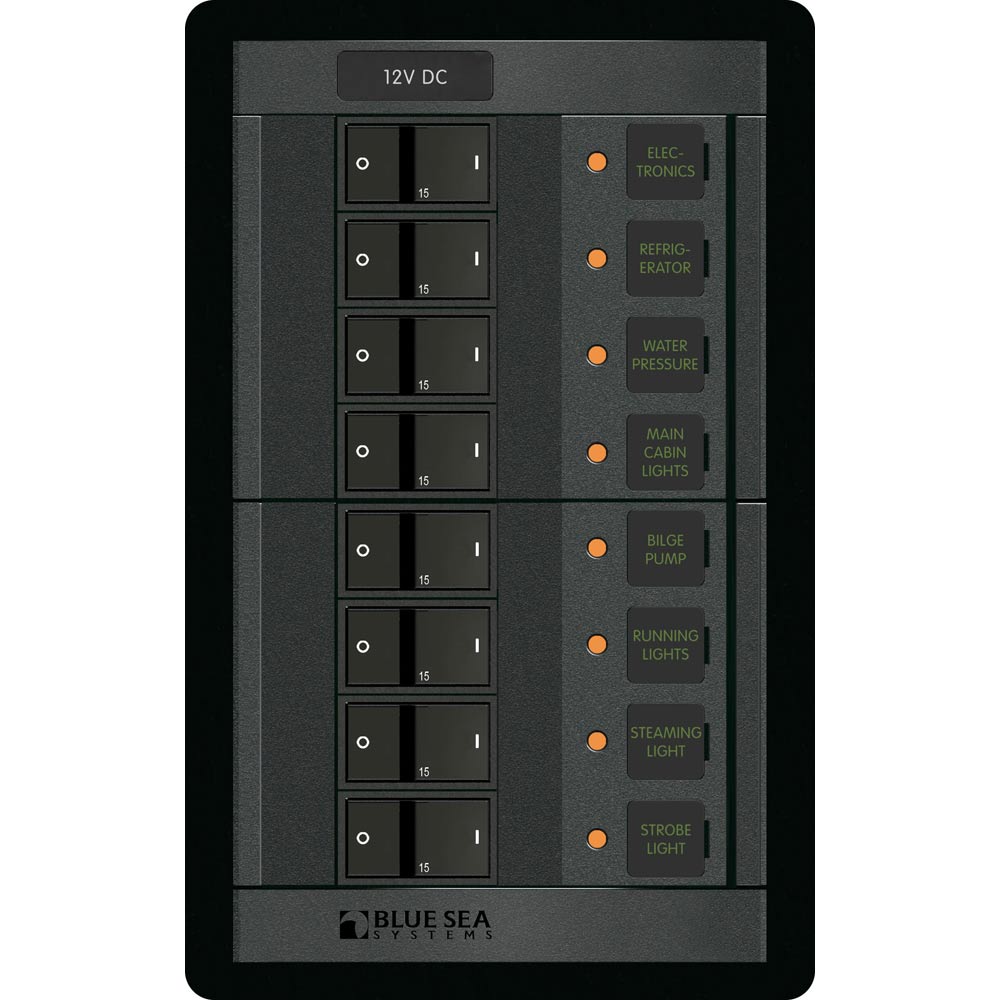

Blue Sea Systems 1200 12V DC 8-Position Vertical Power Distribution Panel

12 Volt DC 8 Position - Vertical

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC

• Maximum Amperage*: 100A

• Height: 7.75" (196.85mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 2.60lb (1.18kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1200 12V DC 8-Position Vertical Power Distribution Panel is designed for efficient management of multiple circuits in a compact form factor. With a vertical orientation and a height of approximately 7.75 inches, this panel offers a robust solution for distributing power in marine, RV, or vehicle applications. It features 8 positions, each capable of supporting up to 15A circuit breakers, making it suitable for complex electrical setups. The panel's maximum amperage capacity is 100A, contingent on appropriate wiring and fuse use, ensuring safe and reliable operation. Constructed with durable materials, it is engineered to withstand the demanding environments encountered in mobile or marine settings.Included with the panel are eight 7403-A-Series flat rocker circuit breakers, each rated at 15A, and a basic DC label kit containing 30 black square labels for clear circuit identification. This setup simplifies troubleshooting and maintenance, providing a neat, organized appearance for your electrical system. The panel's dimensions are designed for space efficiency, and its weight of around 2.6 pounds makes it suitable for installation in confined areas. The product adheres to safety standards, although users should be aware of chemical exposure warnings associated with certain materials used in its manufacture. Detailed installation instructions and an owner’s manual are available online for proper setup and maintenance.Overall, the Blue Sea Systems 1200 12V DC 8-Position Vertical Power Distribution Panel offers a reliable and organized solution for distributing 12V DC power across multiple circuits. Its versatile features, sturdy construction, and comprehensive included components make it an excellent choice for professionals and hobbyists seeking a high-quality power management system for their vehicles or marine vessels.

Features:

• Supports 4 to 32 branch circuits with installed 15 Amp circuit breakers

• Optional with voltmeters, ammeters, and digital multimeters for comprehensive monitoring

• Includes 4205-Square Format Label Set for organized circuit identification

• 8-position vertical design for efficient use of space

• Maximum amperage of 100A, dependent on fuse and wire sizing
