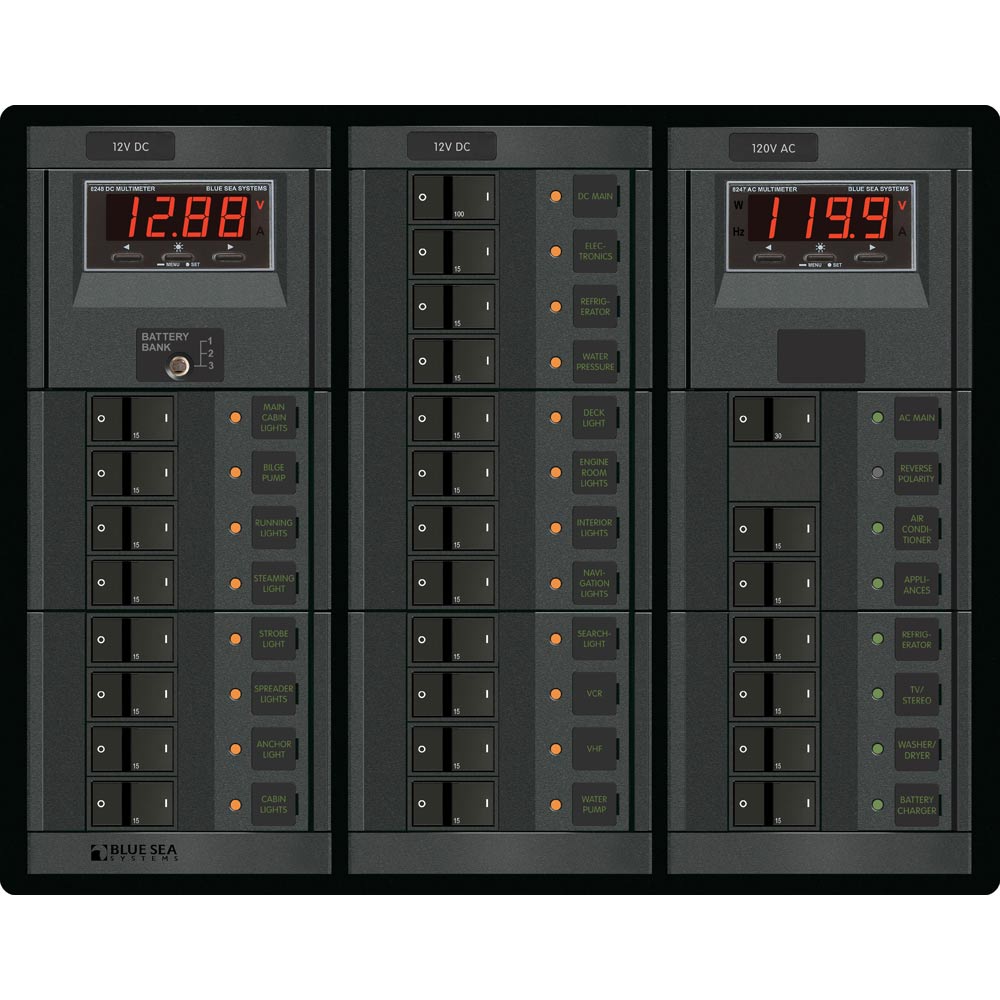

Blue Sea Systems 1218 12V DC Main and 120V AC Main Power Panel with 19 and 6 Positions

12 Volt DC Main + 19 Positions/120 Volt AC Main + 6 Positions

Features:

• 360 AC Panels may be equipped with main breakers up to 100A per pole to suit the application

• AC and DC panel amperage determined by AC Main and DC Main circuit breakers

• Modular manufacturing design reduces manufacturing time

• Interchangeable modular design eliminates custom engineering and metal fabrication

• Flexible modifications

• Flexible panel orientation (panels without meters)

Specifications:

• Positions: 6-AC / 19-DC

• Nominal Voltage: 120V AC / 12V DC

• Height: 10.75" (273.05mm)

• Width: 13.63" (346.2mm)

• Depth: 4.00" (101.6mm)

• Weight: 12.80lb (5.81kg)

Includes:
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (AC Branch)
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (AC Main)
(1) - 8247 - AC Digital Multi-Function Meter with Alarm (AC Meter)
(19) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (DC Branch)
(1) - 7549 - C-Series Flat Rocker Circuit Breaker - Single Pole 100A (DC Main)
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (DC Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1218 power distribution panel offers versatile electrical management for various applications. Designed with a 12 Volt DC main circuit and a 120 Volt AC main circuit, it features 19 DC positions and 6 AC positions, making it suitable for complex power systems. The panel's modular construction allows for quick assembly and easy modifications, reducing installation time and eliminating the need for custom engineering or metal fabrication. Its flexible design accommodates different panel orientations, particularly for setups without meters, providing adaptability to your specific layout requirements. Constructed from durable materials, this panel ensures reliable performance in demanding environments and supports main breakers up to 100A per pole for both AC and DC circuits, tailored to your power needs. The panel includes comprehensive labeling kits for clear circuit identification and multiple circuit breakers, including high-current main breakers and individual branch circuit breakers, facilitating organized and safe electrical distribution. The integrated digital multi-function meters with alarms for AC and DC circuits enable real-time monitoring, helping prevent overloads and system faults. Compact yet robust, the panel measures approximately 10.75 inches in height, 13.63 inches in width, and 4 inches deep, weighing around 12.8 pounds, making it suitable for installation in various vehicle or industrial environments. The package includes all necessary labels, circuit breakers, and meters, ensuring a complete ready-to-install solution. For detailed installation instructions and safety guidelines, refer to the owner’s manual available online. Note that this product contains chemicals such as DEHP, which are recognized for potential health risks, and proper handling is advised according to P65 warnings.

Features:

• 12 Volt DC main circuit with 19 positions for comprehensive power distribution

• 120 Volt AC main circuit with 6 positions for versatile electrical management

• Main breakers up to 100A per pole to accommodate high-current applications

• Modular design reduces manufacturing and installation time

• Interchangeable components eliminate the need for custom engineering

• Flexible panel orientation options for versatile installation

• Includes circuit breakers, labels, and digital meters for monitoring and safety
