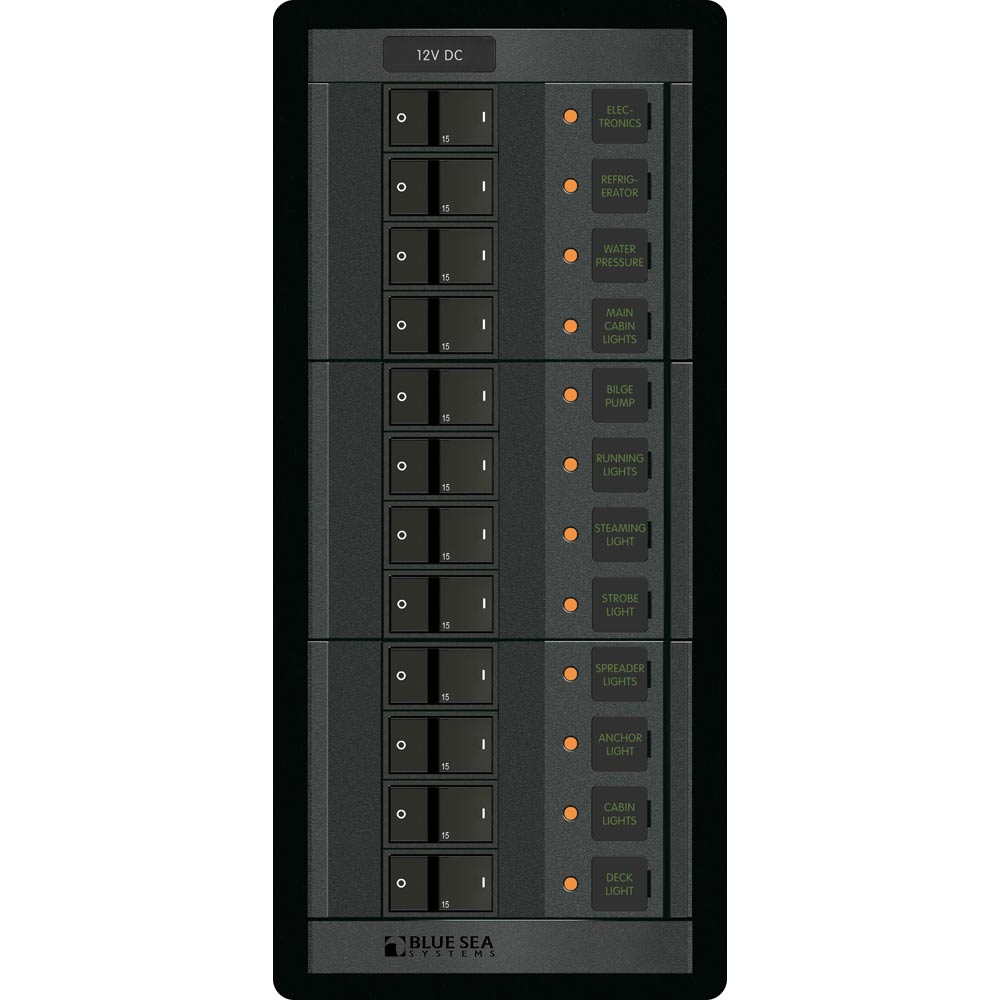

Blue Sea Systems 1223 12 Volt DC 12-Position Electrical Panel with Circuit Breakers and Labels

12 Volt DC 12 Position

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 12

• Nominal Voltage: 12V DC

• Maximum Amperage*: 100A per bus

• Height: 10.75" (273.05mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 4.85lb (2.2kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(12) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1223 is a versatile 12 Volt DC electrical panel designed for reliable power distribution in marine, automotive, or RV applications. It features 12 positions, each equipped with a 15 Ampere circuit breaker, allowing for flexible circuit configurations and enhanced safety. The panel supports between 4 to 32 branch circuits, making it adaptable to various electrical setups. Available options include voltmeters, ammeters, and digital multimeters for comprehensive system monitoring. The package includes the 4205 Square Format Label Set, enabling clear identification of circuits and components for ease of maintenance and troubleshooting. Constructed with durable materials, the panel measures approximately 10.75 inches in height, 4.88 inches in width, and 3 inches in depth, with a total weight of about 4.85 pounds, making it suitable for installation in confined spaces. The maximum amperage per bus is rated at 100A, contingent upon appropriately sized fuses and wiring for your specific application. The product includes (12) A-Series Flat Rocker Circuit Breakers, each rated at 15A, ensuring immediate protection against overloads and short circuits. The panel's robust design and comprehensive features make it an ideal choice for managing electrical systems efficiently and safely. For detailed installation instructions and safety information, refer to the owner’s manual linked here: Owner’s Manual.

Features:

• 12 positions with 15 Ampere circuit breakers for reliable circuit protection

• Supports 4 to 32 branch circuits, offering flexible wiring options

• Available with voltmeters, ammeters, and digital multimeters for system monitoring

• Includes 4205 Square Format Label Set for circuit identification

• Compact design measuring approximately 10.75" high, 4.88" wide, and 3" deep

• Maximum amperage of 100A per bus, dependent on fuse and wire sizing

• Includes twelve 7403 A-Series Flat Rocker Circuit Breakers, single pole, 15A each
