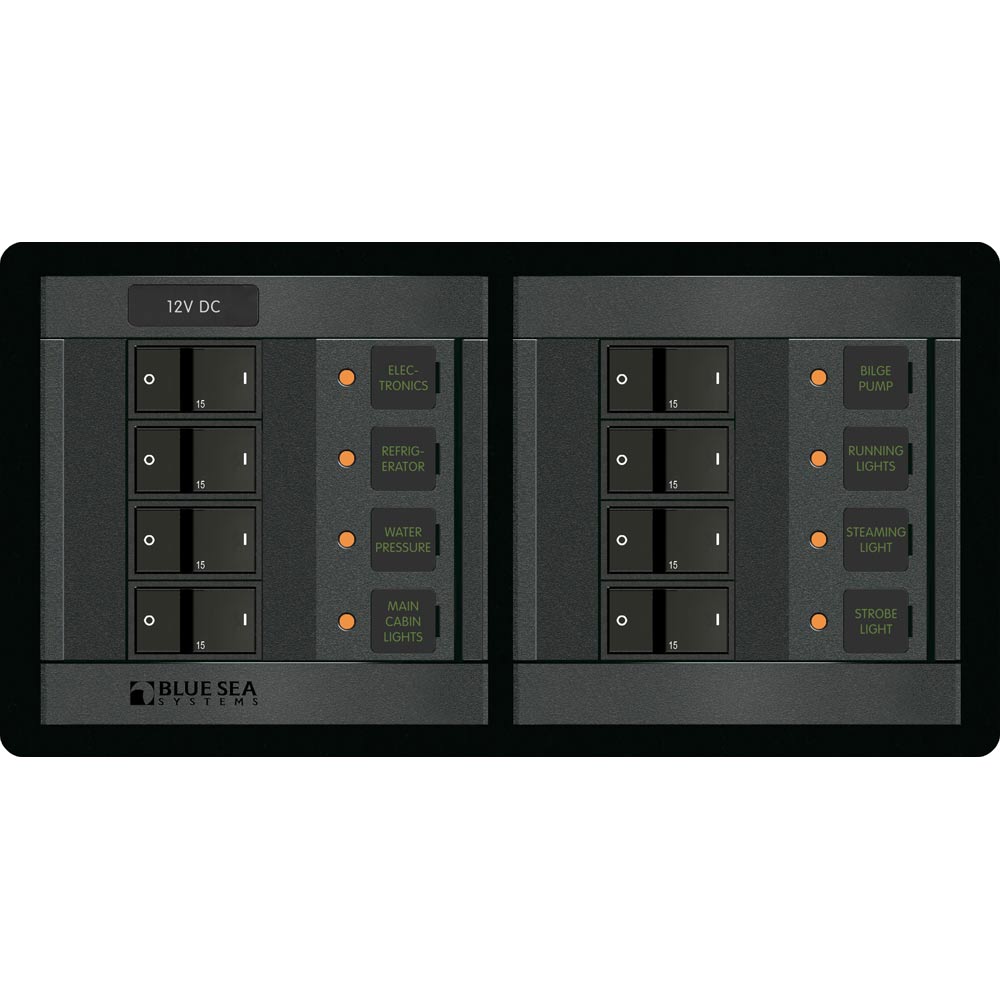

Blue Sea Systems 1225 12V DC 8-Position Horizontal Power Distribution Panel

12 Volt DC 8 Position - Horizontal

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC

• Maximum Amperage*: 100A per bus

• Height: 4.75" (120.65mm)

• Width: 9.25" (234.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 3.84lb (1.74kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1225 is a versatile 12 Volt DC power distribution panel designed for efficient management of electrical circuits in marine, RV, and industrial applications. Featuring eight horizontal positions, this panel accommodates 4 to 32 branch circuits with installed 15 Ampere circuit breakers, providing reliable and customizable power control. Its robust construction supports a maximum amperage of up to 100A per bus when properly fused and wired, ensuring safety and performance in demanding environments. The panel's compact dimensions and lightweight design make installation straightforward without sacrificing durability or functionality.

Equipped with optional meters—including voltmeters, ammeters, and digital multimeters—the 1225 enhances system monitoring and troubleshooting. It includes a comprehensive 4205-Square Format Label Set, allowing for clear circuit identification and easier maintenance. The panel's features make it suitable for complex electrical setups requiring precise circuit management and flexibility. Its user-friendly design supports efficient operation and system oversight, critical for ensuring safety and operational continuity.

Constructed by Blue Sea Systems, this power distribution panel combines high-quality materials and engineering to deliver long-lasting performance. Its modular design facilitates easy upgrades and customization, making it adaptable for various applications. Whether used in marine vessels, RVs, or industrial environments, the 1225 provides a dependable solution for managing multiple electrical circuits in a compact and organized manner. Refer to the included owner's manual for detailed installation and operation instructions, ensuring optimal use of this advanced power management system.

Features:

• Supports 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters for system monitoring

• Includes 4205-Square Format Label Set for circuit identification

• Maximum amperage of 100A per bus when properly fused and wired

• Compact horizontal design suitable for tight installation spaces
