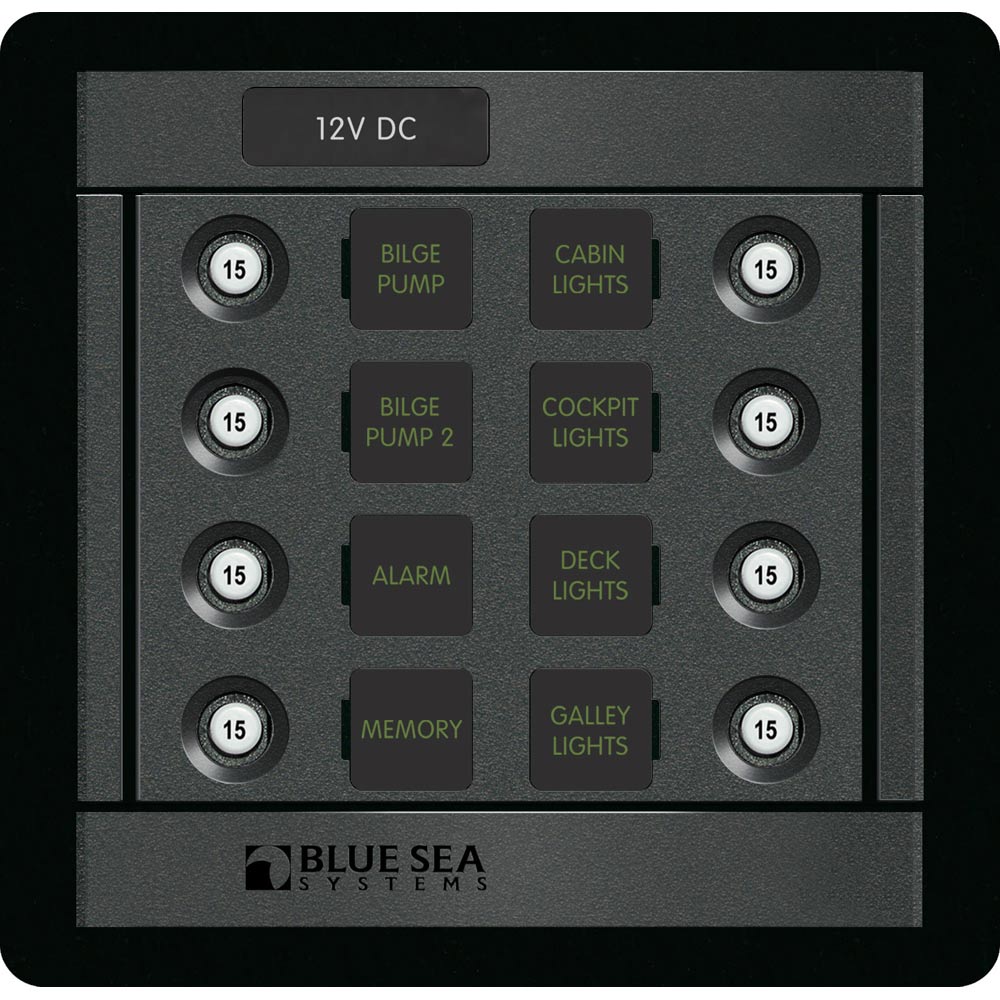

Blue Sea Systems 1450 DC 8-Position Circuit Breaker Panel with Square Labels

DC 8 Position CLB Square

Features:

• High-density circuit protection

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC / 24V DC

• Maximum Amperage*: 90A

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.50" (88.9mm)

• Weight: 1.25lb (0.57kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7056 - Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1450 DC 8-Position CLB Square provides reliable circuit protection for your electrical system. Designed for 12V or 24V DC applications, this panel features high-density circuit protection with a maximum amperage rating of 90A, ensuring your system remains safe under demanding loads. The compact dimensions allow for easy installation in tight spaces, making it ideal for marine, RV, or automotive use. The included 4205-Square Format Label Set allows for clear organization and easy identification of circuits, enhancing safety and maintenance convenience.
Constructed with durable materials, the panel measures approximately 4.75 inches in height, 4.88 inches in width, and 3.50 inches in depth, with a weight of just over half a pound. It includes eight push-button reset circuit breakers rated at 15A each, providing convenient quick reset functionality after trips. The panel's design emphasizes high-density circuit management with a user-friendly layout, making it suitable for both professional and DIY installations.
For comprehensive information on installation and operation, the product manual is available online. Please note that this product contains chemicals known to the State of California to cause reproductive harm, and appropriate safety measures should be followed during handling and installation. Whether you are upgrading an existing system or designing a new one, the Blue Sea Systems 1450 DC Panel offers a robust and organized solution for your electrical needs.

Features:

• High-density circuit protection with a maximum amperage of 90A

• Includes 4205-Square Format Label Set for circuit organization

• Designed for 12V DC and 24V DC systems

• Compact size suitable for tight installation spaces

• Includes eight 15A push-button reset circuit breakers
