Panels with meters include a toggle switch to monitor voltage on up to three battery banks
Includes 4205-Square Format Label Set
Specifications:
Positions: 8
Nominal Voltage: 12V DC
Maximum Amperage*: 80A per bus
Height: 10.75" (273.05mm)
Width: 4.88" (123.95mm)
Depth: 3.50" (88.9mm)
Weight: 3.66lb (1.66kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes: (8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps (8) - 7480 - Rocker Switch SPST - ON-OFF (1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL] (1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

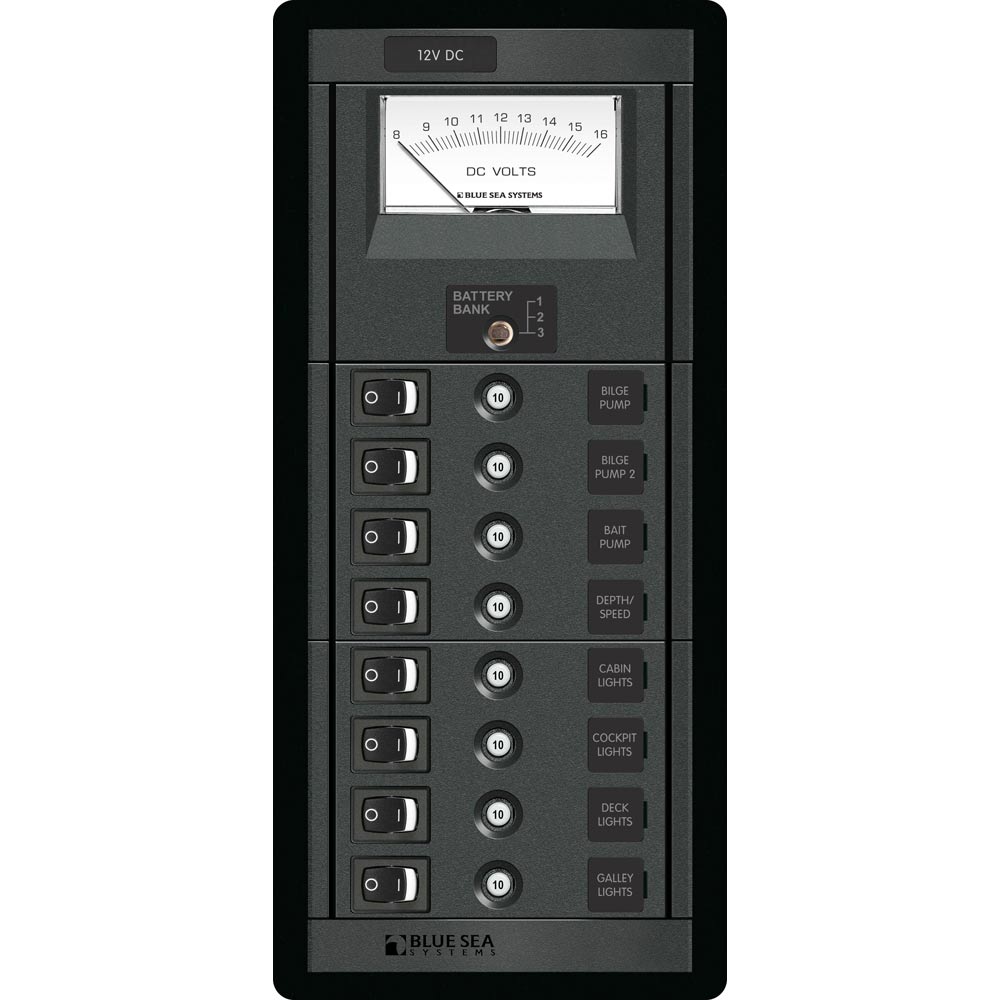

The Blue Sea Systems 1463 8-Position Switch CLB with voltage meter offers a versatile control panel designed for 12V DC systems. Featuring eight switch positions, it allows for efficient management of multiple battery banks or electrical circuits. The panel includes integrated voltmeters and ammeters, enabling users to monitor voltage and current levels directly, ensuring optimal performance and safety. The design incorporates a toggle switch to monitor up to three separate battery banks, making it ideal for marine, RV, or off-grid applications where precise electrical management is essential. The panel comes with a 4205-Square Format Label Set, providing clear labeling options for easy identification of connections and functions.
Features:
Available with voltmeters and ammeters for comprehensive electrical monitoring
Panel includes a toggle switch to monitor voltage on up to three battery banks
Includes a 4205 square format label set for easy identification
8-position switch configuration for flexible circuit management
Maximum amperage of 80A per bus, dependent on fuse and wire sizing
