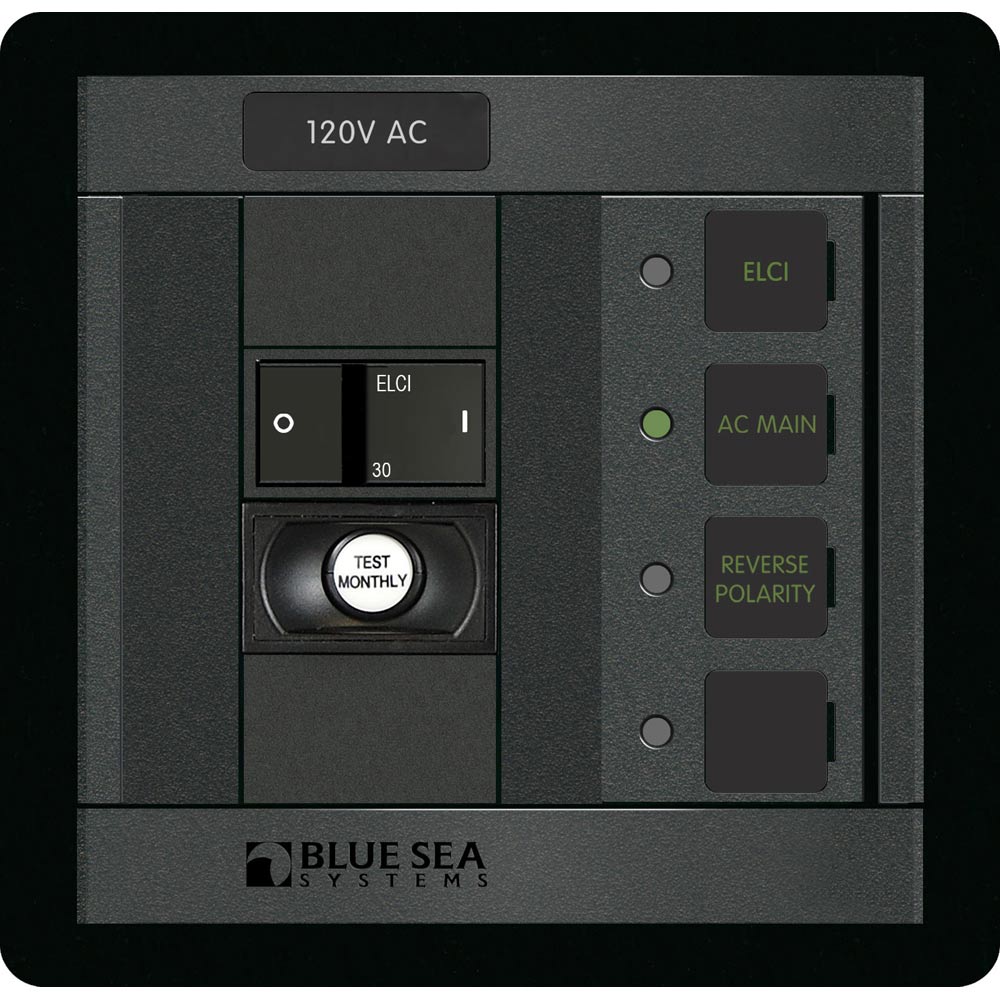

Blue Sea Systems 1502 ELCI Main 30A Double Pole Panel for Marine Shore Power Protection

ELCI Main 30A Double Pole Panel

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• Red " Reverse Polarity" LED

• All circuit label positions are backlit

• "ON" indicating LEDs

Specifications:

• Positions: 1

• Nominal Voltage: 120V AC

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 1.10lb (0.5kg)

Includes:
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1502 ELCI Main 30A Double Pole Panel offers reliable shore power protection for marine applications. This panel features a 30A AC ELCI main residual current circuit breaker with a leakage trip amperage of 30 mA, providing essential safety by detecting ground faults and leakage currents. Designed to meet ABYC E-11 standards, it ensures comprehensive overcurrent and leakage protection for your boat’s shore power system. The panel includes a red "Reverse Polarity" LED indicator to alert you to wiring issues, and all circuit label positions are backlit for easy identification in low-light conditions. The "ON" indicating LEDs provide clear status updates, enhancing operational safety and convenience. This double pole panel is built to withstand marine environments, with a compact design that fits easily into your boat's electrical setup. The panel’s nominal voltage is 120V AC, and it features a sturdy construction with a height of approximately 4.75 inches, a width of about 4.88 inches, and a depth of 3 inches, making it suitable for a variety of marine installations. Included with the panel is the A-Series ELCI Main Circuit Breaker, ensuring a straightforward installation process. This product complies with safety standards and offers peace of mind for boat owners seeking robust electrical protection. Please note the warning regarding chemical exposure related to the product, and consult the owner’s manual available online for detailed installation instructions and safety information. Designed for marine use, the Blue Sea Systems 1502 panel is a dependable choice for safeguarding your boat’s electrical system while ensuring compliance with industry safety standards.

Features:

• One 30A AC ELCI main residual current circuit breaker with 30 mA leakage trip amperage

• Provides overcurrent and leakage protection per ABYC E-11 standards for marine shore power systems

• Red "Reverse Polarity" LED indicator alerts to wiring issues

• Backlit circuit labels for easy identification in low light

• Indicating LEDs display operational status clearly
