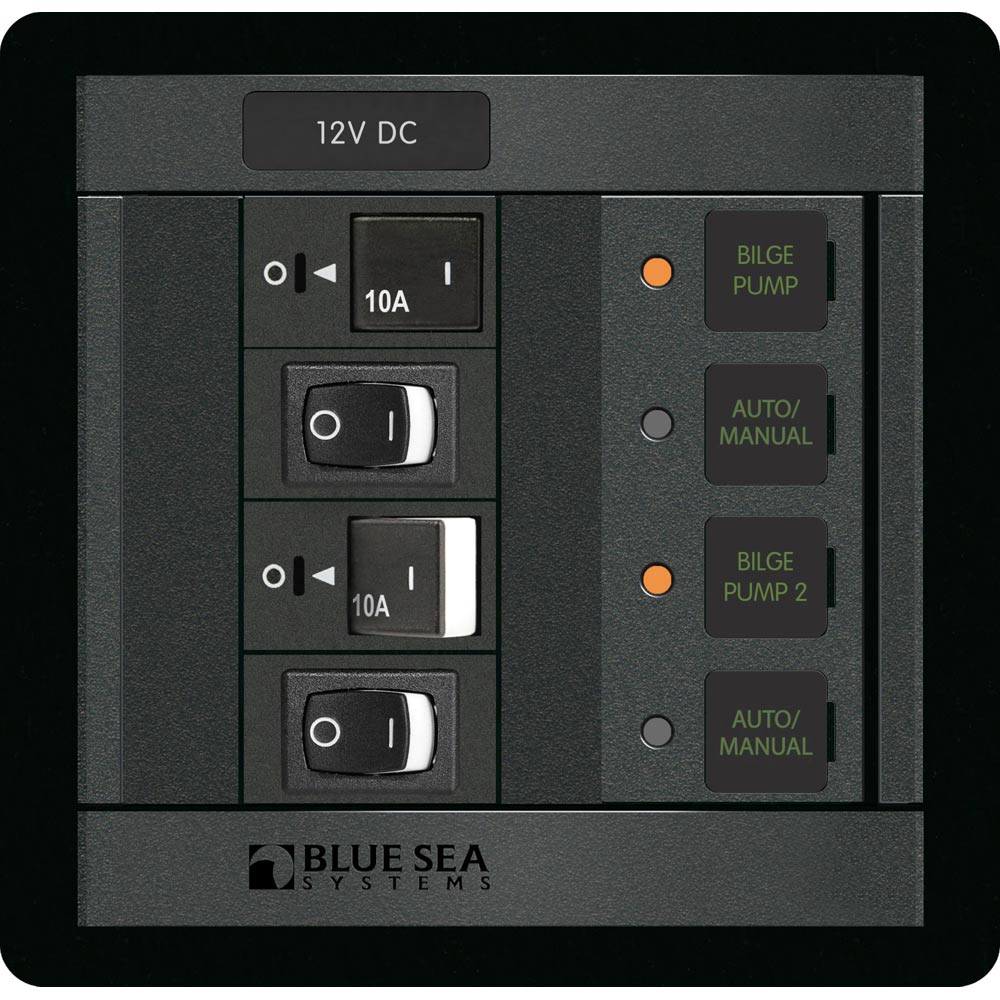

Blue Sea Systems 1522 360 Panel Dual Bilge Pump Control

360 Panel Dual Bilge Pump Control

Controls two bilge pumps
Restricted-off circuit breakers and manual override switches

• On-indicating LED indicates power is available at the bilge pump float switch

• Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch

• Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation

Specifications:

• Nominal Voltage: 12V DC

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

Includes:
(2) - 7427 - A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A
(2) - 7480 - Rocker Switch SPST - ON-OFF

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1522 360 Panel Dual Bilge Pump Control is an essential component for marine bilge management, designed to control two bilge pumps simultaneously. Crafted with durable materials suitable for marine environments, this panel offers reliable operation and ease of use. Its compact dimensions make it suitable for installation in confined spaces, ensuring your bilge system remains protected and functional. The control panel features restricted-off circuit breakers and manual override switches, providing both safety and flexibility during operation.
The panel includes on-indicating LEDs that show when power is available at the bilge pump float switch, offering quick visual confirmation. The restricted-off circuit breakers deliver 24-hour circuit protection for the bilge pump float switches, preventing overloads and potential damage. The manual override switch, equipped with an on-indicating LED, allows you to manually operate the pumps and visually confirm their running status, which is especially useful in emergency or maintenance situations. These features combine to create a robust and user-friendly control solution for marine bilge systems.
Designed for 12V DC systems, the Blue Sea Systems 1522 control panel ensures compatibility with most boat electrical setups. It measures approximately 4.75 inches in height and 4.88 inches in width, fitting seamlessly into standard marine control panels. The package includes (2) 7427 A-Series Restricted Off Flat Rocker Circuit Breakers and (2) SPST ON-OFF rocker switches, providing all necessary components for installation. Built with safety and durability in mind, this control panel is an excellent choice for boat owners seeking dependable bilge pump management. Proper installation and use of this product will help maintain the safety and integrity of your vessel's bilge system, ensuring peace of mind during marine operations.

Features:

• Controls two bilge pumps for comprehensive bilge management

• Restricted-off circuit breakers provide 24-hour circuit protection

• Manual override switch with on-indicating LED for manual pump operation

• On-indicating LEDs show power availability at the float switch

• Compact size suitable for marine control panels

• Includes circuit breakers and switches for easy installation

• Designed for 12V DC marine electrical systems

• Durable construction for marine environment compatibility
