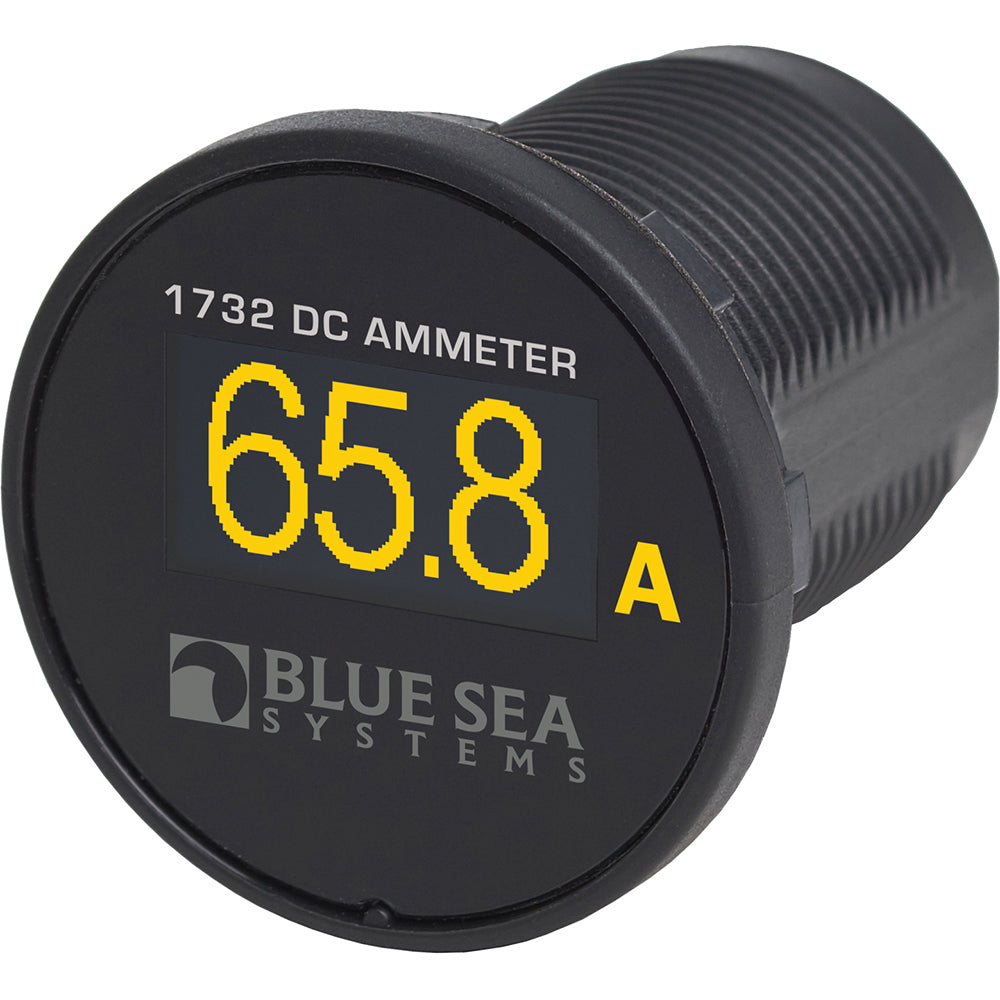

Blue Sea Systems 1732 Mini OLED Ammeter – Compact Waterproof DC Amperage Meter with Bright Display

• Compact size enables mounting in any convenient location

• Reverse polarity protected

• Mounts in a common 1-1/8" hole

• Convenient amperage monitoring

• Monitors -100A to 100A DC

• Positive or negative side wiring

• Meter: Ammeter

• Nominal Voltage: 12V DC / 24V DC

• Resolution: 0.1A

• Intermittent Rating: 110A

• Cranking Rating 30 sec: 175A

• Accuracy: 2%

• Input Voltage Range: 8-36V DC

• Operating Current: 15mA

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1732 Mini OLED Ammeter is a highly versatile and compact device designed for precise monitoring of electrical system current in various applications. Featuring a bright, waterproof OLED screen, this ammeter provides clear visibility in daylight conditions, making it ideal for boat, RV, and automotive use. Its small form factor allows for easy installation in tight spaces, mounting seamlessly in a standard 1-1/8 inch hole. The device supports both positive and negative side wiring, offering flexibility for different wiring configurations. With a measurement range of -100A to 100A DC, it enables users to monitor essential electrical loads effectively, with a resolution of 0.1A for accurate readings. The ammeter is protected against reverse polarity, ensuring durability and reliable operation in challenging environments. Its operating voltage spans from 8V to 36V DC, compatible with typical 12V and 24V systems. The device’s intermittent rating of 110A and cranking rating of 175A for 30 seconds make it suitable for starting and load monitoring, while its 2% accuracy guarantees precise measurement. The low operating current of 15mA ensures minimal power consumption, making it efficient for continuous use. Designed for ease of installation, it mounts in a standard 1-1/8 inch hole, providing a secure fit and straightforward setup. Whether you're monitoring battery charge, alternator output, or other electrical parameters, the Blue Sea 1732 Mini OLED Ammeter offers reliable, real-time data to help maintain and troubleshoot your electrical system effectively. Please note that this product contains chemicals known to cause reproductive harm under California law, and further details can be found at P65Warnings.ca.gov.

Features:

• Bright, daylight-readable OLED screen for clear visibility

• Compact size allows installation in tight spaces

• Mounts in a standard 1-1/8 inch hole for easy setup

• Supports both positive and negative side wiring

• Measures -100A to 100A DC with 0.1A resolution

• Protected against reverse polarity for durability

• Operates with 8-36V DC systems, suitable for 12V and 24V applications

• Intermittent rating of 110A and cranking rating of 175A for 30 seconds

• Low operating current of 15mA for efficient continuous use

• Accurate within 2% for reliable readings
