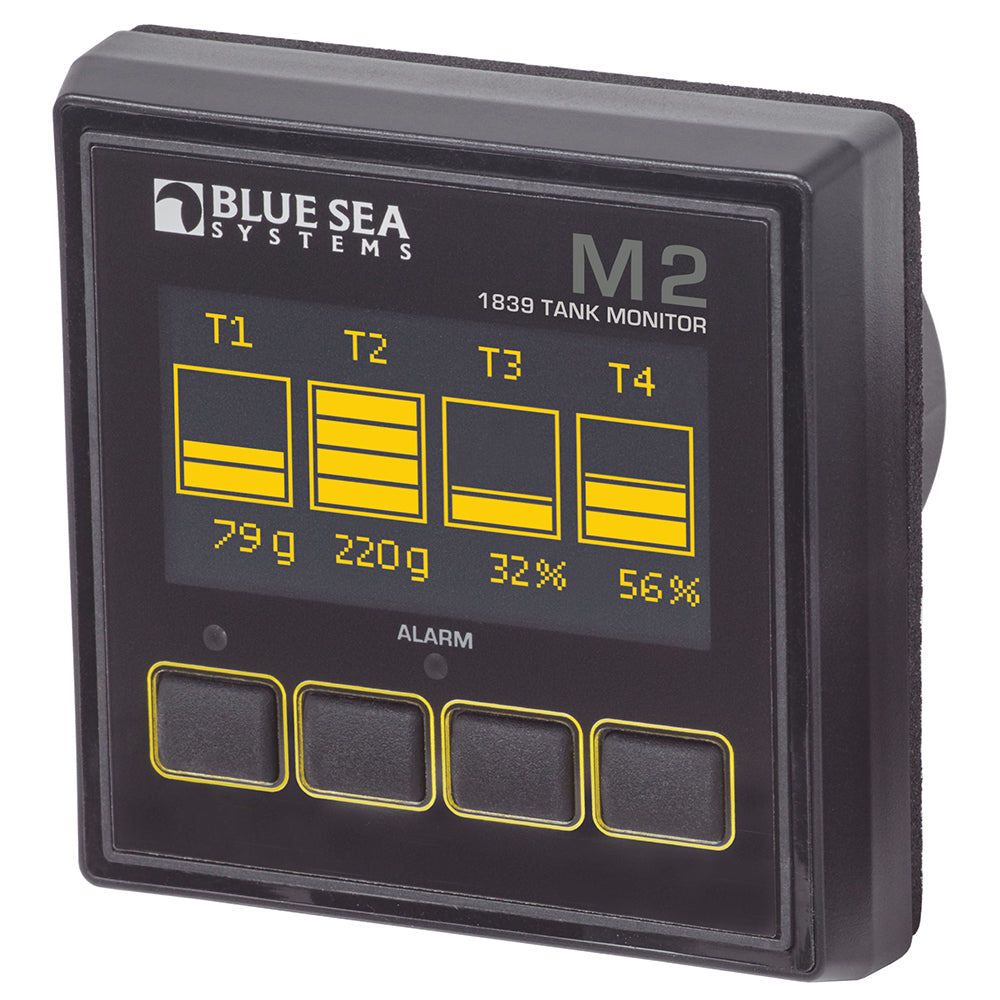

Blue Sea Systems 1839 M2 OLED Tank Monitor for Multiple Tank Monitoring

M2 OLED Tank Monitor

The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.

Features:

• Auto-dimming, bright Organic LED display is easy to read

• 80dB alarm on all models

• Isolated 500mA MOSFET relay

• Includes external DC Shunt or AC Current Transformer when required

• Intuitive tank level monitoring

• Monitor up to 4 tanks

• Auto calibration for unique tank shapes

• Compatible with common sending units

Specifications:

• Meter: Tank

• Function: Monitors tank volume in up to 4 tanks

• Resolution: 1%

• Display Size: 55mm x 28mm

• Input Voltage: 7-70V DC - Variable with voltage, display intensity, and sleep mode

• Range: 0.3W-1.0W

• Tank Alarms: 80dB

• Tank Shapes: Custom shapes, auto calibration

• Weight: 0.25lb (0.11 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1839 M2 OLED Tank Monitor offers a reliable and easy-to-read solution for monitoring up to four tanks simultaneously. Featuring an auto-dimming, bright Organic LED display, it ensures clear visibility in various lighting conditions. This digital monitor provides precise measurement of essential electrical system parameters with a resolution of 1%, allowing for accurate tank volume readings. Its adjustable alarms, including an 80dB alert, notify users of critical levels or system issues promptly. The monitor is compatible with common sending units and incorporates auto calibration to accommodate different tank shapes, including custom configurations, ensuring versatility across applications.

Features:

• Auto-dimming, bright Organic LED display enhances readability in diverse lighting conditions

• 80dB audible alarm alerts users to critical tank levels or system faults

• Isolated 500mA MOSFET external relay enables control of external circuits based on monitored parameters

• Includes external DC shunt or AC current transformer for flexible installation options

• Intuitive tank level monitoring with support for up to four tanks

• Auto calibration feature adjusts to various tank shapes for precise measurement

• Compatible with common sending units to facilitate easy integration
