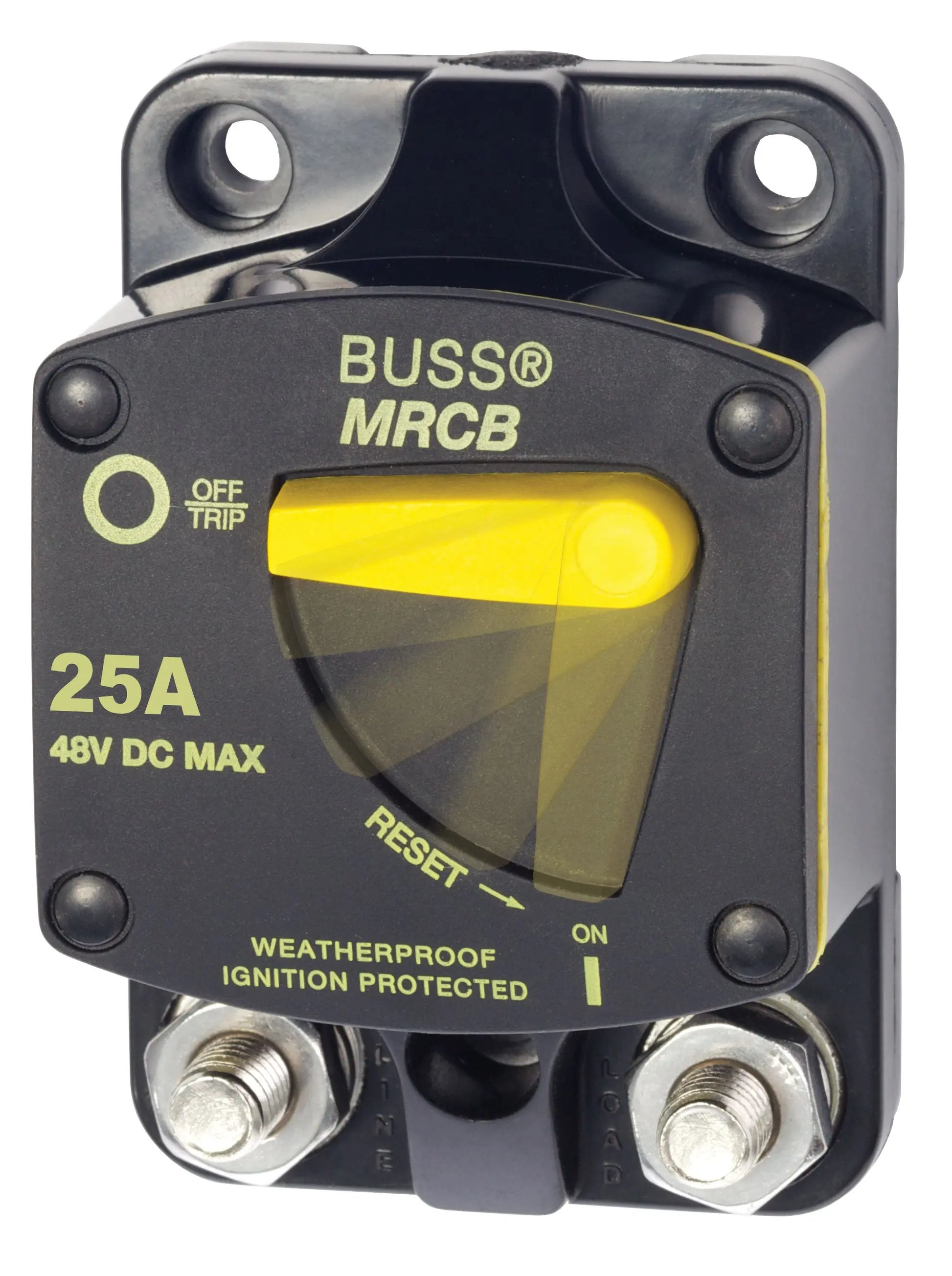

Blue Sea Systems 187-Series 25 Amp Surface Mount Circuit Breaker (Part #7135-BSS)

Blue Sea 187-Series 25 Amp Circuit Breaker Surface Mount

The Blue Sea Systems 187-Series Circuit Breaker model 7135-BSS offers reliable circuit protection combined with convenient switching in a compact design. This 25 amp breaker is ideal for marine and other vehicle applications where space efficiency and safety are priorities. Its waterproof construction ensures durability in harsh environments, and the recessed mounting holes provide a clean, professional appearance. The large, vertically and horizontally oriented lever clearly indicates the trip status, allowing for quick visual confirmation of circuit state. The breaker’s trip-free design prevents it from being held 'ON' during fault conditions, enhancing safety during electrical faults or overloads. Constructed with robust 5/16 M8 terminals, it provides high torque connections and can accommodate heavy gauge wire lugs, making installation straightforward and secure. This circuit breaker meets SAE J1171 external ignition protection standards, making it suitable for installation on gasoline-powered boats, and it is ignition protected for added safety. The thermally responsive bi-metal blade design ensures reliable operation with a maximum voltage rating of 48V DC and an interrupt capacity of 5,000A at 12V, offering robust protection for your electrical system. Note that this device is not intended for high inrush current switching applications, such as as a main power switch during engine startup. Overall, the Blue Sea 187-Series 25 Amp Circuit Breaker combines safety, durability, and ease of use, making it an excellent choice for marine power distribution and other demanding electrical environments.

Features:

• Combines switching and circuit protection into a single device

• Clear, single lever operation for easy status monitoring

• Trip-free design prevents holding 'ON' during faults

• Waterproof construction withstands harsh conditions

• Recessed mounting holes ensure a clean appearance

• Large clearance around terminal studs for heavy gauge wire lugs

• Robust 5/16 M8 terminals enable high torque connections

• Large lever with vertical/horizontal orientation indicates trip status

• Ignition protected and meets SAE J1171 standards for safe installation on gasoline-powered boats
