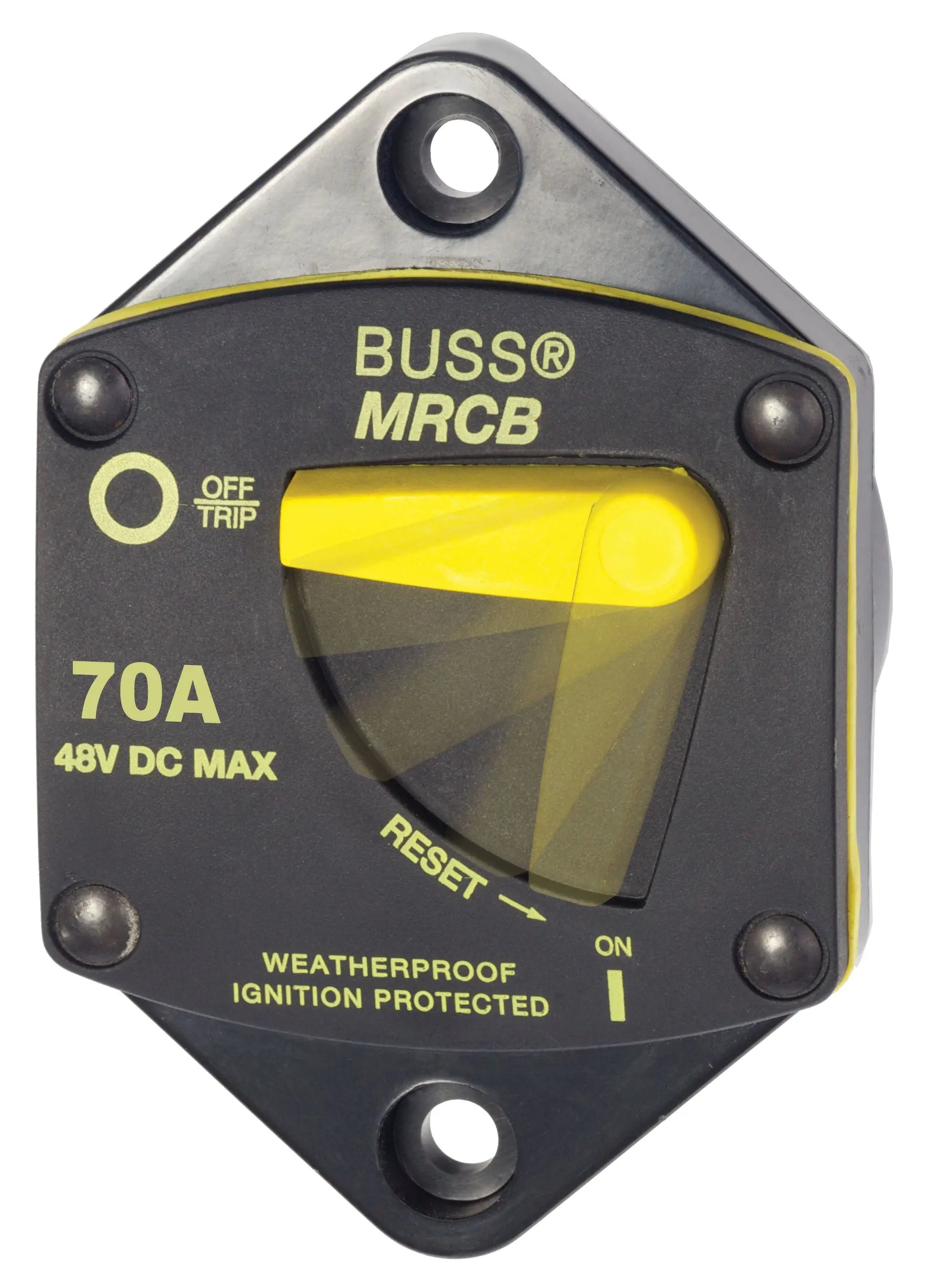

Blue Sea Systems 187-Series 70 Amp Circuit Breaker Panel Mount (Part 7041-BSS)

Blue Sea 187-Series 70 Amp Circuit Breaker Panel Mount

The Blue Sea Systems 187-Series Circuit Breaker (Part 7041-BSS) offers a reliable and integrated solution for circuit protection and switching in marine and industrial applications. Designed for panel mounting, this 70 amp circuit breaker features a robust construction suitable for demanding environments. Its thermally responsive bi-metal blade ensures precise trip capability, safeguarding your electrical system from overloads and faults. The breaker's waterproof design makes it ideal for marine use, providing durability against water ingress and harsh conditions. Its large, easy-to-operate lever with vertical or horizontal orientation ensures clear trip status indication, enhancing operational safety. The recessed mounting holes contribute to a clean appearance, while the large clearance around the terminal studs accommodates heavy gauge wire lugs for secure connections. The high-torque 5/16 M8 terminals are engineered for reliable, high-current connections, supporting up to 75 in-lb torque for optimal performance. This circuit breaker is ignition protected, making it safe for installation aboard gasoline-powered boats. Its maximum voltage rating of 48V DC and interrupt capacity of 5000A at 12V make it suitable for various electrical configurations. Overall, the Blue Sea Systems 187-Series 70 Amp Circuit Breaker is a durable, high-performance component that combines safety, convenience, and reliability for marine and industrial electrical systems.

Features:

• Combines switching and circuit protection into a single device

• Clear, single lever operation for easy trip status monitoring

• Trip Free design prevents holding the switch 'ON' during faults

• Waterproof construction for marine safety and durability

• Recessed mounting holes for a clean, professional appearance

• Large clearance around terminal studs for heavy gauge wire lugs

• High torque 5/16 M8 terminals ensure secure, reliable connections

• Large lever with vertical/horizontal orientation indicating trip status

• Ignition protected for safe installation aboard gasoline-powered boats
