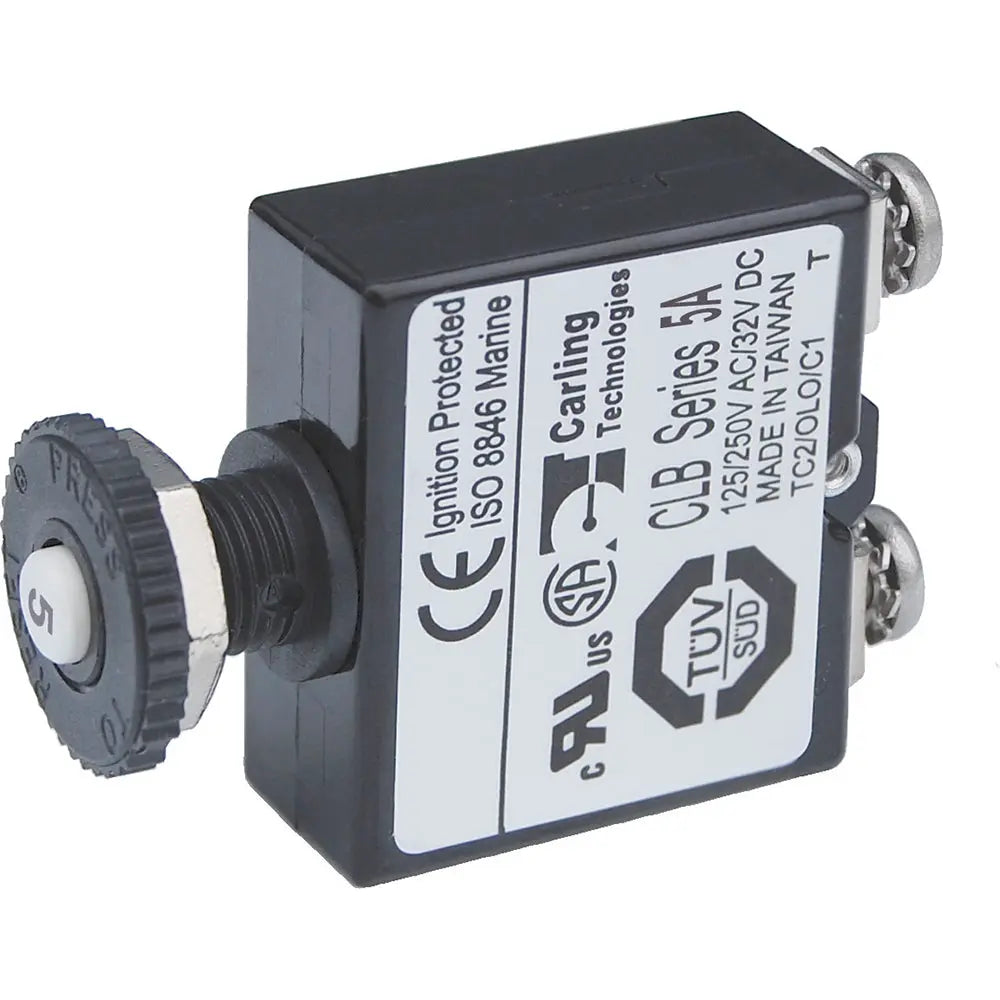

Blue Sea Systems 2130 Push Button Reset Screw Terminal Circuit Breaker - 5 Amps

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 5A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10 C

• Maximum Operating Temperature: 60 C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 2130 is a compact, high-quality circuit breaker designed for reliable 5-amp circuit protection in a variety of marine and industrial applications. Featuring a push-to-reset operation, this thermal trip breaker ensures quick recovery after fault conditions, enhancing safety and ease of use. Its screw terminal design allows for secure connections using #8 screws, making installation straightforward in panel mount configurations. The breaker is rated for a maximum voltage of 32V DC and offers an interrupt capacity of up to 3000 amps at 14.7V, providing robust protection against short circuits and overloads. Its

Features:

• Branch circuit protection suitable for 24-hour circuit applications

• Quick connect terminal style for easy installation in various Blue Sea Systems panel configurations

• Compact design enables high-density circuit protection setups

• Push-to-reset operation for quick and simple recovery after faults

• "Trip Free" design prevents the breaker from remaining "ON" during fault conditions

• Ignition protected for safe installation aboard gasoline-powered boats

• Optional waterproof push button boot protects the breaker in wet environments and resists cracking and discoloration

• Screw terminal connections rated for #8 screws with 6 in-lb torque

• Maximum voltage rating of 32V DC and interrupt capacity up to 3000A at 14.7V
