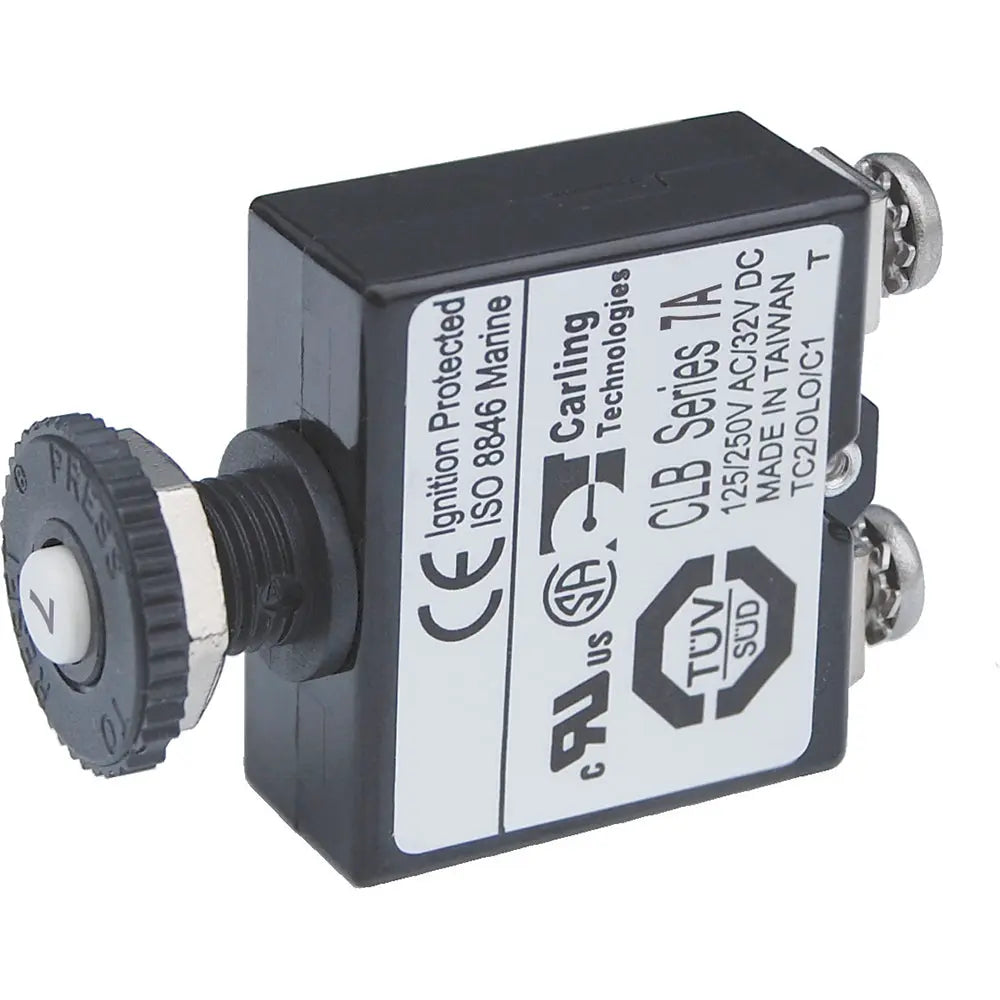

Blue Sea Systems 2131 Push Button Reset Screw Terminal Circuit Breaker, 7 Amps

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 7A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10 C

• Maximum Operating Temperature: 60 C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 2131 is a compact, reliable circuit breaker designed for 12V DC systems, delivering 7 amps of protection. Its push-to-reset feature allows for easy manual reset after trip events, ensuring quick restoration of power without the need for replacement. Ideal for boat, RV, and other automotive applications, this breaker supports high-density circuit configurations thanks to its small footprint. The thermal trip mechanism ensures consistent performance, with a trip capacity of 3000A at 14.7V or 2500A at 28V, providing robust protection against overloads and short circuits.
Constructed with a screw terminal (#8) connection, the breaker is easy to install and secure, with a torque specification of 6 in-lb. It features a
